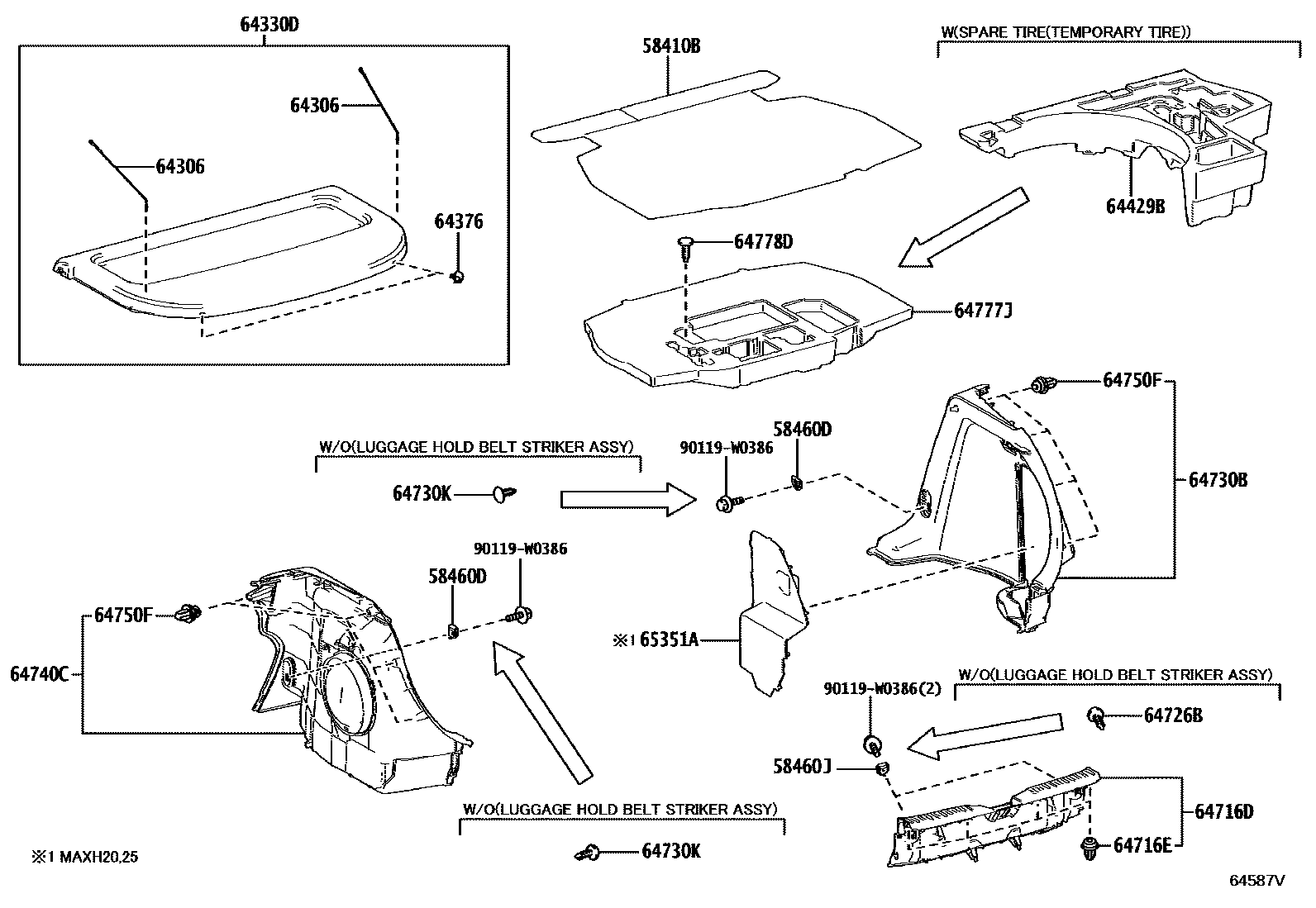

Toyota C-HR — DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58410BBOARD ASSY, DECK

main58410-F4100-C0iMAXH20,25202310

BLACK,TRIM2#

main58410-F4140-C0iZYX20202310

BLACK,TRIM2#

main58410-F4180-C0iMAXH21202401

BLACK,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMAXH2#,ZYX20..E,G,K¥620202310

58460JSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMAXH2#,ZYX20..E,G,K¥620202310

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-F4050iMAXH2#,ZYX20202310

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-F4060-C0iMAXH2#,ZYX20202310

BLACK,TRIM2#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-F4010iMAXH2#,ZYX20202310

64429BBOX, LUGGAGE ROOM

64716DCOVER, DECK TRIM, REAR

main64716-F4100-C0iMAXH2#,ZYX20..E,G,K202310

BLACK,TRIM2#

main64716-F4110-C0iZYX20..N202310

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-W0005iMAXH2#,ZYX20¥80202310

64726BCLIP, DECK REAR TRIM

main90467-W0006-C4iZYX20..N202310

BLACK,TRIM2#

sub90467-W0006¥130

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-F4230-C0iZYX20..K,N202310

BLACK,TRIM2#

main64730-F4250-C0iMAXH2#202310

BLACK,TRIM2#

main64730-F4260-C0iZYX20..E,G202310

BLACK,TRIM2#

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-W0006-C4iZYX20..N202310

BLACK,TRIM2#

sub90467-W0006¥130

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-F4170-C0iMAXH20,25,ZYX20..K,N202310

BLACK,TRIM2#

main64740-F4190-C0iMAXH21202401

BLACK,TRIM2#

main64740-F4230-C0iMAXH20,25,ZYX20..E,G202310

BLACK,TRIM2#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-W0005iMAXH2#,ZYX20¥80202310

64777JCUSHION, SPARE WHEEL

main64777-F4070iZYX20202310

main64777-F4150iMAXH20202310

main64777-F4160iMAXH21202401

main64777-F4170iMAXH25202310

64778DPROTECTOR, SPARE WHEEL

main64778-52160iMAXH20,25,ZYX20¥200202310

65351ACOVER, BATTERY HOLE

main65351-F4020-C0iMAXH2#202310

BLACK,TRIM2#

90119W0386

main90119-W0386

18 parts on this diagram · 2 diagrams in section
