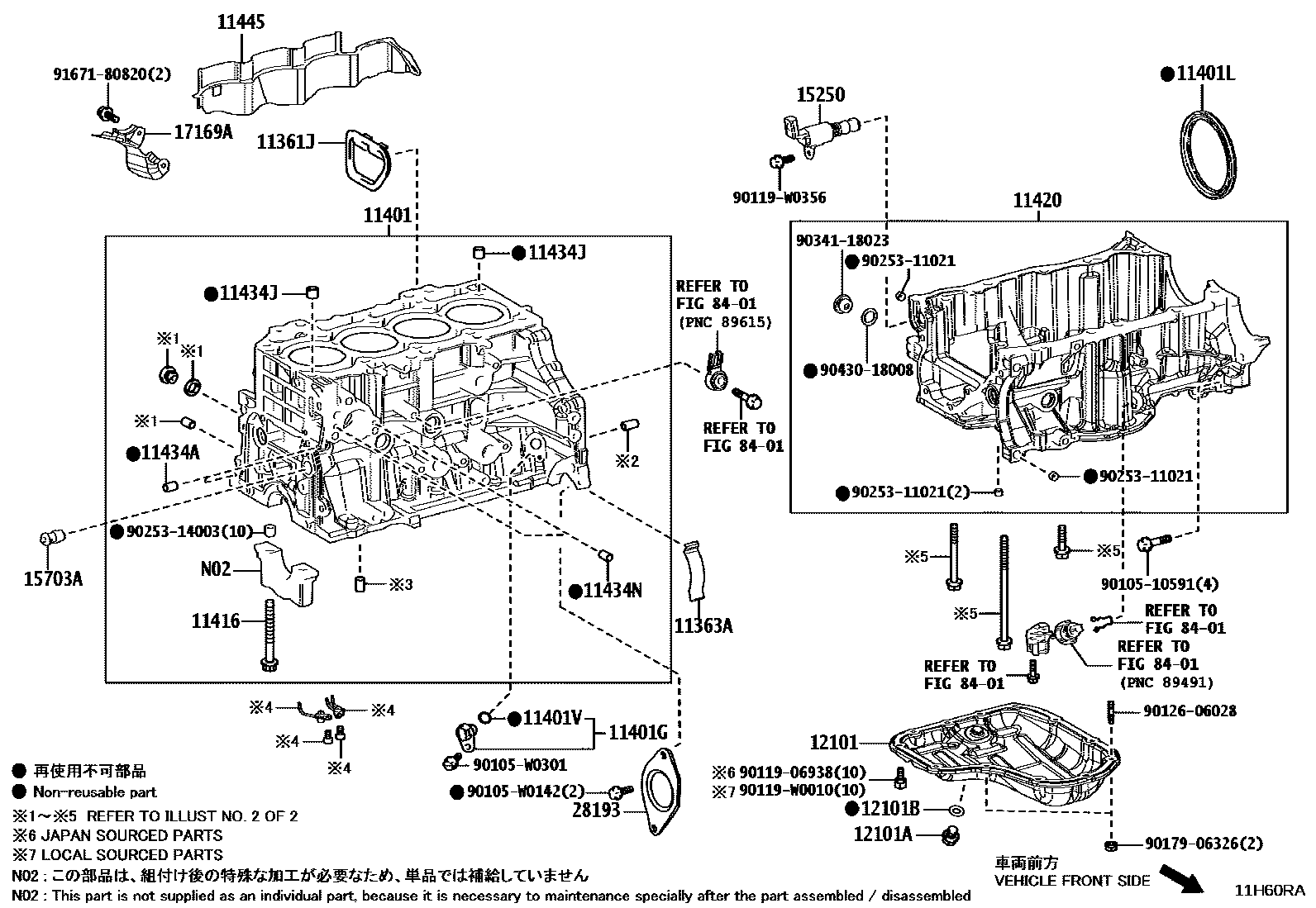

Toyota C-HR — CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
COLOR:GRAY
11401BLOCK SUB-ASSY, CYLINDER
(L)
(J)
11401GSENSOR, CRANK POSITION
11401LSEAL, ENGINE REAR OIL
(J)
(J)
(L)
(L)
11401VO-RING, CRANK POSITION SENSOR
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
12101PAN SUB-ASSY, OIL
(J)
(L)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
15250VALVE ASSY, OIL PRESSURE CONTROL
15703AVALVE SUB-ASSY, OIL NOZZLE
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
8401
9010510591
90105W0142
main90105-W0142
90105W0301
main90105-W0301
9011906938
90119W0010
main90119-W0010
90119W0356
main90119-W0356
9012606028
9017906326
9025311021
9025314003
9034118023
9043018008
9167180820
33 parts on this diagram · 6 diagrams in section
