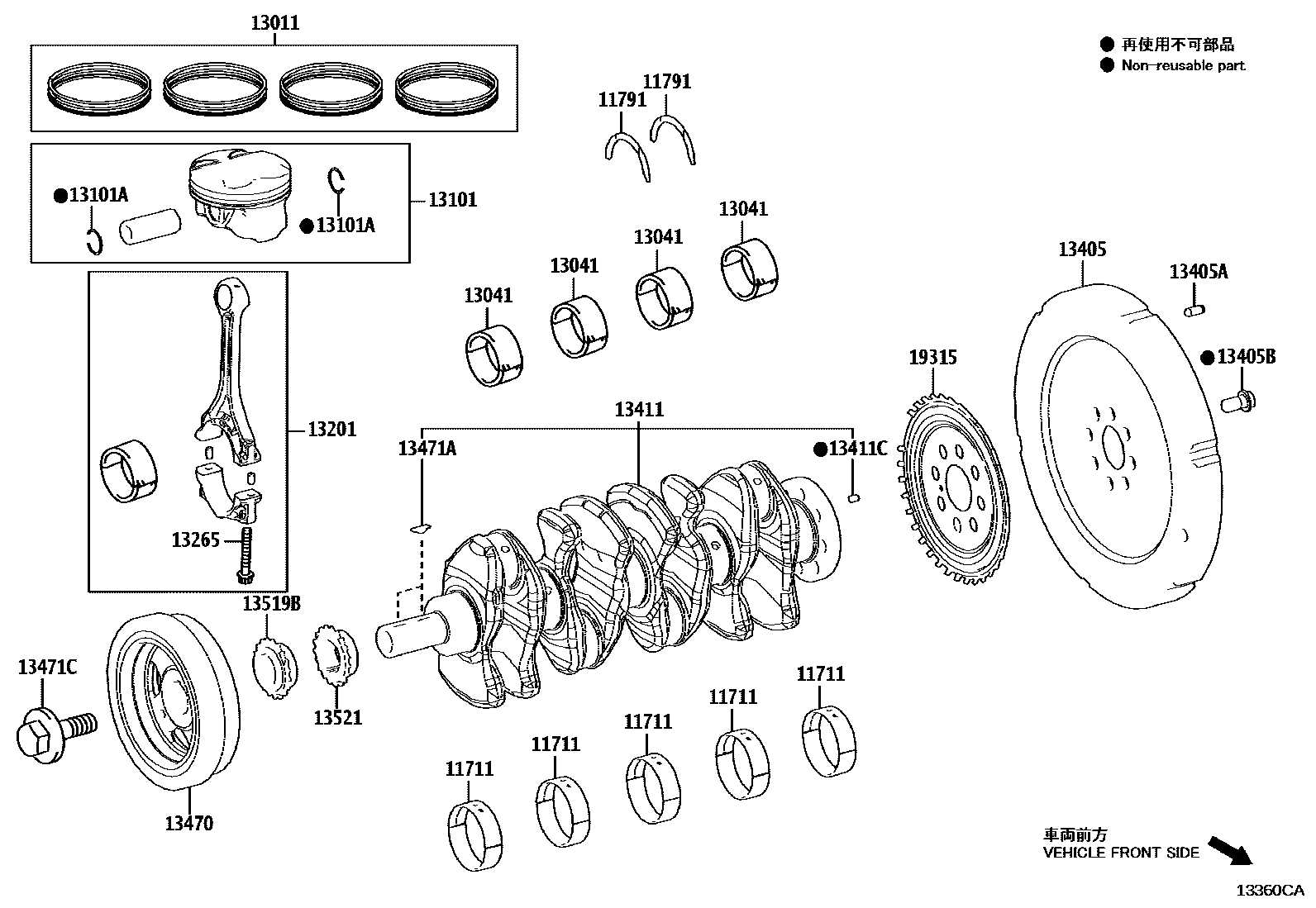

Toyota C-HR — CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK4,(J),REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
13011RING SET, PISTON
STD,AZERBAIJAN SPEC,MADE IN EUROPE
STD,MADE IN EUROPE
STD,UKRAINE SPEC,MADE IN EUROPE
STD,(J)
STD
STD,NEW ZEALAND SPEC
STD,AZERBAIJAN SPEC,MADE IN JAPAN
STD,UKRAINE SPEC,MADE IN JAPAN
STD,MADE IN JAPAN
STD,(L)
13041BEARING, CONNECTING ROD
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,UKRAINE SPEC,MARK=2X
STD,MARK=2X
STD,AZERBAIJAN SPEC,MARK=2X
STD,MARK=2S
STD,NEW ZEALAND SPEC,MARK=2S
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
(J)
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
(J)
(J)
(L)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13470PULLEY ASSY, CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519BSPROCKET, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L),MADE IN TMMNA
(L),MADE IN EUROPE
(J)
(J)
(L)
19315PLATE, CRANK ANGLE SENSOR, NO.1
(J)
(L)
21 parts on this diagram · 3 diagrams in section
