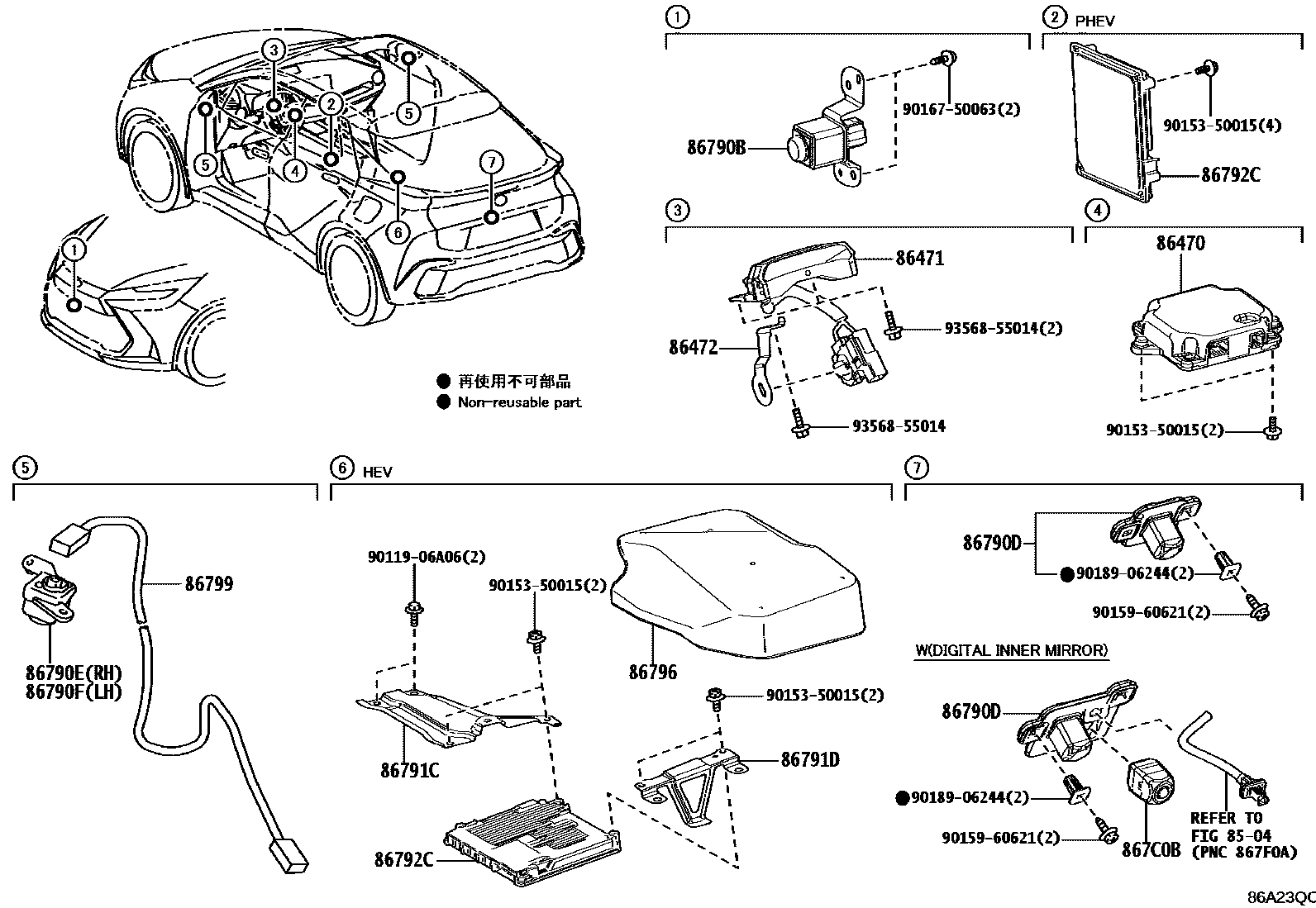

Toyota C-HR — CAMERA & REAR MONITOR DISPLAY
8504
86470COMPUTER ASSY, DRIVER MONITOR
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR CAMERA)
86471CAMERA, DRIVER MONITOR
86472BRACKET, DRIVER MONITOR
86790BCAMERA ASSY, TELEVISION, FR
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
86790DCAMERA ASSY, TELEVISION, RR
PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
86790ECAMERA ASSY, TELEVISION, SIDE RH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
86790FCAMERA ASSY, TELEVISION, SIDE LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
AUDIO-EMV(12.3INCH)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
AUDIO-EMV(12.3INCH) , FOR TURKEY&PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
AUDIO-EMV(12.3INCH)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
AUDIO-EMV(12.3INCH) , FOR TURKEY&PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
86792CCOMPUTER, PARKING ASSIST
AUDIO-EMV(12.3INCH)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
86796COVER, COMPUTER PARKING ASSIST
AUDIO-EMV(12.3INCH)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
AUDIO-EMV(12.3INCH) , FOR TURKEY&PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
86799WIRE, TELEVISION CAMERA
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
867C0BCAMERA ASSY, INNER MIRROR, RR
9011906A06
9015350015
9015960621
9016750063
9018906244
9356855014
20 parts on this diagram · 2 diagrams in section
