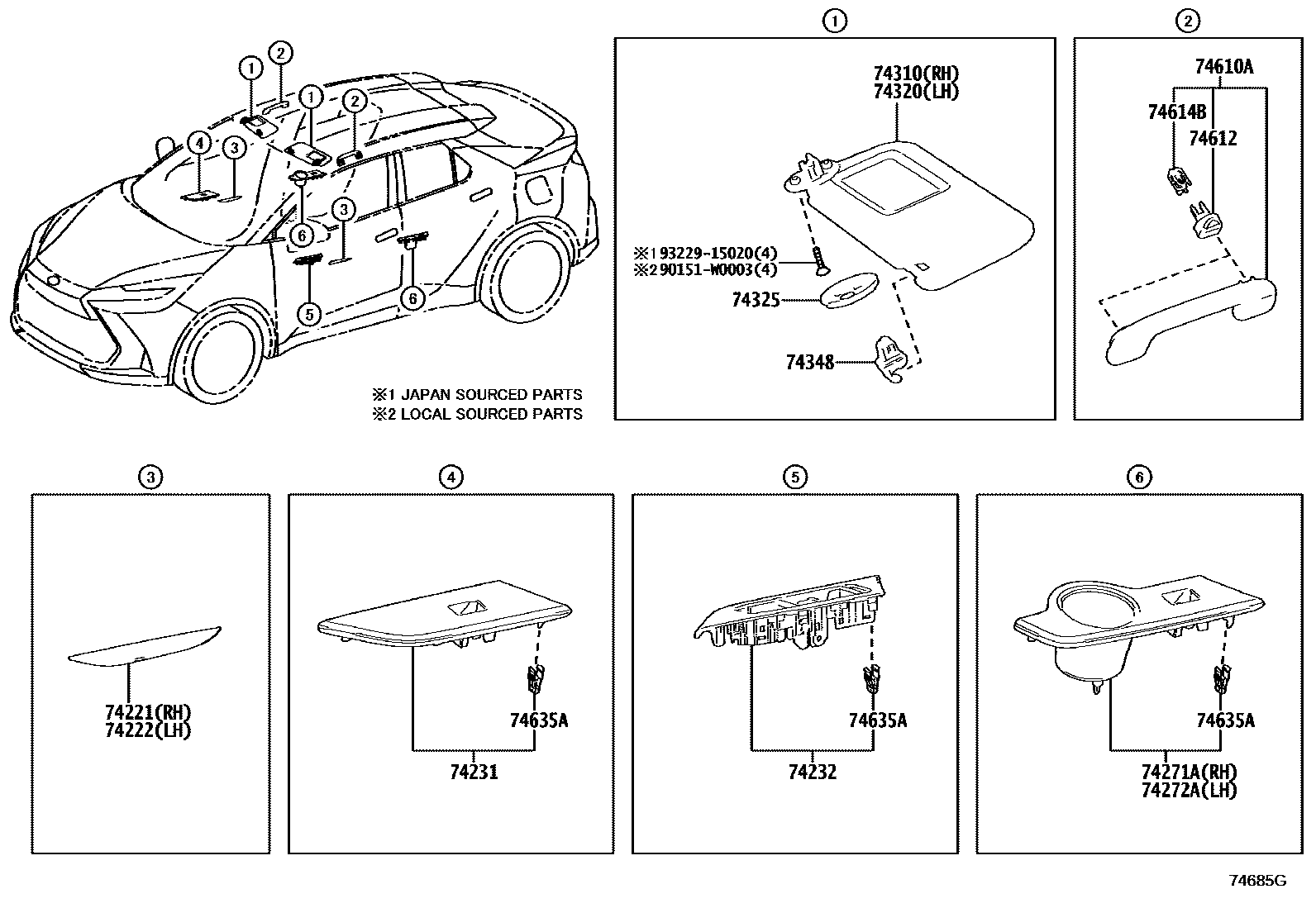

Toyota C-HR — ARMREST & VISOR

0001 1 0002 1

74221COVER, DOOR ARMREST, RH

main74221-F4010iMAXH2#,ZYX20202310

74222COVER, DOOR ARMREST, LH

main74222-F4010iMAXH2#,ZYX20202310

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-F4200iMAXH2#,ZYX20..RHD202310

main74231-F4210iMAXH2#,ZYX20..LHD202310

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-F4090iMAXH2#,ZYX20..LHD202310

main74232-F4210iMAXH2#,ZYX20..RHD202310

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-F4040iMAXH2#,ZYX20202310

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-F4040iMAXH2#,ZYX20202310

74310VISOR ASSY, RH

main74310-F4210-C0iMAXH2#,ZYX20..LHD202310

BLACK,TRIM2#

main74310-F4220-C0iMAXH2#,ZYX20..RHD202310

BLACK,TRIM2#

74320VISOR ASSY, LH

main74320-F4130-C0iMAXH2#,ZYX20..LHD202310

BLACK,TRIM2#

main74320-F4140-C0iMAXH2#,ZYX20..RHD202310

BLACK,TRIM2#

74325COVER, VISOR BRACKET

main74317-02020-C0iMAXH2#,ZYX20202310

BLACK,TRIM2#

74348HOLDER, VISOR

main74348-02030-C0iMAXH2#,ZYX20202310

BLACK,TRIM2#

74610AGRIP SUB-ASSY, ASSIST

main74610-12140-C0iMAXH2#,ZYX20202310

BLACK,TRIM2#

74612COVER, ASSIST GRIP

main74612-47070-C2iMAXH2#,ZYX20202310

BLACK,TRIM2#

74614BPLATE, ASSIST GRIP LOCK

main74614-12020iMAXH2#,ZYX20¥90202310

74635ACLIP

main67773-07020iMAXH2#,ZYX20¥100202310

90151W0003

main90151-W0003

9322915020

main93229-15020¥70

16 parts on this diagram · 2 diagrams in section
