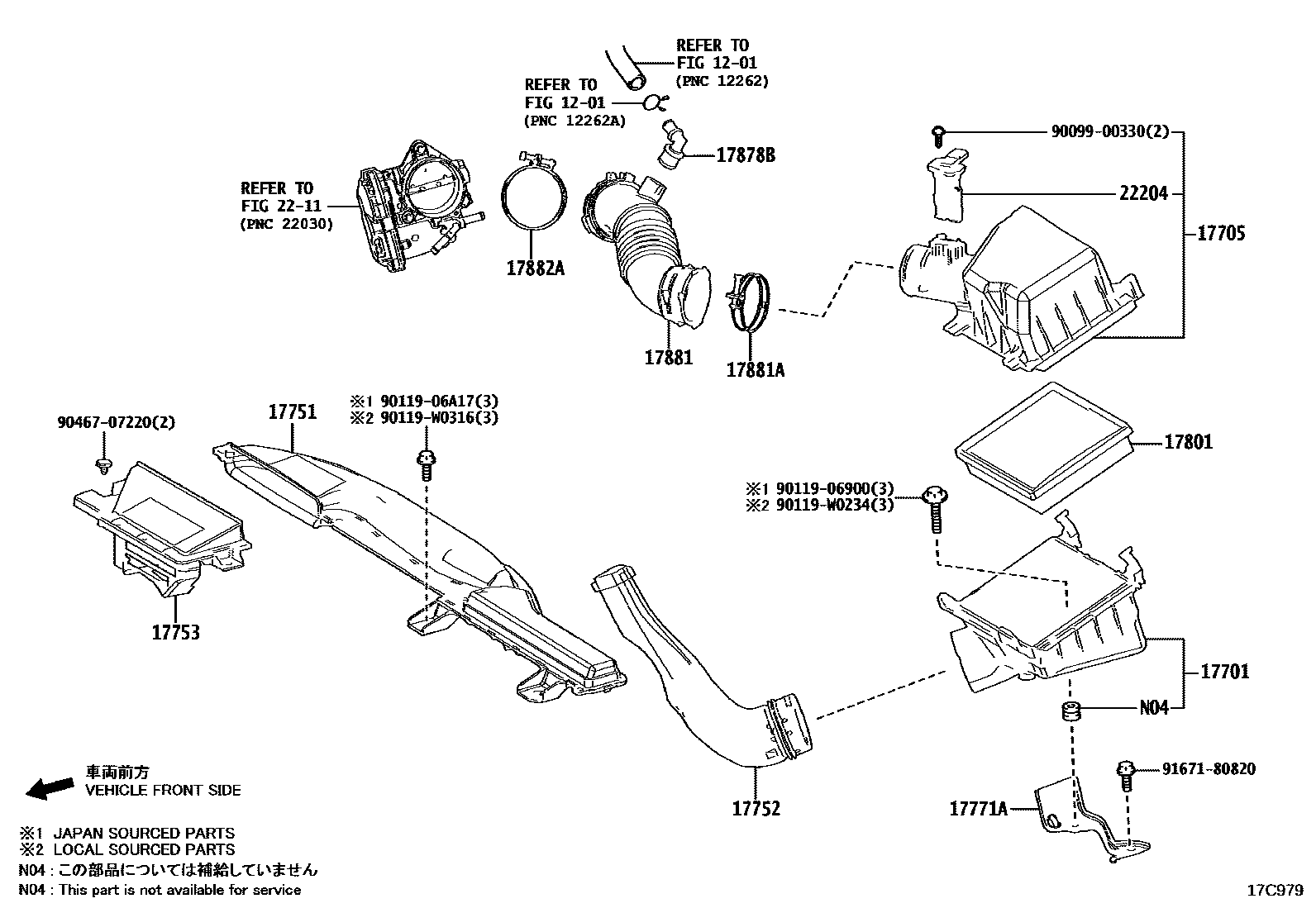

Toyota C-HR — AIR CLEANER

0001 1 0002 1

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T330i2ZR..ZYX20202310

main17701-F2070iM20..MAXH2#202310

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T420i2ZR..ZYX20202310

main17705-F2100iM20..MAXH2#202310

17751INLET, AIR CLEANER, NO.1

main17751-0T340i2ZR..ZYX20202310

main17751-F2130iM20..MAXH2#202310

17752INLET, AIR CLEANER, NO.2

main17752-0T210i2ZR..ZYX20202310

main17752-F2100iM20..MAXH2#202310

17753INLET, AIR CLEANER, NO.3

main17753-0T140i2ZR..ZYX20202310

17771ABRACKET, AIR CLEANER

main17771-F2050iM20..MAXH2#202310

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0M040i2ZR..ZYX20202310

(L)

main17801-21060i2ZR..ZYX20¥2,600202310

(J)

main17801-24040iM20..MAXH2#¥3,000202310

17878BTUBE, VENTILATION

main17878-31020iM20..MAXH2#¥440202310

17881HOSE, AIR CLEANER, NO.1

main17881-0T660i2ZR..ZYX20202310

main17881-F2100iM20..MAXH2#202310

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZR..ZYX20¥240202310

main96111-10730iM20..MAXH2#¥160202310

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800iM20..MAXH2#¥160202310

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010i2ZR..ZYX20¥12,400202310

(J)

main22204-F2010i2ZR..ZYX20202310

(L)

9009900330

main90099-00330¥0

9011906900

main90119-06900¥80

9011906A17

main90119-06A17¥60

90119W0234

main90119-W0234

90119W0316

main90119-W0316

9046707220

main90467-07220¥80

9167180820

main91671-80820¥80

21 parts on this diagram · 2 diagrams in section
