Toyota C-HR (TUP) — WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1SEAT 0007 1CLAMP & BRACKET 0008 1CONNECTOR 1/3 0009 1CONNECTOR 2/3 0010 1CONNECTOR 3/3

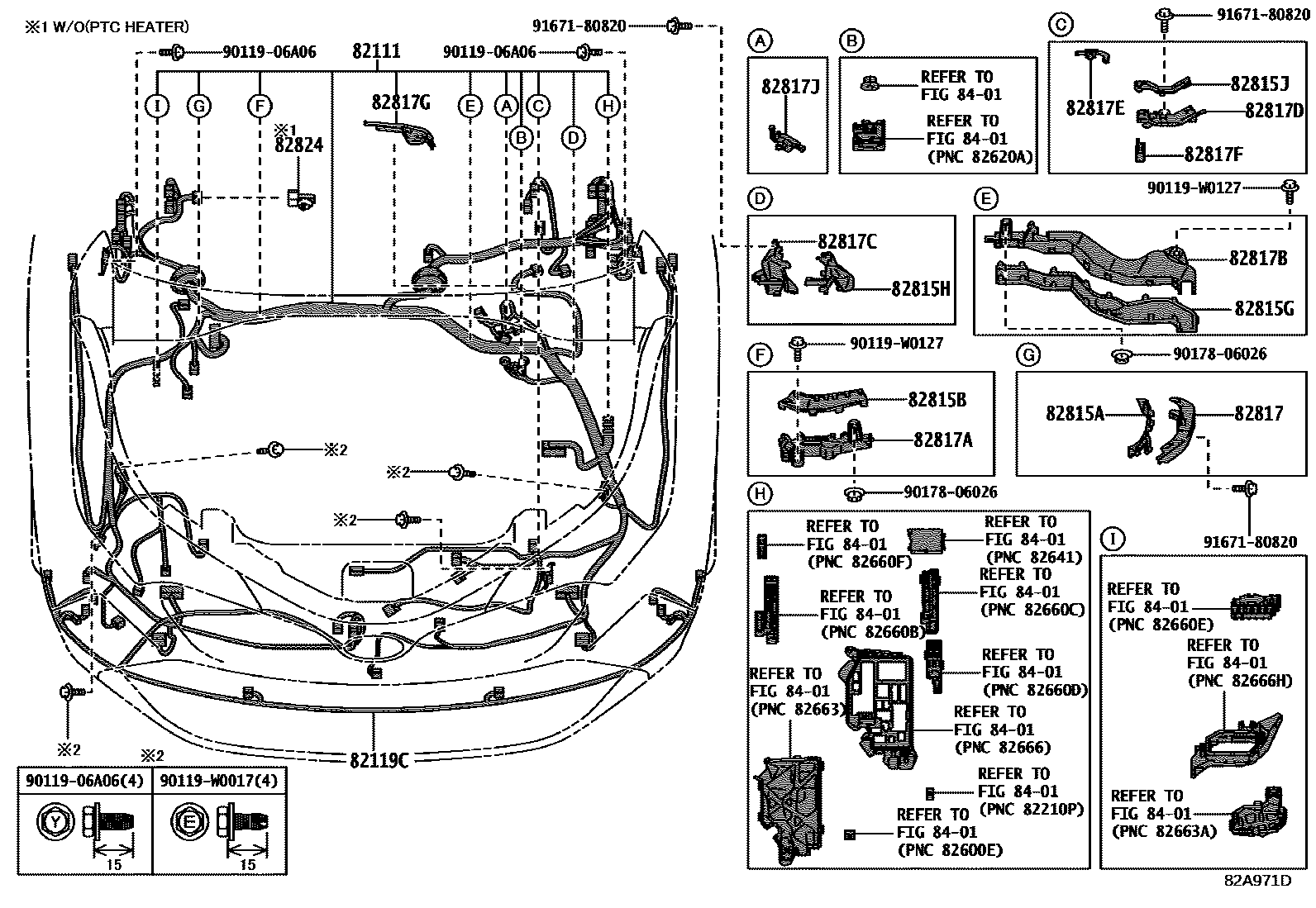

82111WIRE, ENGINE ROOM MAIN

main82111-F4610iZGX10201702-201711

sub82111-F4611

main82111-F4611iZGX10201712-201805

main82111-F4X00iZGX10201805-201909

main82115-F4210iZGX10..D,G201909-202010

main82115-F4230iZGX10..E201909-202010

main82115-F4520iZGX10..D,G202010-202112

main82115-F4521iZGX10..D,G202112-202210

main82115-F4540iZGX10..E202010-202112

main82115-F4541iZGX10..E202112-202210

82119CWIRE, ENGINE ROOM, NO.5

main82119-F4130iZGX10..E201909-202210

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-F4200iZGX10201702-201909

main82815-F4200iZGX10201909-202210

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-F4210iZGX10201702-201909

main82815-F4210iZGX10201909-202210

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-F4220iZGX10201702-201909

main82815-F4220iZGX10201909-202210

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-F4230iZGX10201702-201909

main82815-F4230iZGX10201909-202210

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-F4280iZGX10¥470201702-201909

main82815-F4280iZGX10¥470201909-202210

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-F4230iZGX10201702-201909

main82817-F4230iZGX10201909-202210

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-F4240iZGX10201702-201909

main82817-F4240iZGX10201909-202210

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-F4250iZGX10201702-201909

main82817-F4250iZGX10201909-202210

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-F4260iZGX10201702-201909

main82817-F4260iZGX10201909-202210

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-F4310iZGX10¥700201702-201909

main82817-F4310iZGX10¥700201909-202210

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-F4320iZGX10¥220201702-201909

main82817-F4320iZGX10¥220201909-202210

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-F4470iZGX10¥320201702-201909

main82817-F4470iZGX10¥320201909-202210

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-F4520iZGX10201702-201909

main82817-F4520iZGX10201909-202210

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-F4480iZGX10201702-201909

main82817-F4480iZGX10201909-202210

82824CONNECTOR, WIRING HARNESS

main82824-12530iZGX10¥550201905-201909

main82824-12530iZGX10¥550201909-202210

8401

9011906A06

main90119-06A06¥60

90119W0017

main90119-W0017¥90

90119W0127

main90119-W0127¥80

9017806026

main90178-06026¥80

9167180820

main91671-80820¥80

23 parts on this diagram · 10 diagrams in section
