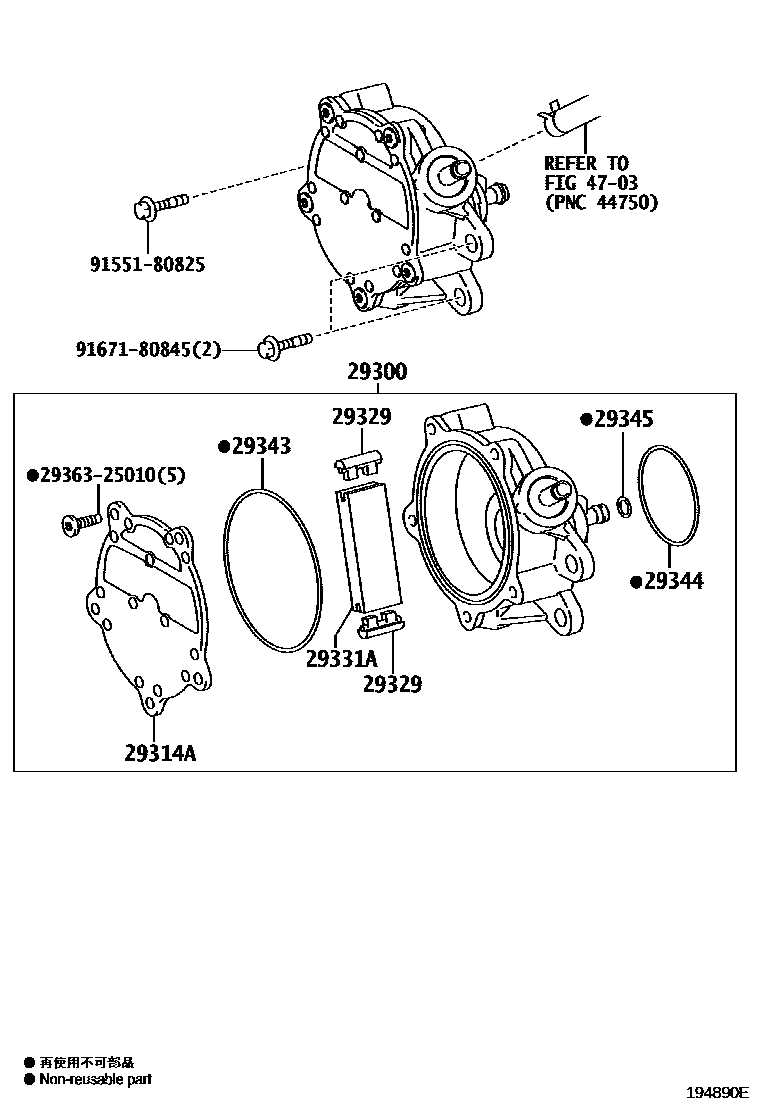

Toyota C-HR (TUP) — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-37011i3ZRFAE..ZGX10¥14,800201702-201909

main29300-37011i3ZRFAE..ZGX10¥14,800201909-202210

29314ACOVER, END

main29314-37011i3ZRFAE..ZGX10¥1,690201702-201909

main29314-37011i3ZRFAE..ZGX10¥1,690201909-202210

29329CAP, VACUUM PUMP VANE

main29329-37010i3ZRFAE..ZGX10¥200201702-201909

main29329-37010i3ZRFAE..ZGX10¥200201909-202210

29331AVANE, VACUUM PUMP

main29331-37010i3ZRFAE..ZGX10¥590201702-201909

main29331-37010i3ZRFAE..ZGX10¥590201909-202210

29343RING, O VACUUM PUMP, NO.1

main29343-22011i3ZRFAE..ZGX10¥210201702-201909

main29343-22011i3ZRFAE..ZGX10¥210201909-202210

29344RING, O VACUUM PUMP, NO.2

main29344-22011i3ZRFAE..ZGX10¥130201702-201909

main29344-22011i3ZRFAE..ZGX10¥130201909-202210

29345RING, O VACUUM PUMP, NO.3

main29345-22011i3ZRFAE..ZGX10¥130201702-201909

main29345-22011i3ZRFAE..ZGX10¥130201909-202210

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

9155180825

main91551-80825¥80

9167180845

main91671-80845¥100

11 parts on this diagram · 1 diagram in section
