Toyota C-HR (TUP) — V-BELT

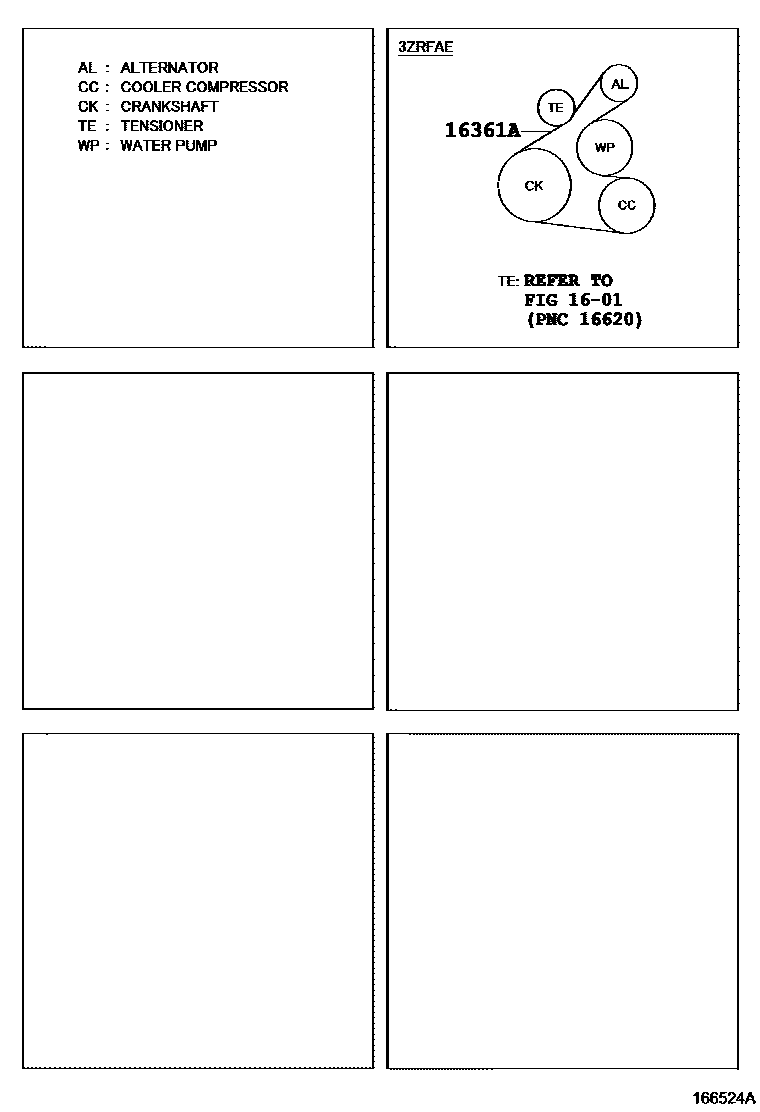

Parts diagram

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-W2046i¥4,690201702-201909

main90916-W2046i¥4,690201909-202210

2 parts on this diagram · 1 diagram in section
