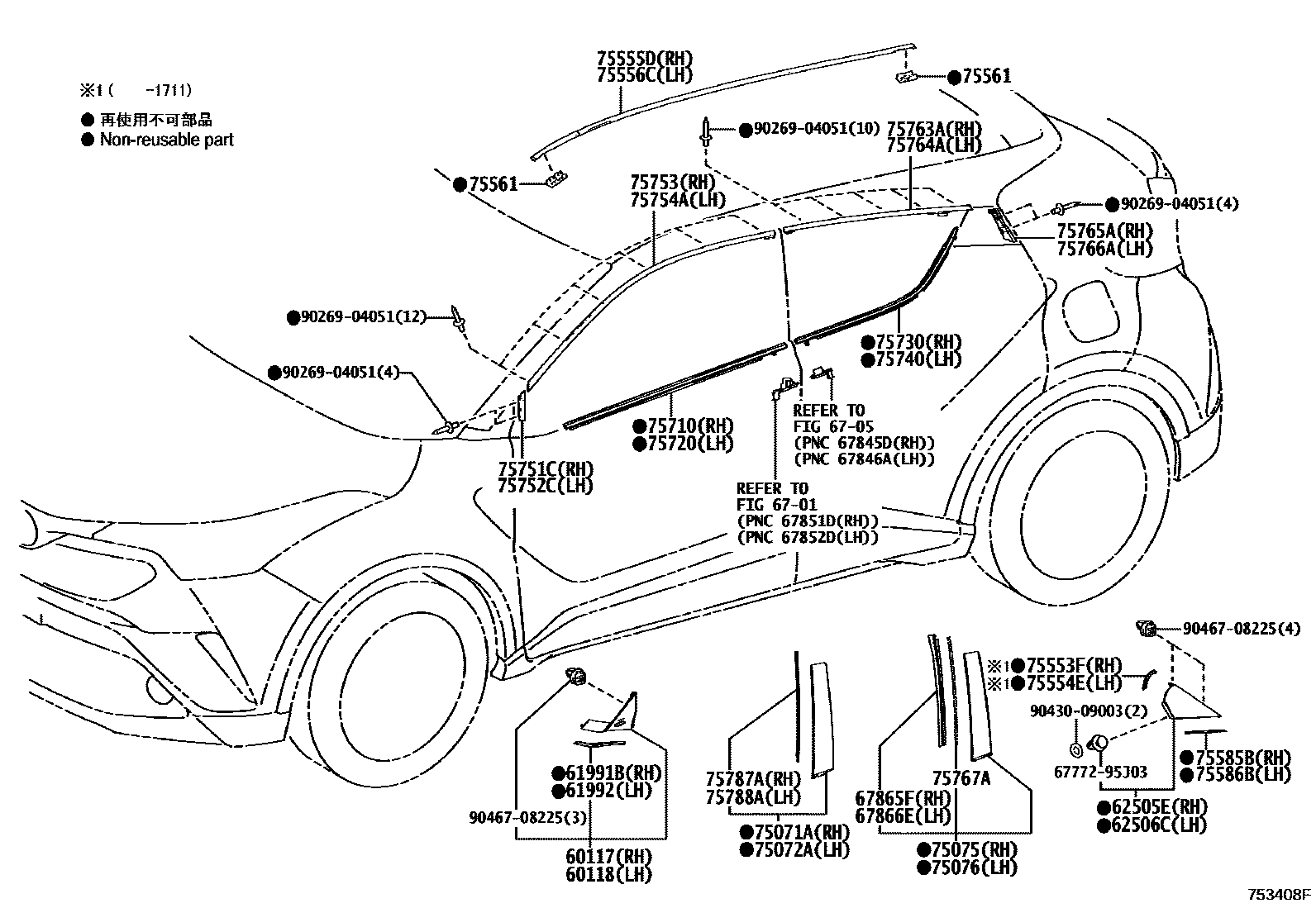

Toyota C-HR (TUP) — SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
61991BPROTECTOR, FRONT PILLAR COVER, RH
61992PROTECTOR, FRONT PILLAR COVER, LH
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
6701
6705
67865FWEATHERSTRIP, CENTER PILLAR UPPER END, RH
67866EWEATHERSTRIP, CENTER PILLAR UPPER END, LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75553FMOULDING, QUARTER GARNISH, RH
75554EMOULDING, QUARTER GARNISH, LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75585BPROTECTOR, REAR PILLAR GARNISH, NO.1
75586BPROTECTOR, REAR PILLAR GARNISH, NO.2
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75767APAD, REAR DOOR MOULDING, NO.1
75787APAD, FRONT DOOR OUTSIDE MOULDING, RH
75788APAD, FRONT DOOR OUTSIDE MOULDING, LH
6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH
9026904051
9043009003
9046708225
40 parts on this diagram · 2 diagrams in section
