Toyota C-HR (TUP) — REAR WIPER

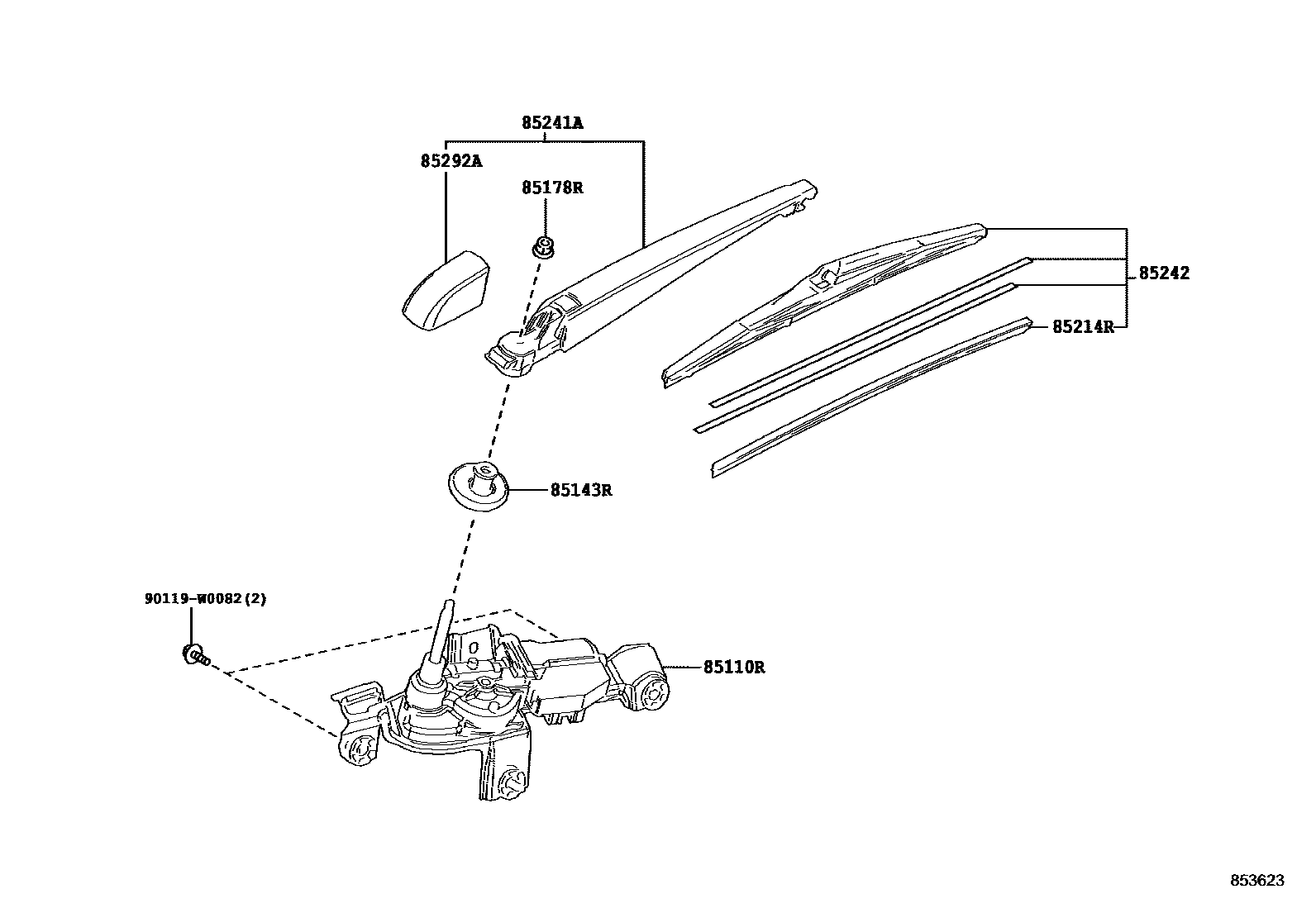

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-F4010i201702-201909

main85130-F4010i201909-202210

85143RGROMMET, REAR WIPER MOTOR

main85143-05060i¥180201702-201909

main85143-05060i¥180201909-202210

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158i¥70201702-201909

main90179-06158i¥70201909-202210

85214RRUBBER, REAR WIPER

main85214-F4030i¥650201702-201909

main85214-F4030i¥650201909-202210

85241AARM, REAR WIPER

main85241-F4020i201702-201909

main85241-F4020i201909-202210

85242BLADE, RR WIPER

main85242-F4010i201702-201909

main85242-F4010i201909-202210

85292ACAP, REAR WIPER ARM HEAD

main85292-F4020i201702-201909

main85292-F4020i201909-202210

90119W0082

main90119-W0082¥80

8 parts on this diagram · 1 diagram in section
