Toyota C-HR (TUP) — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D061iZGX10201702-201809

sub68750-0H010¥2,030

main68750-0H010iZGX10¥2,030201810-202210

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D061iZGX10201702-201809

sub68760-0H010¥2,030

main68760-0H010iZGX10¥2,030201810-202210

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D071iZGX10201702-201809

sub68770-0H010¥2,420

main68770-0H010iZGX10¥2,420201810-202210

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D071iZGX10201702-201809

sub68780-0H010¥2,410

main68780-0H010iZGX10¥2,410201810-202210

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-F4010iZGX10201702-202210

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-F4010iZGX10201702-202210

90105W0087

main90105-W0087¥80

90105W0183

main90105-W0183¥60

90105W0265

main90105-W0265

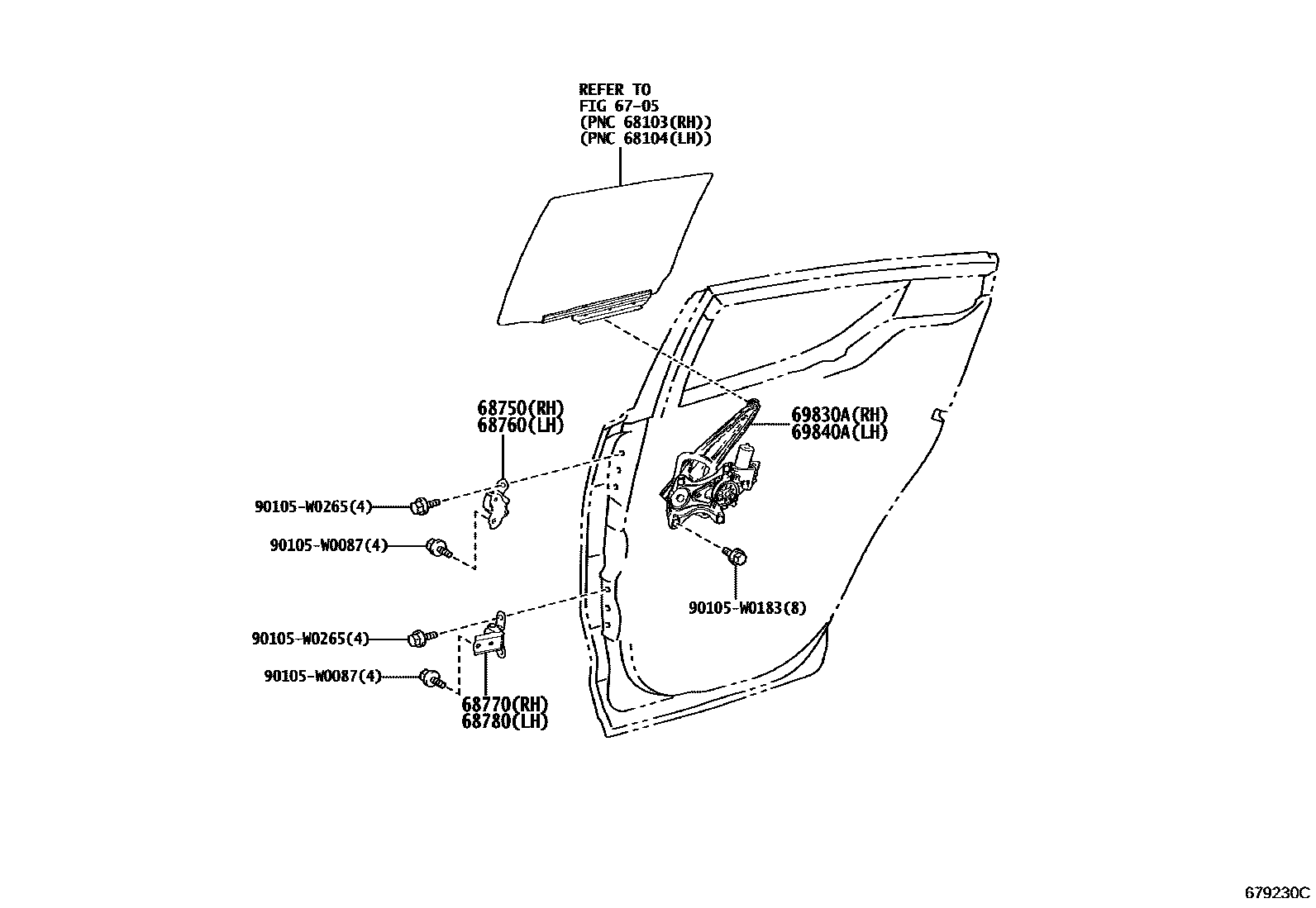

10 parts on this diagram · 1 diagram in section
