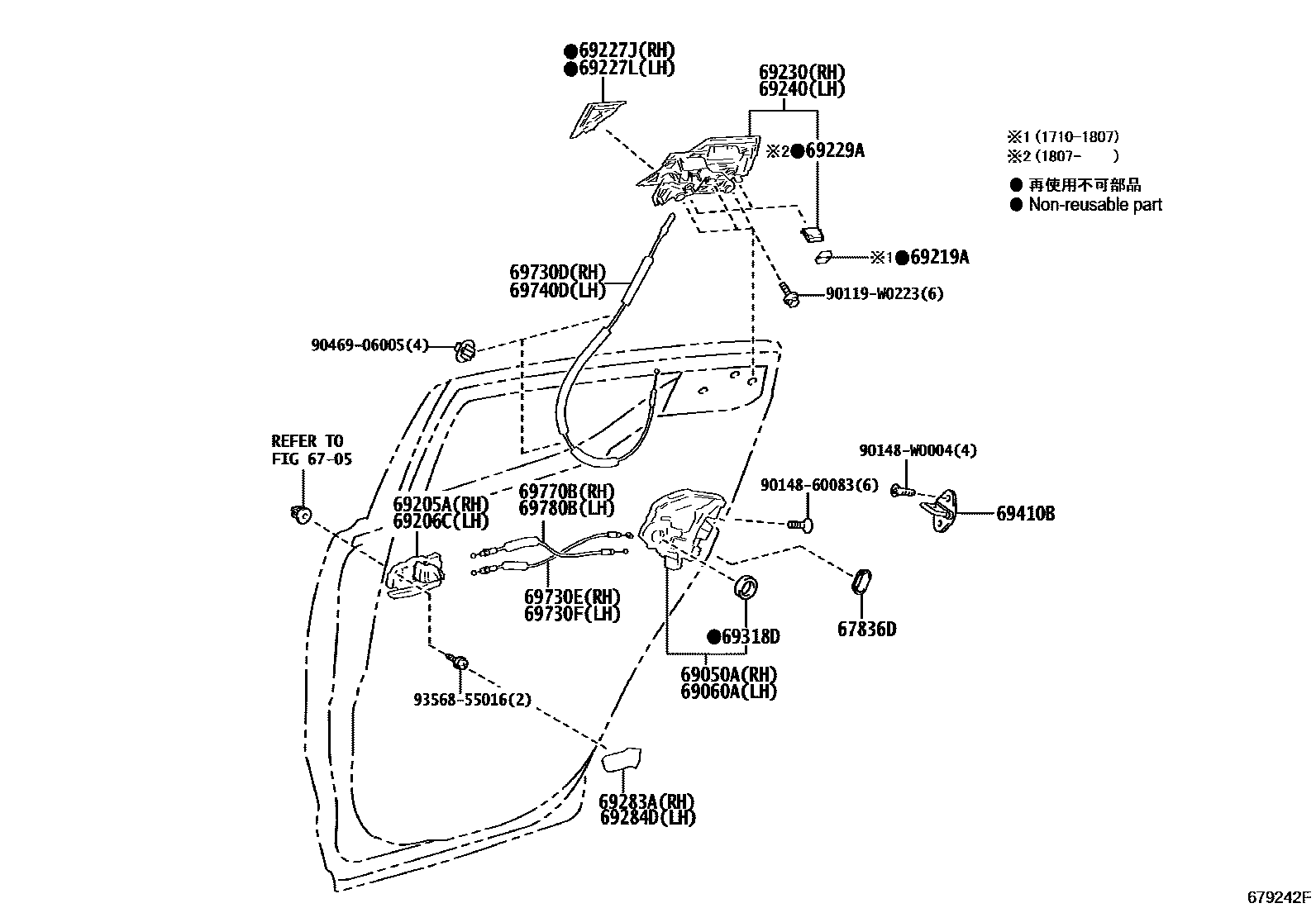

Toyota C-HR (TUP) — REAR DOOR LOCK & HANDLE
6705
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
EU BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM2#,4#,8#
69219ASEAL, REAR DOOR OUTSIDE HANDLE
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK
69229ACAP, DOOR OUTSIDE HANDLE, NO.3
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070 ,2NA
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2VP
GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
METAL STREAM ME,1K0
METAL STREAM ME,1K0 ,2NK
BLACK MC.,209
BLACK MC.,209 ,2TA
RED MC.,2NE ,2NF ,3T3
EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,2TB ,3U5
ORANGE ME.,2TC
OXIDE BRONZE ME.,2TK ,6X1
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,2NH ,8X2
NEBULA BLUE ME.,8X2
NEBULA BLUE ME.,2NG ,8X2
CYAN METALLIC,2RV ,8W9
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
WHITE PEARL CS.,070 ,2NA
PLATINUM WHITE PEARL MC.,089 ,2VP
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
METAL STREAM ME,1K0 ,2NK
METAL STREAM ME,1K0
BLACK MC.,209 ,2TA
BLACK MC.,209
RED MC.,2NE ,2NF ,3T3
EMOTIONAL RED 2,2TB ,3U5
EMOTIONAL RED 2,3U5
ORANGE ME.,2TC
OXIDE BRONZE ME.,2TK ,6X1
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
NEBULA BLUE ME.,2NG ,8X2
NEBULA BLUE ME.,2NH ,8X2
CYAN METALLIC,2RV ,8W9
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730ECABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1
69730FCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
90119W0223
main90119-W0223
9014860083
90148W0004
9046906005
9356855016
27 parts on this diagram · 1 diagram in section
