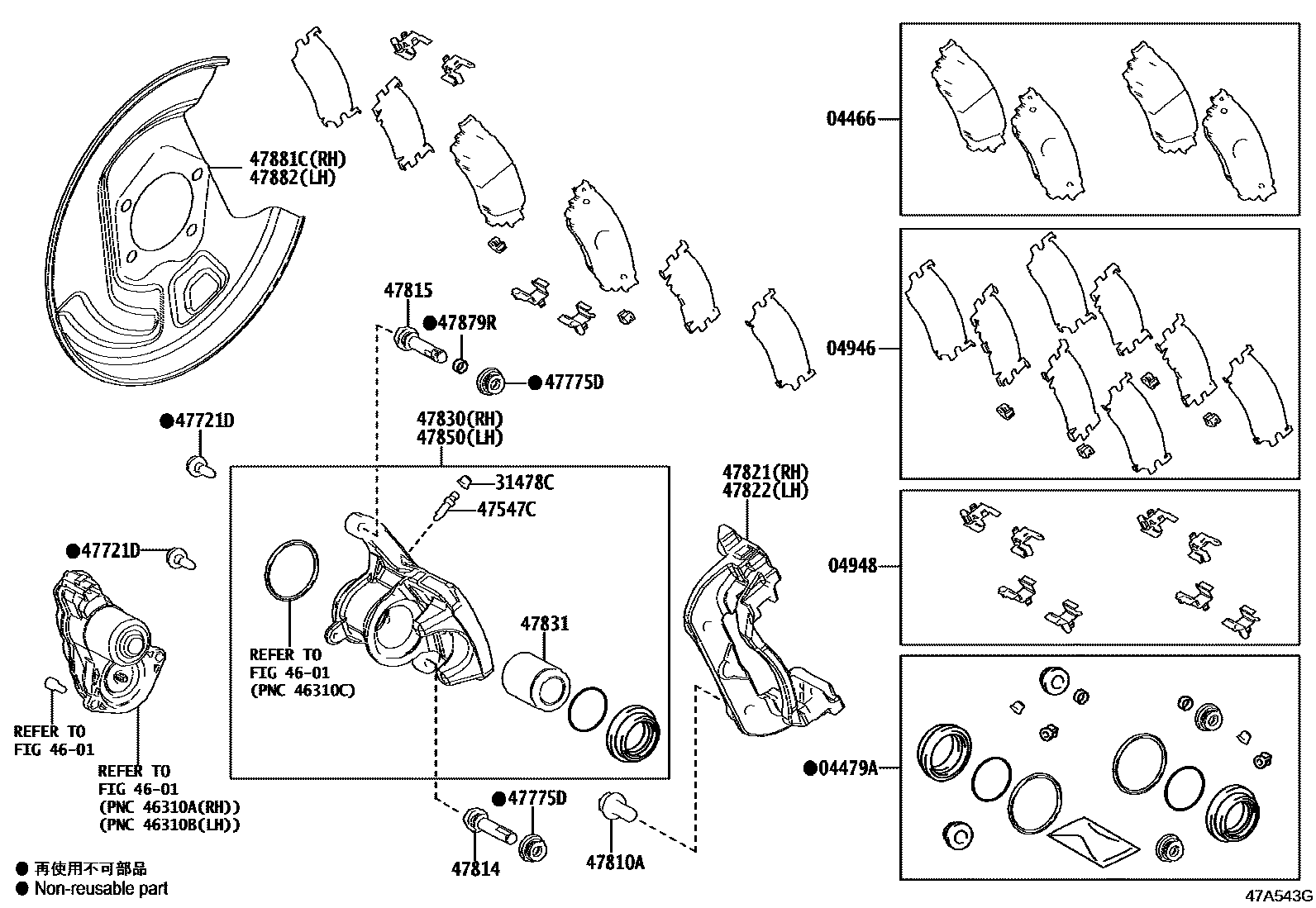

Toyota C-HR (TUP) — REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-10010iZGX10¥6,100201702-201805

MARK AK NS554

main04466-F4010iZGX10¥6,300201805-201909

MARK NBK D6360

main04466-F4010iZGX10¥6,300201909-202210

MARK NBK D6360

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10090iZGX10¥3,200201702-201705

sub04479-10091¥3,200

main04479-10091iZGX10¥3,200201705-201805

main04479-F4010iZGX10201805-201909

main04479-F4010iZGX10201909-202210

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48130iZGX10¥1,780201702-201805

main04946-F4010iZGX10201805-201909

main04946-F4010iZGX10201909-202210

04948FITTING KIT, DISC BRAKE, REAR

main04948-58010iZGX10¥1,040201702-201805

main04948-F4010iZGX10201805-201909

main04948-F4010iZGX10201909-202112

main04948-F4020iZGX10202112-202210

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iZGX10¥160201702-201805

main90069-39027iZGX10201805-201909

main90069-39027iZGX10201909-202210

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iZGX10¥200201702-201805

main47547-F4030iZGX10201805-201909

main47547-F4030iZGX10201909-202210

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iZGX10¥270201702-201805

*8-1.00PX23-12.5

sub90016-AA614¥270

main90069-31417iZGX10201805-201909

*8-1.00PX22-10

main90069-31417iZGX10201909-202210

*8-1.00PX22-10

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-52190iZGX10¥210201702-201705

main47875-33270iZGX10¥70201705-201805

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iZGX10¥130201702-201909

main90105-12174iZGX10¥130201909-202210

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iZGX10¥510201702-201805

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iZGX10¥510201702-201805

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iZGX10¥4,380201702-201805

main47821-F9010iZGX10201805-201909

main47821-F9010iZGX10201909-202210

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iZGX10¥4,380201702-201805

main47822-F9010iZGX10201805-201909

main47822-F9010iZGX10201909-202210

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-10030iZGX10¥28,800201702-201805

main47830-F4030iZGX10201805-201909

main47830-F4030iZGX10201909-202210

47831PISTON, REAR DISC BRAKE

main47831-10030iZGX10¥800201702-201805

main47831-F4030iZGX10201805-201909

main47831-F4030iZGX10201909-202210

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-10030iZGX10¥28,800201702-201805

main47850-F4030iZGX10201805-201909

main47850-F4030iZGX10201909-202210

47879RBUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47769-50010iZGX10¥50201702-201805

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-F4010iZGX10201702-201805

main47881-F4030iZGX10201805-201909

main47881-F4030iZGX10201909-202210

47882COVER, DISC BRAKE DUST, REAR LH

main47882-F4010iZGX10201702-201805

main47882-F4030iZGX10201805-201909

main47882-F4030iZGX10201909-202210

20 parts on this diagram · 2 diagrams in section
