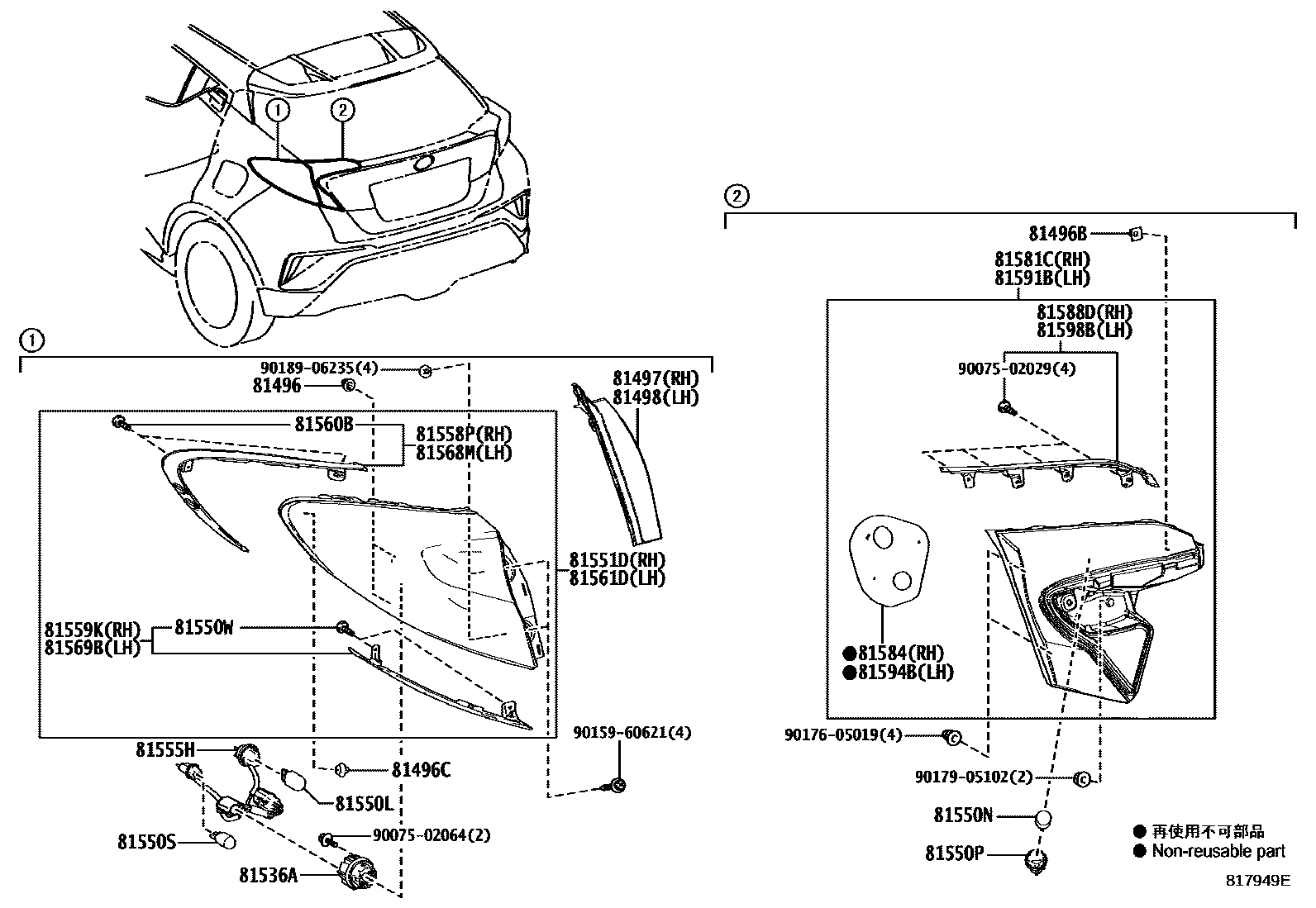

Toyota C-HR (TUP) — REAR COMBINATION LAMP
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81536ALED, REAR COMBINATION LAMP
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81550PSOCKET, BACK UP LAMP
81550SBULB, REAR SIDE MARKER LAMP
12V 5W
81550WSCREW(FOR RR COMBINATION LAMP)
81555HSOCKET & WIRE, REAR COMBINATION LAMP
81558PGARNISH NO.1, REAR COMBINATION LAMP, RH
81559KGARNISH NO.2, REAR COMBINATION LAMP, RH
81560BSCREW(FOR RR COMBINATION LAMP)
81568MGARNISH NO.1, REAR COMBINATION LAMP, LH
81569BGARNISH NO.2, REAR COMBINATION LAMP, LH
81584PACKING, REAR LAMP RH
81588DGARNISH, REAR LAMP, RH
81594BPACKING, REAR LAMP LH
81598BGARNISH, REAR LAMP, LH
9007502029
9007502064
9015960621
9017605019
9017905102
9018906235
31 parts on this diagram · 1 diagram in section
