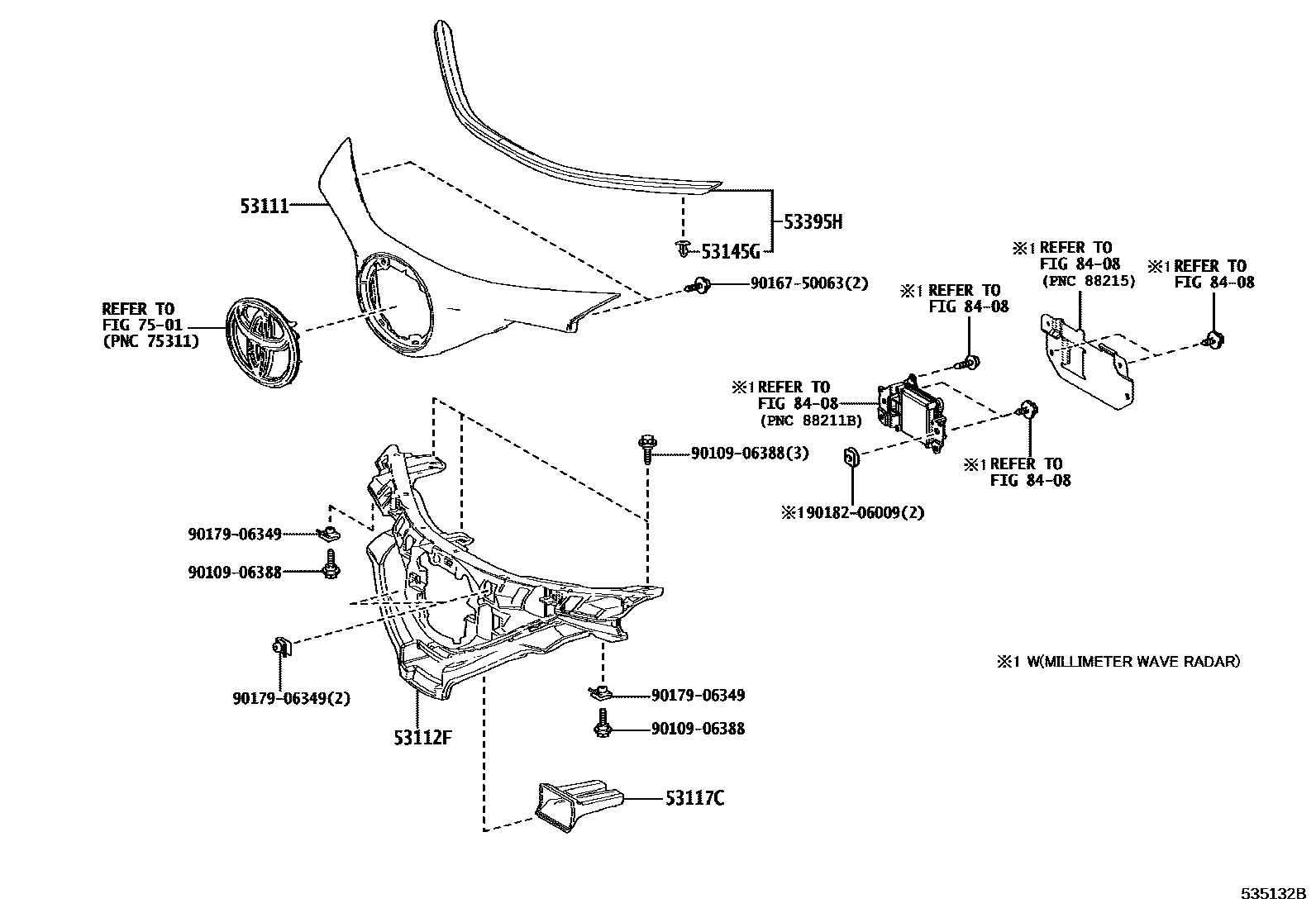

Toyota C-HR (TUP) — RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-F4901iZGX10201702-201909

PAINT REQ.

53112FGRILLE, RADIATOR, INSIDE

main53112-F4010iZGX10201702-201909

main53112-F4070iZGX10201909-202010

main53112-F4080iZGX10202010-202210

53117CRETAINER, RADIATOR GRILLE, NO.1

main52521-F4010iZGX10201702-201909

main52521-F4010iZGX10201909-202210

53145GCLIP, RADIATOR GRILLE

main53145-60030iZGX10¥80201702-201909

main53145-60030iZGX10¥80201909-202210

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-F4010iZGX10201702-201909

main53395-F4070iZGX10201909-202210

7501

8408

9010906388

main90109-06388¥70

9016750063

main90167-50063¥60

9017906349

main90179-06349¥180

9018206009

main90182-06009¥100

11 parts on this diagram · 2 diagrams in section
