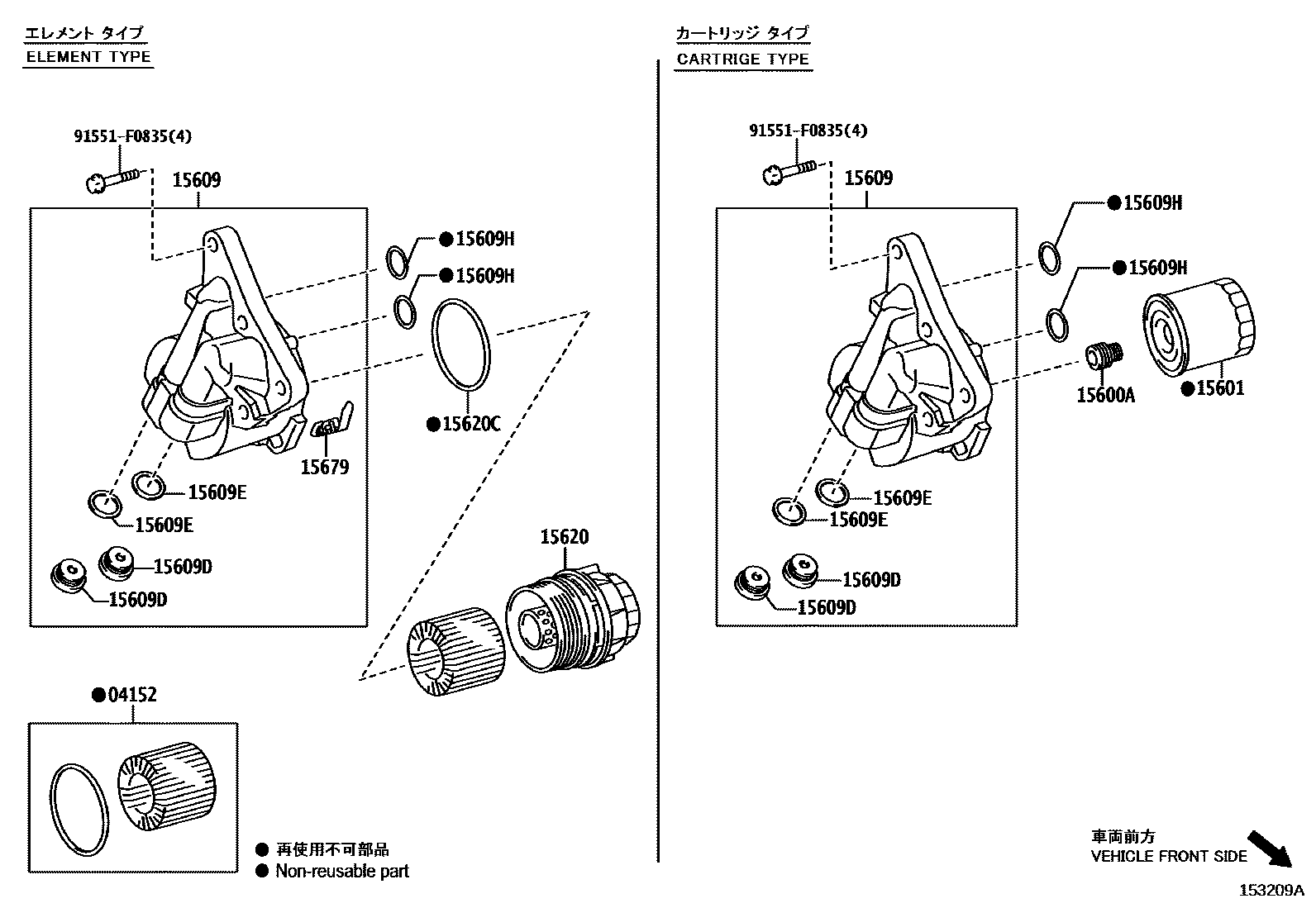

Toyota C-HR (TUP) — OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010i3ZRFAE..ZGX10¥840201702-201711

ELEMENT TYPE

15600AUNION(FOR OIL FILTER)

main90904-04006i3ZRFAE..ZGX10¥450201709-202210

CARTRIGE TYPE

15601FILTER SUB-ASSY, OIL

main90915-10003i3ZRFAE..ZGX10¥1,050201709-202210

(J),MARK 90915-10003

sub90915-10009¥1,050

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37041i3ZRFAE..ZGX10¥8,000201702-201711

ELEMENT TYPE

main15609-37060i3ZRFAE..ZGX10¥7,000201709-201909

CARTRIGE TYPE

main15609-37060i3ZRFAE..ZGX10¥7,000201909-202210

(J),CARTRIGE TYPE

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i3ZRFAE..ZGX10¥180201702-201711

ELEMENT TYPE

main90341-20002i3ZRFAE..ZGX10¥180201709-202210

CARTRIGE TYPE

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main90430-20004i3ZRFAE..ZGX10¥200201702-201711

ELEMENT TYPE

main90430-20018i3ZRFAE..ZGX10¥90201709-202210

CARTRIGE TYPE

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020i3ZRFAE..ZGX10¥140201702-201711

ELEMENT TYPE

main96723-24020i3ZRFAE..ZGX10¥140201709-202210

CARTRIGE TYPE

15620CAP ASSY, OIL FILTER

main15620-37010i3ZRFAE..ZGX10¥3,950201702-201711

ELEMENT TYPE

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i3ZRFAE..ZGX10201702-201711

ELEMENT TYPE

15679CLIP, OIL FILTER BRACKET

main15679-37011i3ZRFAE..ZGX10¥130201702-201711

ELEMENT TYPE

91551F0835

main91551-F0835¥80

11 parts on this diagram · 1 diagram in section
