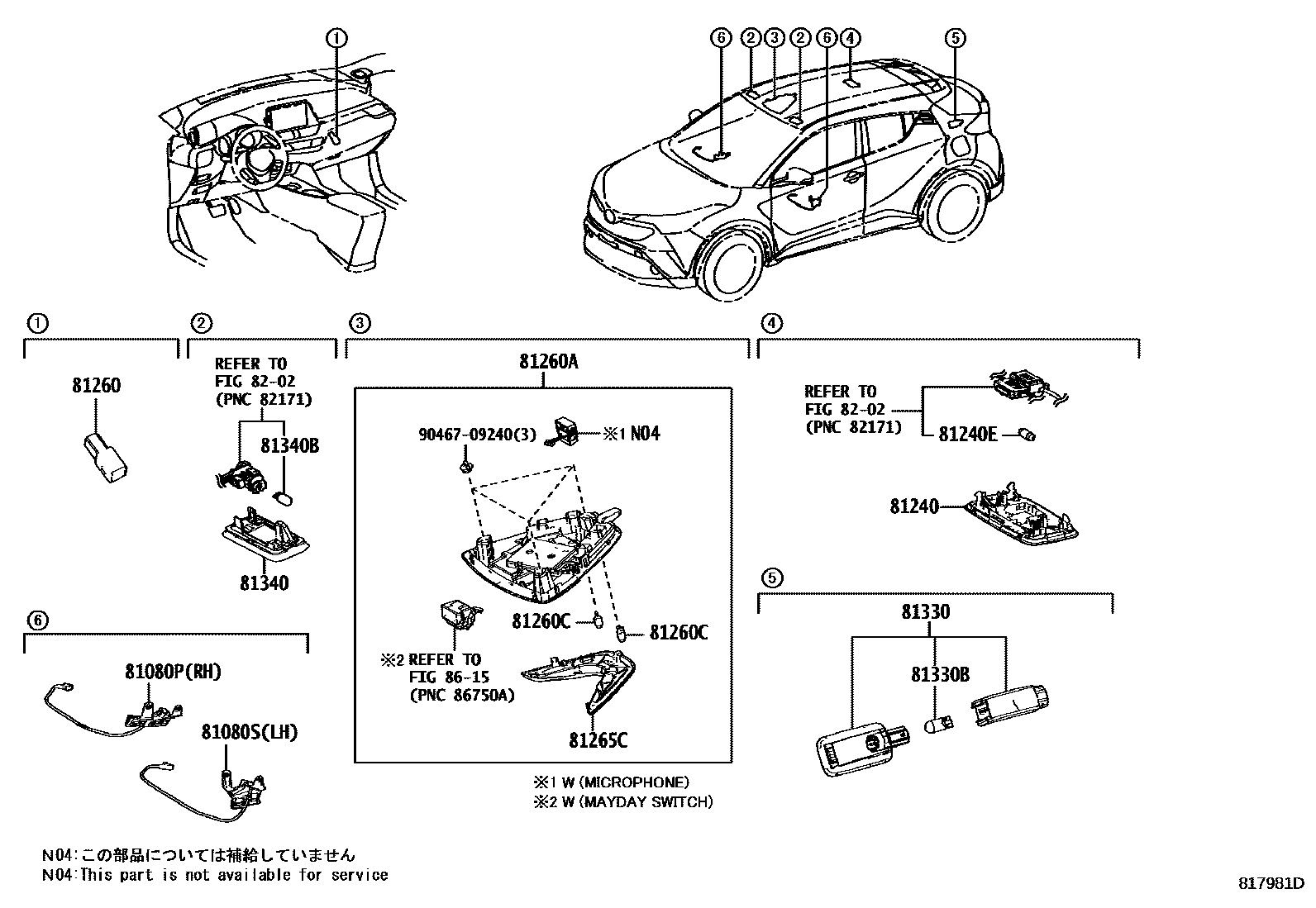

Toyota C-HR (TUP) — INTERIOR LAMP
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
BLACK,TRIM2#,4#,8#
81240LAMP ASSY, ROOM, NO.1
81240EBULB, ROOM LAMP, NO.2
12V 8W
12V 8W
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
USA POSSESSIONS SPEC&AUDIO-*DA(*NS & HD RADIO) & 6SPEAKER & USB,BLACK,TRIM2#
sub81260-F4061
sub81260-F4060
BLACK,TRIM8#
HAWAII SPEC&AUDIO-*DA & HD RADIO, FOR NORTH AMERICA,BLACK,TRIM8#
HAWAII SPEC&AUDIO-*DA & HD RADIO, FOR NORTH AMERICA,BLACK,TRIM2#
PUERTO RICO SPEC&AUDIO-*DA & HD RADIO, FOR NORTH AMERICA,BLACK,TRIM8#
PUERTO RICO SPEC&AUDIO-*DA & HD RADIO, FOR NORTH AMERICA,BLACK,TRIM2#
BLACK,TRIM2#
HAWAII SPEC&AUDIO-*DA & HD RADIO, FOR NORTH AMERICA,LT.GRAY,TRIM2#
PUERTO RICO SPEC&AUDIO-*DA & HD RADIO, FOR NORTH AMERICA,LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
BLACK,TRIM8#
HAWAII SPEC&AUDIO-*DA & HD RADIO, FOR NORTH AMERICA,BLACK,TRIM8#
PUERTO RICO SPEC&AUDIO-*DA & HD RADIO, FOR NORTH AMERICA,BLACK,TRIM8#
81260CBULB(FOR MAP LAMP)
12V 5W
12V 5W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
12V 5W
12V 5W
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
8202
8615
9046709240
15 parts on this diagram · 1 diagram in section
