Toyota C-HR (TUP) — IGNITION COIL & SPARK PLUG / GLOW PLUG

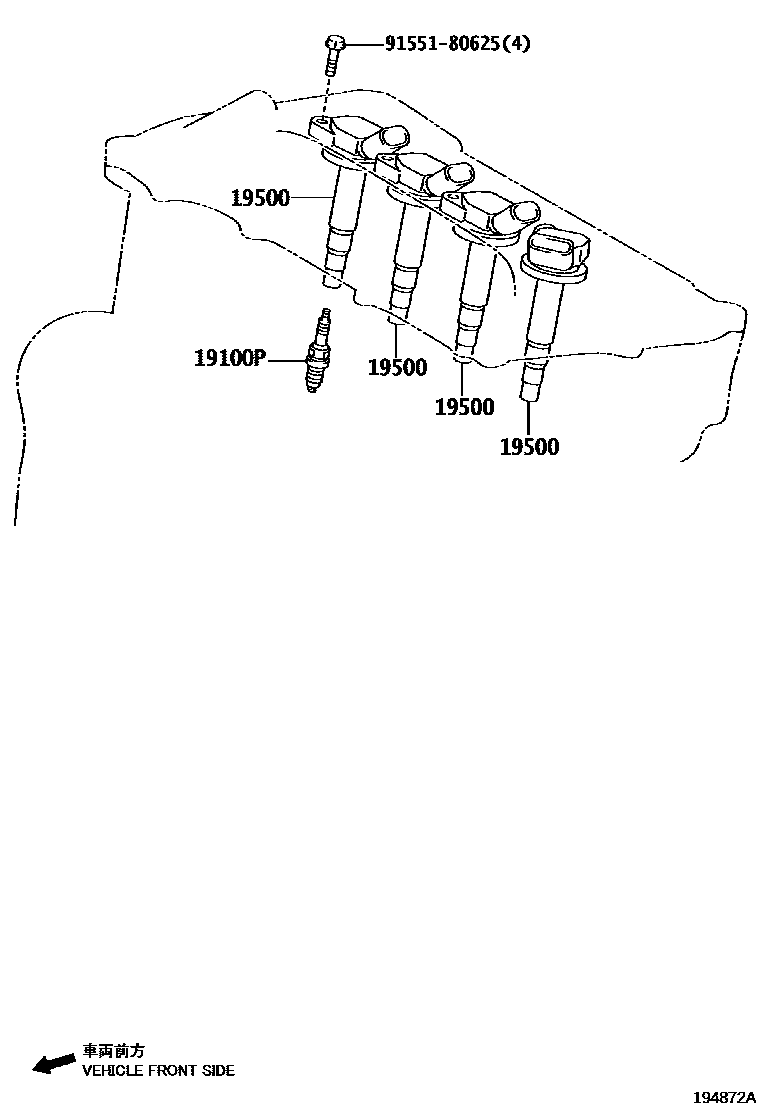

Parts diagram

19100PPLUG, SPARK

main90919-01275i¥2,000201702-202210

SC16HR11

19500COIL ASSY, IGNITION

main90919-02258i¥7,500201702-202210

9155180625

main91551-80625¥60

3 parts on this diagram · 1 diagram in section
