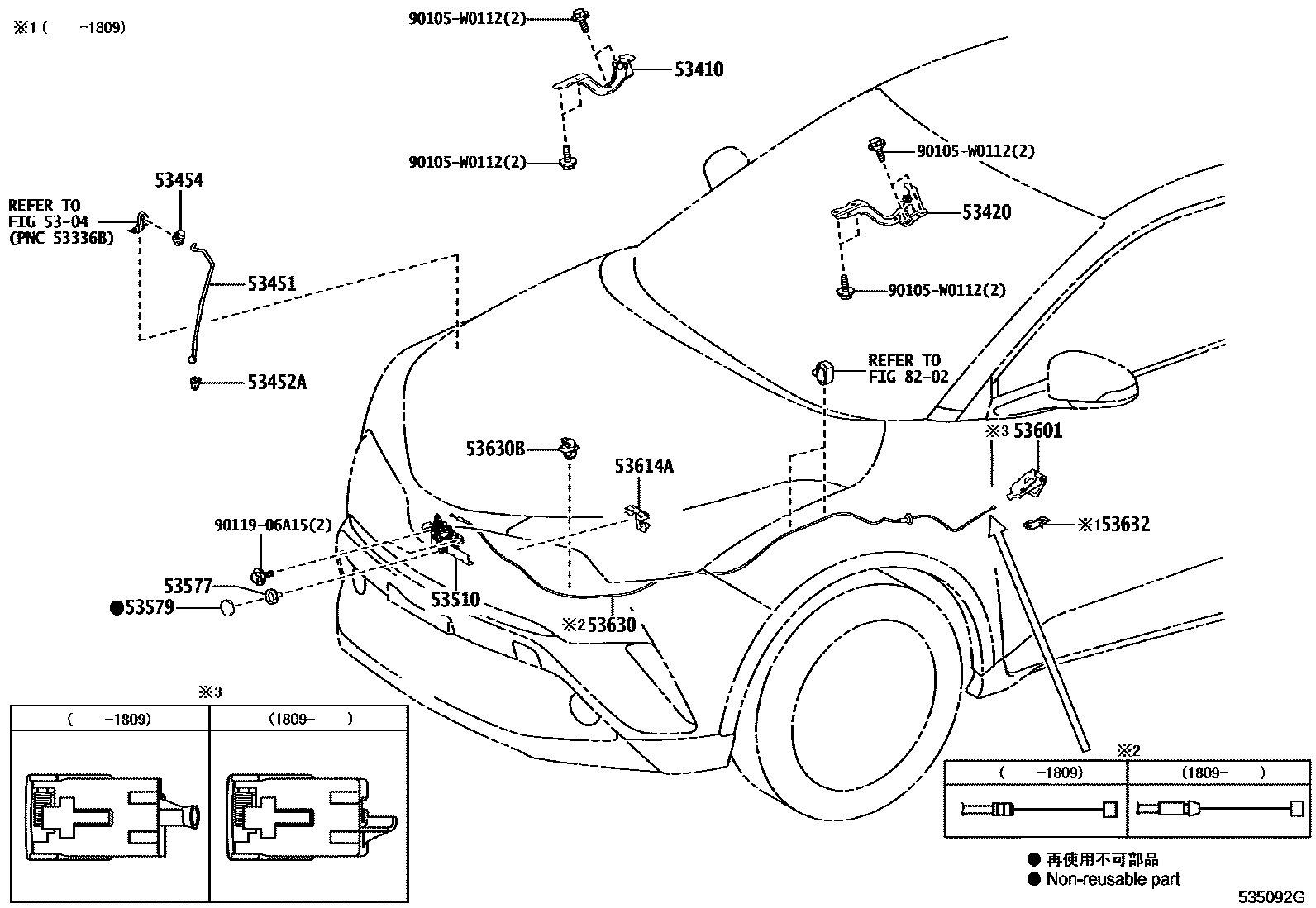

Toyota C-HR (TUP) — HOOD LOCK & HINGE

5304

53410HINGE ASSY, HOOD, RH

main53410-F4010iZGX10201702-202210

53420HINGE ASSY, HOOD, LH

main53420-F4010iZGX10201702-202210

53451ROD, HOOD SUPPORT

main53440-F4010iZGX10201702-202210

53452AHOLDER, HOOD STAY

main53452-F4012iZGX10201702-202210

53454CLIP, HOOD SUPPORT ROD

main53454-12030iZGX10¥100201702-202210

53510LOCK ASSY, HOOD

main53510-F4020iZGX10201702-202210

53577BOLT, HOOD LOCK

main53577-33010iZGX10¥230201702-202210

53579CAP, HOOD LOCK NUT

main53579-50010iZGX10¥100201702-202210

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-C1iZGX10201702-201805

EU BLACK,TRIM2#

sub53601-05030¥1,410

main53601-05030-C2iZGX10201805-201809

BLACK,TRIM2#

sub53601-05030¥1,410

main53601-F4020-C0iZGX10201809-202210

BLACK,TRIM2#

sub53601-F4020¥1,860

main53601-F4020-C0iZGX10..G201909-202210

BLACK,TRIM2#,8#

sub53601-F4020¥1,860

main53601-F4020-C0iZGX10..G201909-202210

BLACK,TRIM2#,4#,8#

sub53601-F4020¥1,860

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-F4010iZGX10201702-202210

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-F4020iZGX10201702-201809

main53630-F4021iZGX10201809-202210

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iZGX10¥80201702-202210

53632HOLDER, HOOD LOCK CONTROL CABLE

main53632-10010iZGX10¥200201702-201809

8202

90105W0112

main90105-W0112

9011906A15

main90119-06A15¥60

17 parts on this diagram · 1 diagram in section
