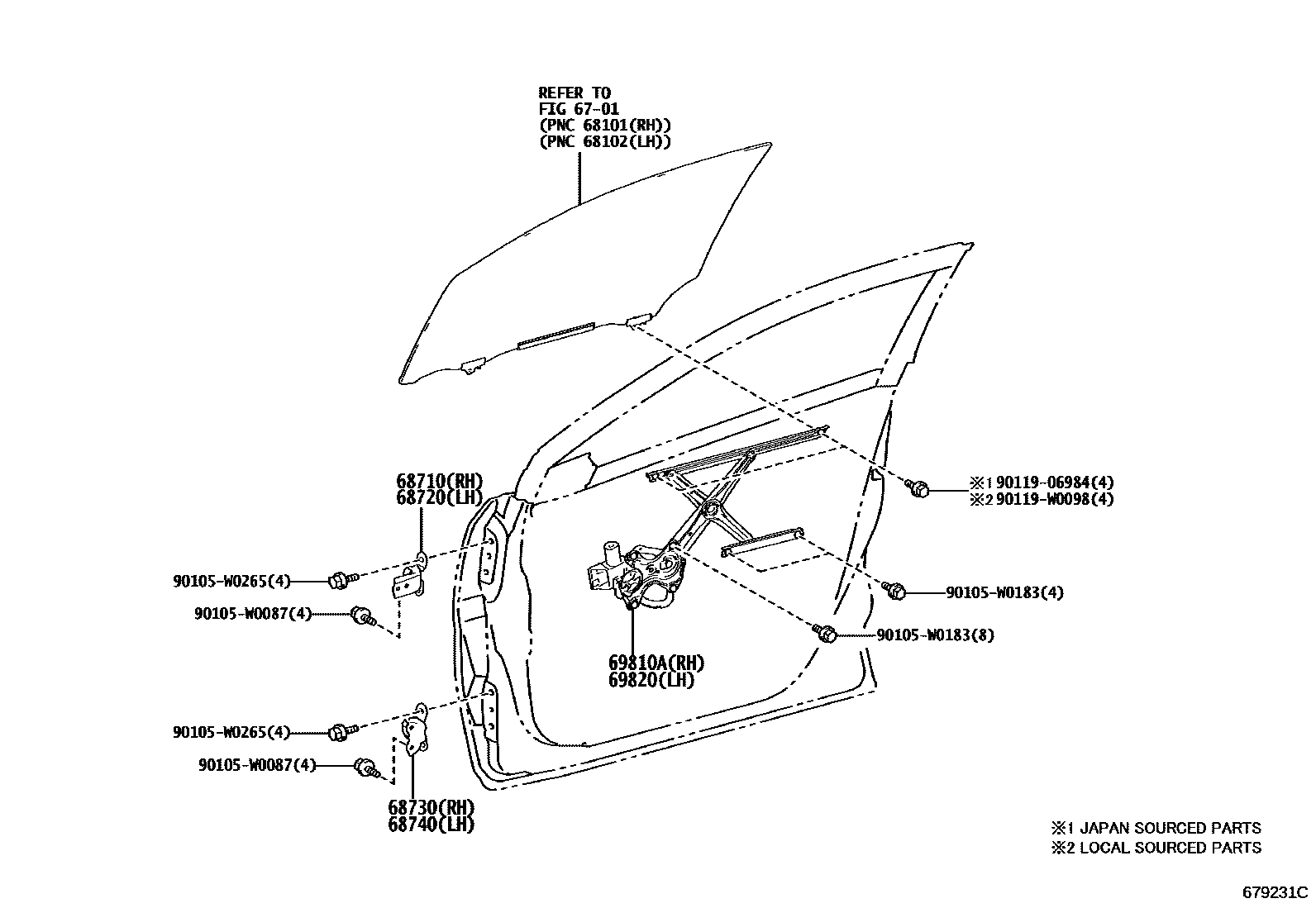

Toyota C-HR (TUP) — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02060iZGX10¥3,240201810-202210

main68710-0D091iZGX10201702-201809

sub68710-02060¥3,240

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02060iZGX10¥3,240201810-202210

main68720-0D091iZGX10201702-201809

sub68720-02060¥3,240

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02050iZGX10¥2,950201810-202210

main68730-0D071iZGX10201702-201809

sub68730-02050¥2,950

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02050iZGX10¥2,950201810-202210

main68740-0D071iZGX10201702-201809

sub68740-02050¥2,950

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-F4010iZGX10201702-202210

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-F4010iZGX10201702-202210

90105W0087

main90105-W0087¥80

90105W0183

main90105-W0183¥60

90105W0265

main90105-W0265

9011906984

main90119-06984¥60

90119W0098

main90119-W0098¥60

12 parts on this diagram · 1 diagram in section
