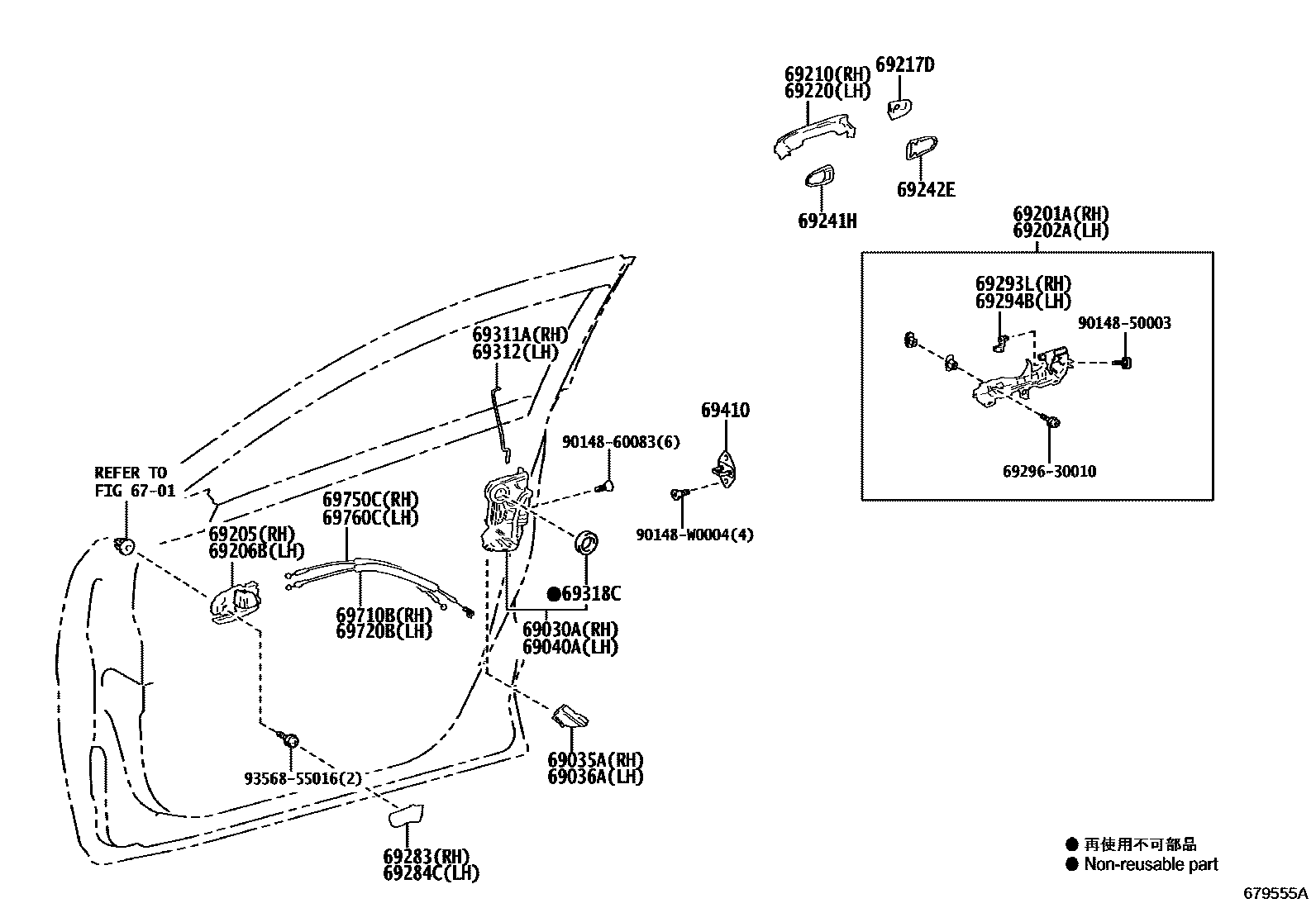

Toyota C-HR (TUP) — FRONT DOOR LOCK & HANDLE
6701
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
EU BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM2#,4#,8#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2NA
PLATINUM WHITE PEARL MC.,089 ,2VP
GRAY ME.,1G3
GRAY ME.,1G3 ,2NB
METAL STREAM ME,1K0 ,2NK
BLACK MC.,209 ,2TA
EMOTIONAL RED 2,2TB ,3U5
ORANGE ME.,2TC
OXIDE BRONZE ME.,6X1
OXIDE BRONZE ME.,2TK ,6X1
NEBULA BLUE ME.,2NH ,8X2
PAINT REQ.
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
SUPER WHITE 2,040,DRIVER SIDE
WHITE PEARL CS.,070 ,2NA,DRIVER SIDE
PLATINUM WHITE PEARL MC.,089 ,2VP,DRIVER SIDE
GRAY ME.,1G3,DRIVER SIDE
GRAY ME.,1G3 ,2NB,DRIVER SIDE
METAL STREAM ME,1K0 ,2NK,DRIVER SIDE
BLACK MC.,209 ,2TA,DRIVER SIDE
EMOTIONAL RED 2,2TB ,3U5,DRIVER SIDE
ORANGE ME.,2TC,DRIVER SIDE
OXIDE BRONZE ME.,2TK ,6X1,DRIVER SIDE
OXIDE BRONZE ME.,6X1,DRIVER SIDE
NEBULA BLUE ME.,2NH ,8X2,DRIVER SIDE
SUPER WHITE 2,040,PASSENGER SIDE
WHITE PEARL CS.,070 ,2NA,PASSENGER SIDE
PLATINUM WHITE PEARL MC.,089 ,2VP,PASSENGER SIDE
GRAY ME.,1G3,PASSENGER SIDE
GRAY ME.,1G3 ,2NB,PASSENGER SIDE
METAL STREAM ME,1K0 ,2NK,PASSENGER SIDE
BLACK MC.,209 ,2TA,PASSENGER SIDE
EMOTIONAL RED 2,2TB ,3U5,PASSENGER SIDE
ORANGE ME.,2TC,PASSENGER SIDE
OXIDE BRONZE ME.,6X1,PASSENGER SIDE
OXIDE BRONZE ME.,2TK ,6X1,PASSENGER SIDE
NEBULA BLUE ME.,2NH ,8X2,PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2NA
PLATINUM WHITE PEARL MC.,089 ,2VP
GRAY ME.,1G3 ,2NB
GRAY ME.,1G3
METAL STREAM ME,1K0 ,2NK
BLACK MC.,209 ,2TA
EMOTIONAL RED 2,2TB ,3U5
ORANGE ME.,2TC
OXIDE BRONZE ME.,6X1
OXIDE BRONZE ME.,2TK ,6X1
NEBULA BLUE ME.,2NH ,8X2
PAINT REQ.
PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6929630010SCREW, DOOR INSIDE HANDLE
9014850003
9014860083
90148W0004
9356855016
31 parts on this diagram · 1 diagram in section
