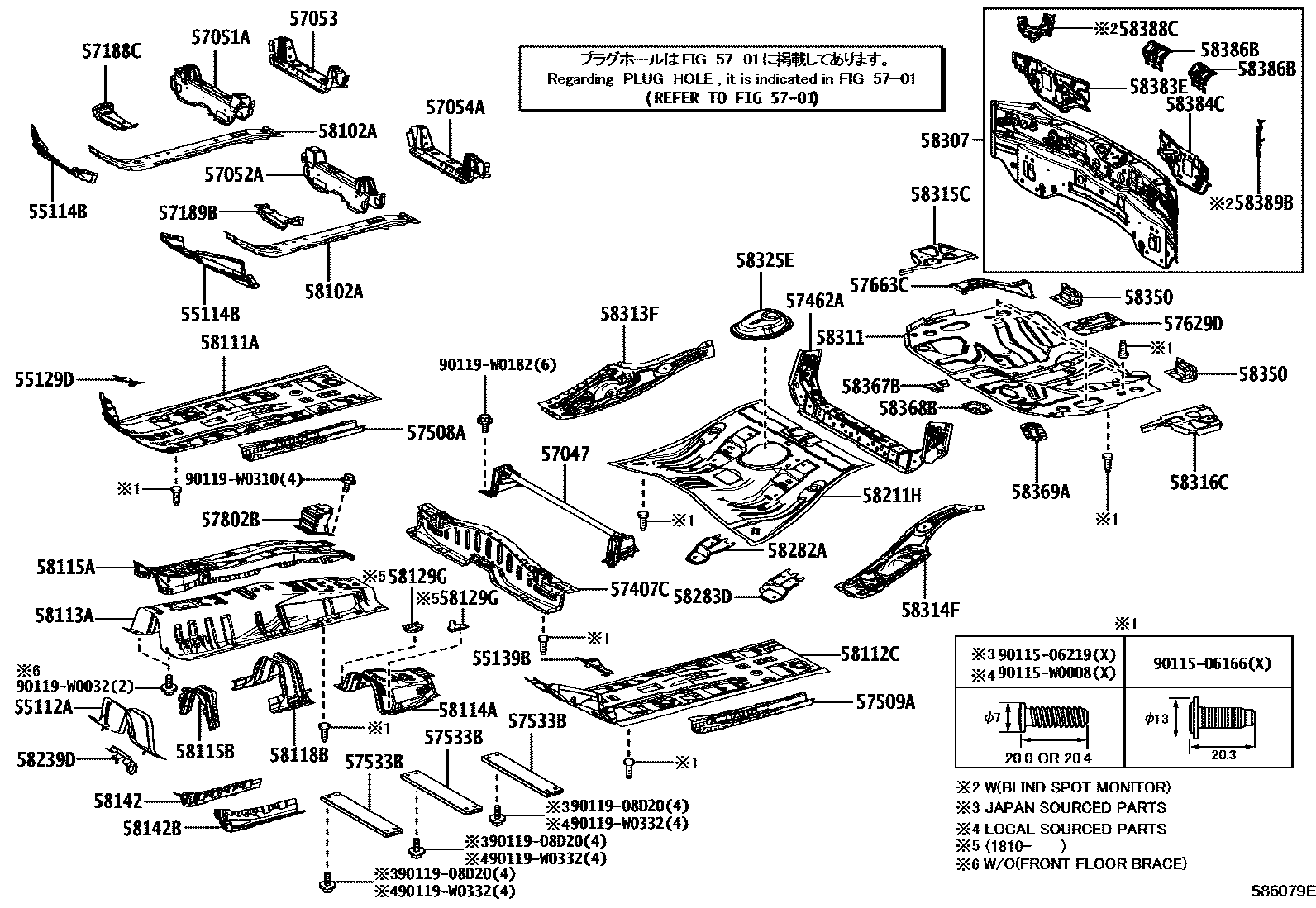

Toyota C-HR (TUP) — FLOOR PAN & LOWER BACK PANEL
55112APANEL, DASH, NO.2
55114BPANEL, DASH, LOWER
RH
LH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57047GUSSET SUB-ASSY, CENTER FLOOR CROSSMEMBER
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57462AMEMBER, CENTER FLOOR CROSS, NO.2
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
57663CMEMBER, REAR FLOOR CROSS, CENTER
57802BREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115AREINFORCEMENT, FRONT FLOOR PANEL
58115BPANEL, FRONT FLOOR, REAR
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58129GBRACKET, FRONT CROSS TO FRONT PANEL MEMBER REINFORCE
58211HPAN, CENTER FLOOR
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58367BBRACKET, FUEL TUBE
58368BBRACKET, FUEL TUBE, NO.2
58369ABRACKET, FUEL TUBE, NO.3
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH
58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH
9011506166
9011506219
90115W0008
9011908D20
90119W0032
90119W0182
main90119-W0182
90119W0310
main90119-W0310
90119W0332
main90119-W0332
59 parts on this diagram · 2 diagrams in section
