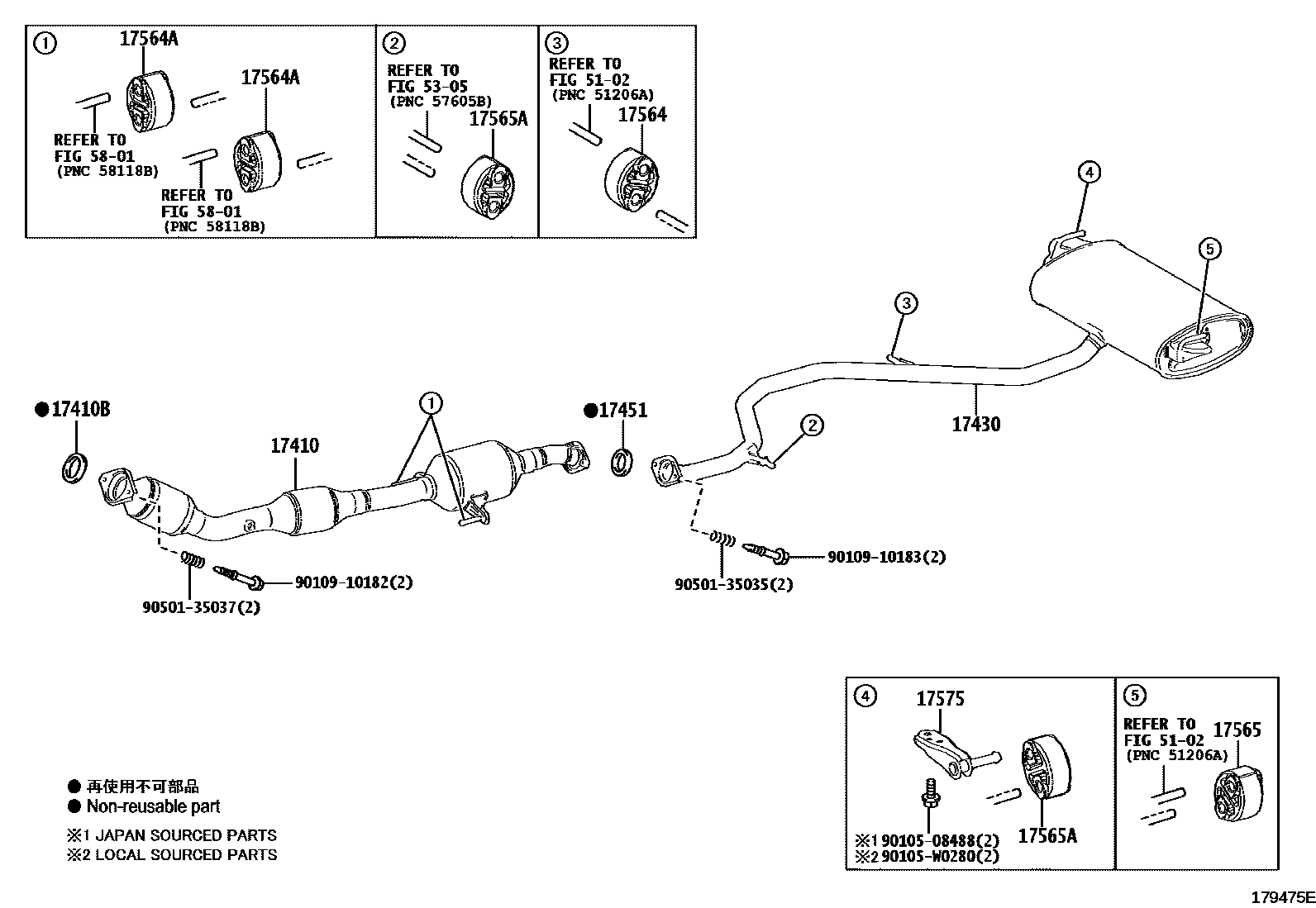

Toyota C-HR (TUP) — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0TB10i3ZRFAE..ZGX10201702-202210

17410BGASKET, EXHAUST PIPE

main17451-0R010i3ZRFAE..ZGX10¥1,360201702-202210

17430PIPE ASSY, EXHAUST, TAIL

main17430-0Y151i3ZRFAE..ZGX10201702-202210

17451GASKET, EXHAUST PIPE

main17451-0J022i3ZRFAE..ZGX10¥720201702-202210

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0T040i3ZRFAE..ZGX10201702-202210

17564ASUPPORT, CATALYTIC CONVERTER, RH

main17565-0J031i3ZRFAE..ZGX10¥680201702-202210

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0J031i3ZRFAE..ZGX10¥680201702-202210

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0J031i3ZRFAE..ZGX10¥680201702-202210

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-0Y030i3ZRFAE..ZGX10201702-202210

5102

5305

5801

9010508488

main90105-08488¥80

90105W0280

main90105-W0280

9010910182

main90109-10182¥190

9010910183

main90109-10183¥190

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

18 parts on this diagram · 1 diagram in section
