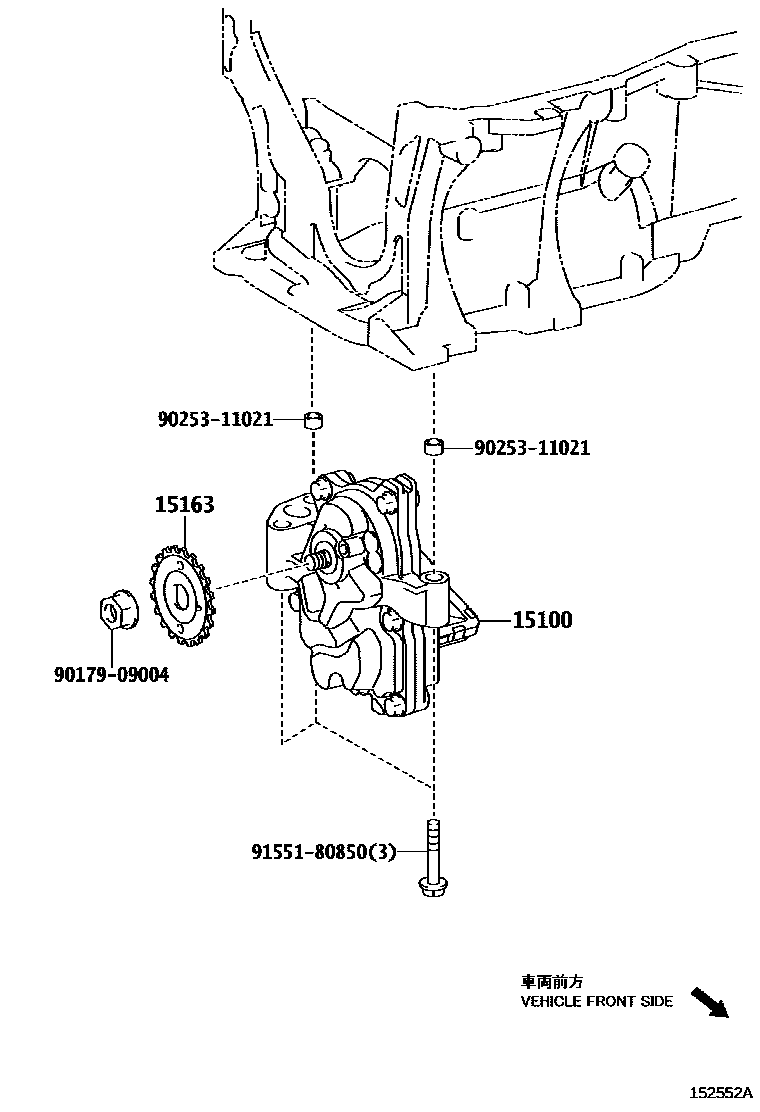

Toyota C-HR (TUP) — ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-37021i3ZRFAE..ZGX10¥11,800201702-201909

main15100-37021i3ZRFAE..ZGX10¥11,800201909-202210

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i3ZRFAE..ZGX10¥390201702-201909

main15163-28010i3ZRFAE..ZGX10¥390201909-202210

9017909004

main90179-09004¥90

9025311021

main90253-11021¥120

9155180850

main91551-80850¥100

5 parts on this diagram · 1 diagram in section
