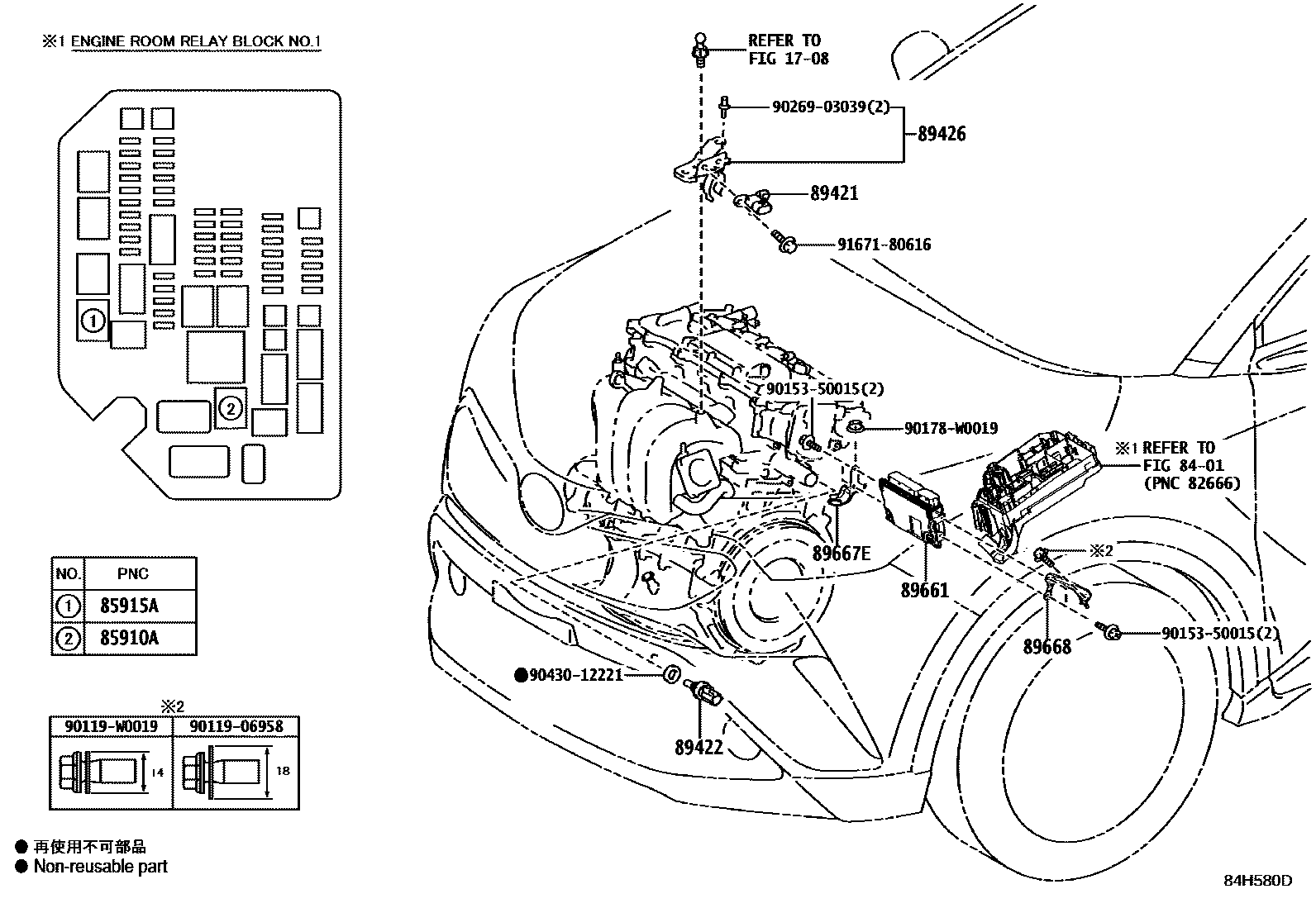

Toyota C-HR (TUP) — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

1708

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87021iZGX10201702-202105

sub90987-02027¥2,930

main90987-02027iZGX10¥2,930202105-202210

85915ARELAY, MAIN

main90080-87021iZGX10201702-202105

sub90987-02027¥2,930

main90987-02027iZGX10¥2,930202105-202210

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZGX10¥5,900201702-202210

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZGX10¥2,410201702-202210

89426BRACKET, VACUUM SENSOR

main89426-13020iZGX10¥540201702-202210

89661COMPUTER, ENGINE CONTROL

main89661-F4010iZGX10201702-201706

main89661-F4011iZGX10201707-201805

DENSO

main89661-F4260iZGX10201805-201909

DENSO

main89661-F4360iZGX10201909-202010

DENSO

main89661-F4560iZGX10202010-202210

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-F4010iZGX10201702-202210

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02530iZGX10201805-202210

main89668-F4010iZGX10201702-201804

sub89668-02530

9011906958

main90119-06958¥60

90119W0019

main90119-W0019¥100

9015350015

main90153-50015¥60

90178W0019

main90178-W0019¥110

9026903039

main90269-03039¥70

9043012221

main90430-12221¥200

9167180616

main91671-80616¥60

17 parts on this diagram · 2 diagrams in section
