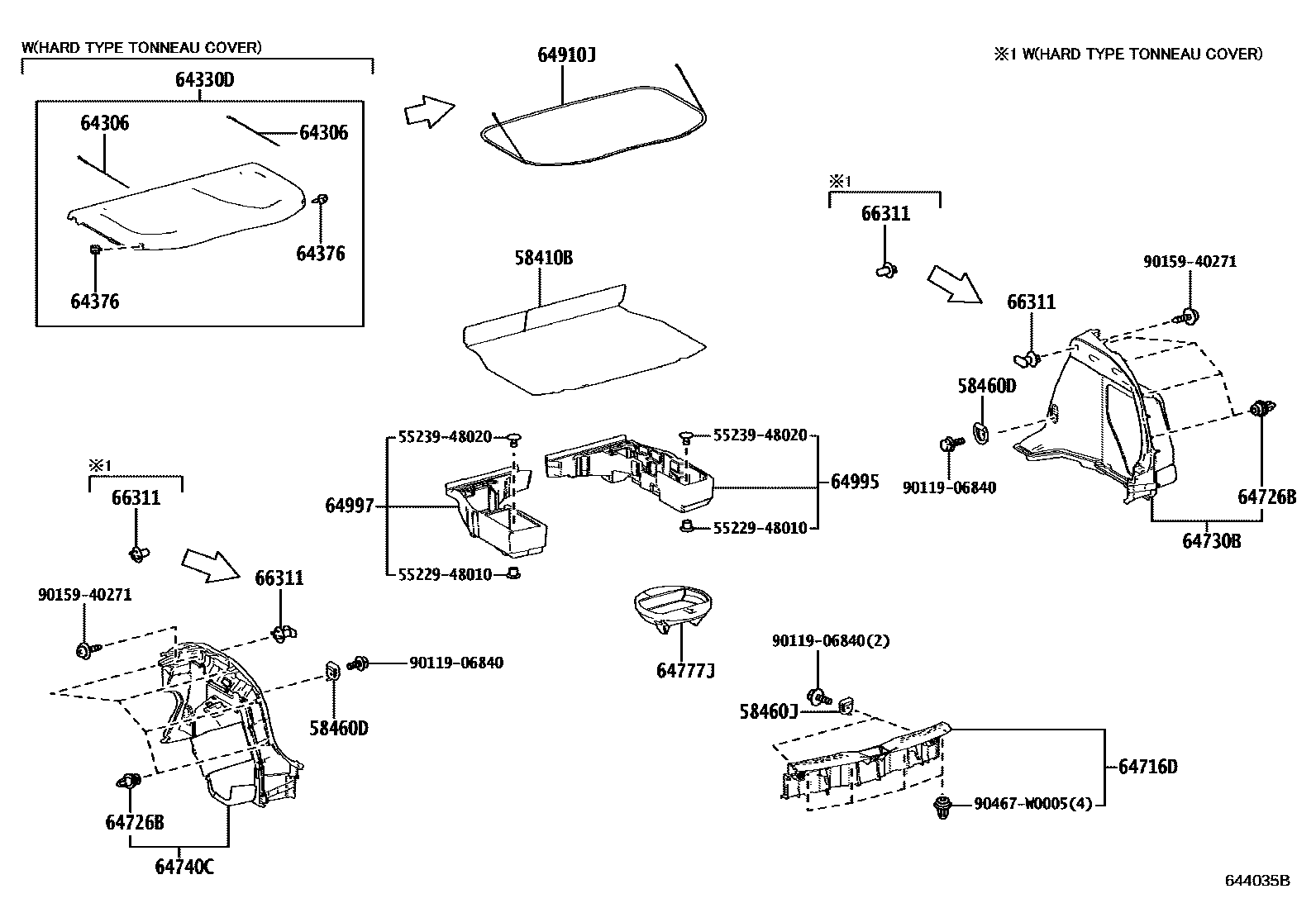

Toyota C-HR (TUP) — DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM2#,4#,8#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58460JSTRIKER ASSY, LUGGAGE HOLD BELT
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
main64306-F4010
64330DPANEL ASSY, PACKAGE TRAY TRIM
64376SPACER, PACKAGE TRAY TRIM, NO.2
64716DCOVER, DECK TRIM, REAR
64726BCLIP, DECK REAR TRIM
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM8#
BLACK,TRIM2#,4#,8#
BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM8#
BLACK,TRIM2#,4#,8#
BLACK,TRIM2#
64777JCUSHION, SPARE WHEEL
64910JCOVER ASSY, TONNEAU
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
66311HOOK, ROPE
5522948010PLATE, DASH PANEL INSULATOR, NO.4
5523948020SILENCER, STEERING COLUMN HOLE COVER
9011906840
9015940271
90467W0005
20 parts on this diagram · 1 diagram in section
