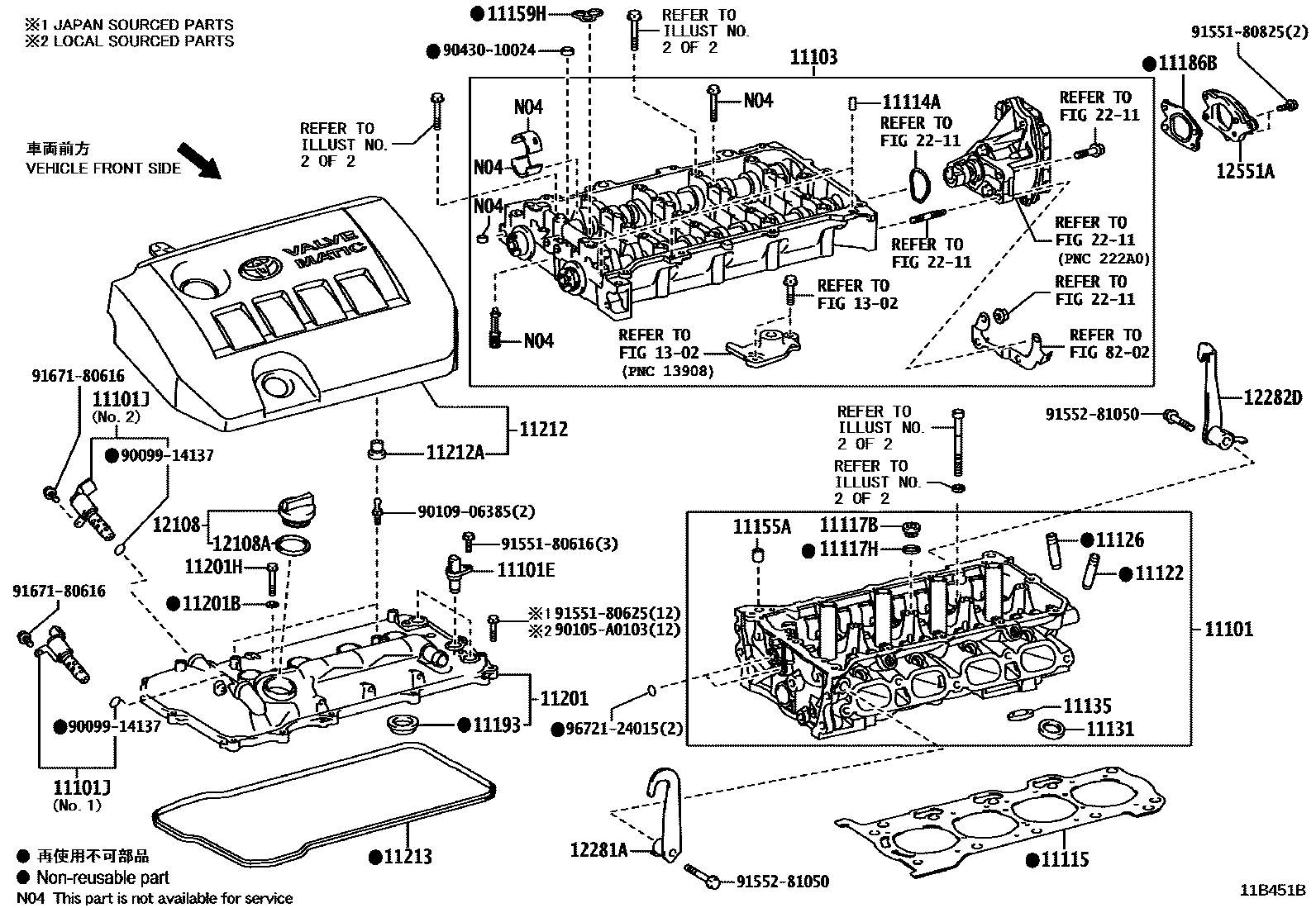

Toyota C-HR (TUP) — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.1
NO.1
NO.2
NO.2
11103HOUSING SUB-ASSY, CAMSHAFT
11114APIN, STRAIGHT
L=14,OD=6
L=14,OD=6
11115GASKET, CYLINDER HEAD
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11186BGASKET, CAMSHAFT HOUSING REAR COVER
11193GASKET, SPARK PLUG TUBE
(L)
(L)
(J)
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
(L)
(J)
(J)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
(L)
(L)
(J)
(J)
11212COVER, CYLINDER HEAD, NO.2
11212ACUSHION, CYLINDER HEAD COVER
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
(J)
(J)
12108AGASKET(FOR OIL FILLER CAP)
(J)
(J)
12281AHANGER, ENGINE, NO.1
TYPE B:REFER ILLUST.
12282DHANGER, ENGINE, NO.2
PAINTED=WHITE
12551ABRACKET, VACUUM PUMP, NO.1
1302
2211
8202
9009914137
90105A0103
main90105-A0103
9010906385
9043010024
9155180616
9155180625
9155180825
9155281050
9167180616
9672124015
40 parts on this diagram · 2 diagrams in section
