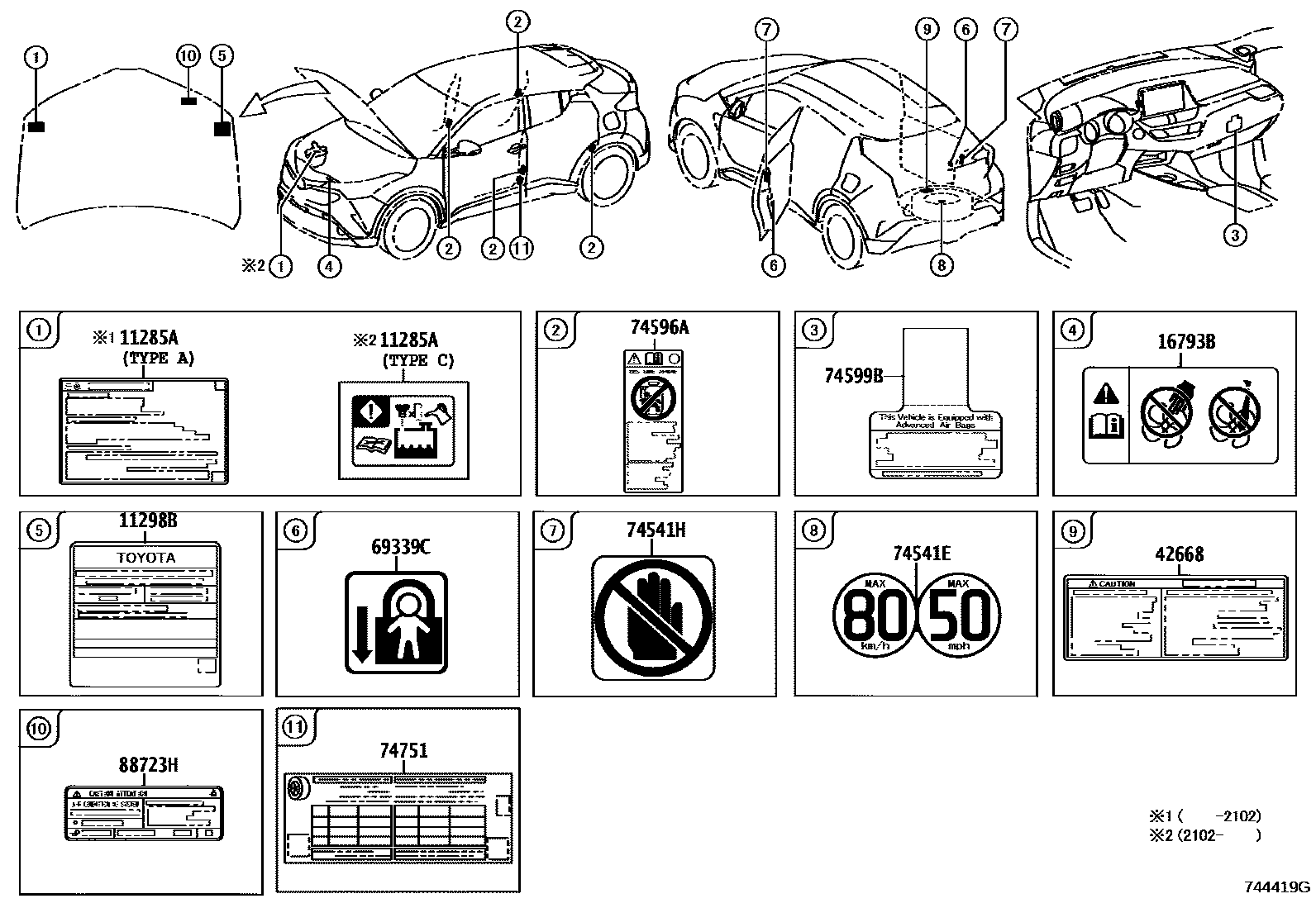

Toyota C-HR (TUP) — CAUTION PLATE (EXTERIOR & INTERIOR)
11285ALABEL, COOLANT SYSTEM NOTICE
TYPE C:REFER ILLUST.
TYPE A:REFER ILLUST.
11298BLABEL, EMISSION CONTROL INFORMATION
16793BLABEL, COOLING FAN INFORMATION
42668LABEL, COMPACT SPARE TIRE CAUTION
TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES
PUERTO RICO SPEC
TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES
69339CLABEL, CHILD PROTECTOR INFORMATION
74541EPLATE, COMPACT SPARE TIRE CAUTION
74541HPLATE, BODY CAUTION
74596ALABEL, SIDE AIRBAG CAUTION
74599BLABEL, DRIVER & PASSENGER AIRBAG INFORMATION
MEXICO SPEC
CANADA SPEC
74751LABEL, TIRE PRESSURE INFORMATION
88723HLABEL, COOLER SERVICE CAUTION
11 parts on this diagram · 1 diagram in section
