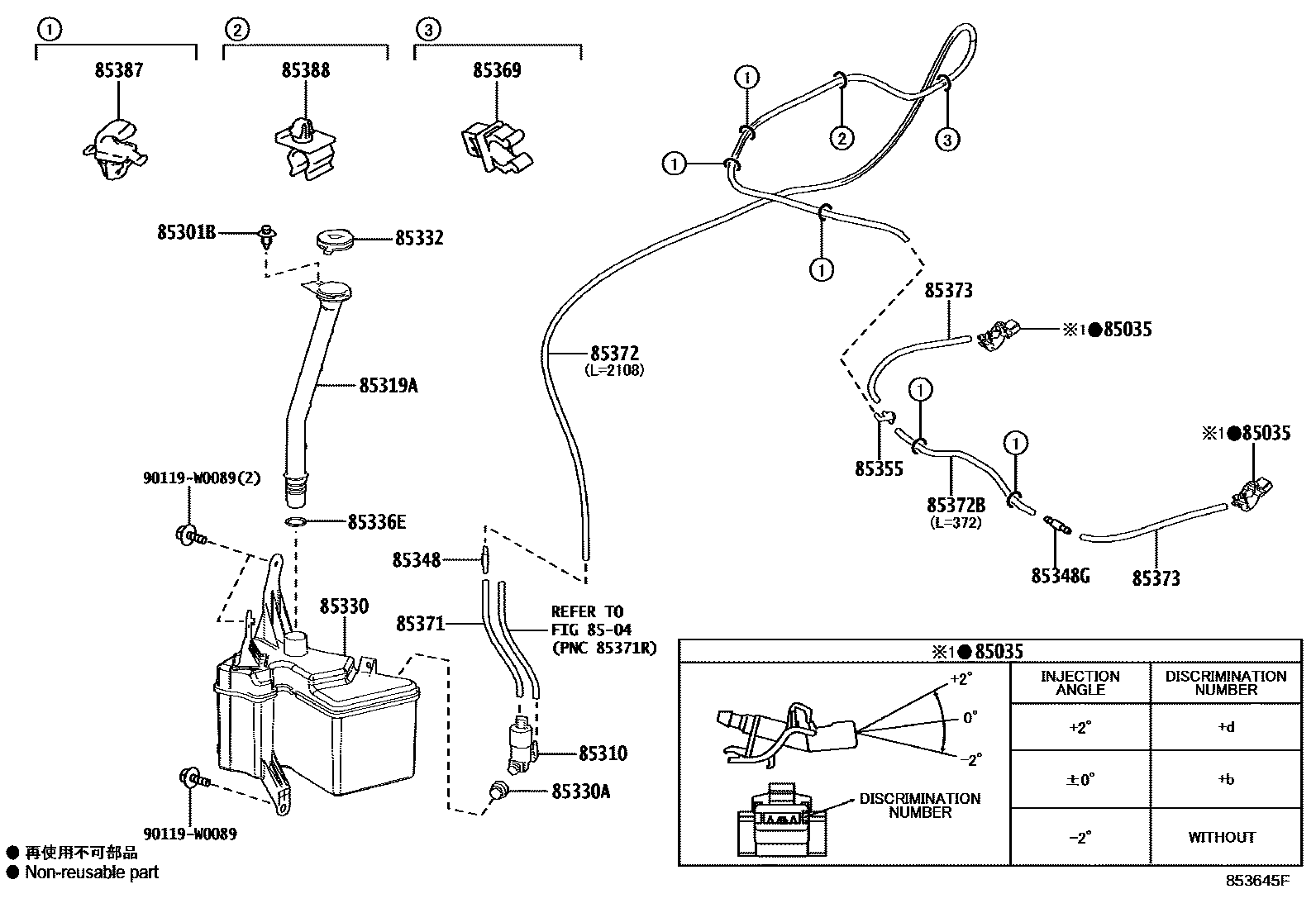

Toyota C-HR (TUP) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE +2
ANGLE +2
8504
85301BCLIP, WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=173
L=173
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
*318:REFER ILLUST.
*318:REFER ILLUST.
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
*318:REFER ILLUST.
*318:REFER ILLUST.
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=210)
L=1450(*H,L=210)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
90119W0089
20 parts on this diagram · 1 diagram in section
