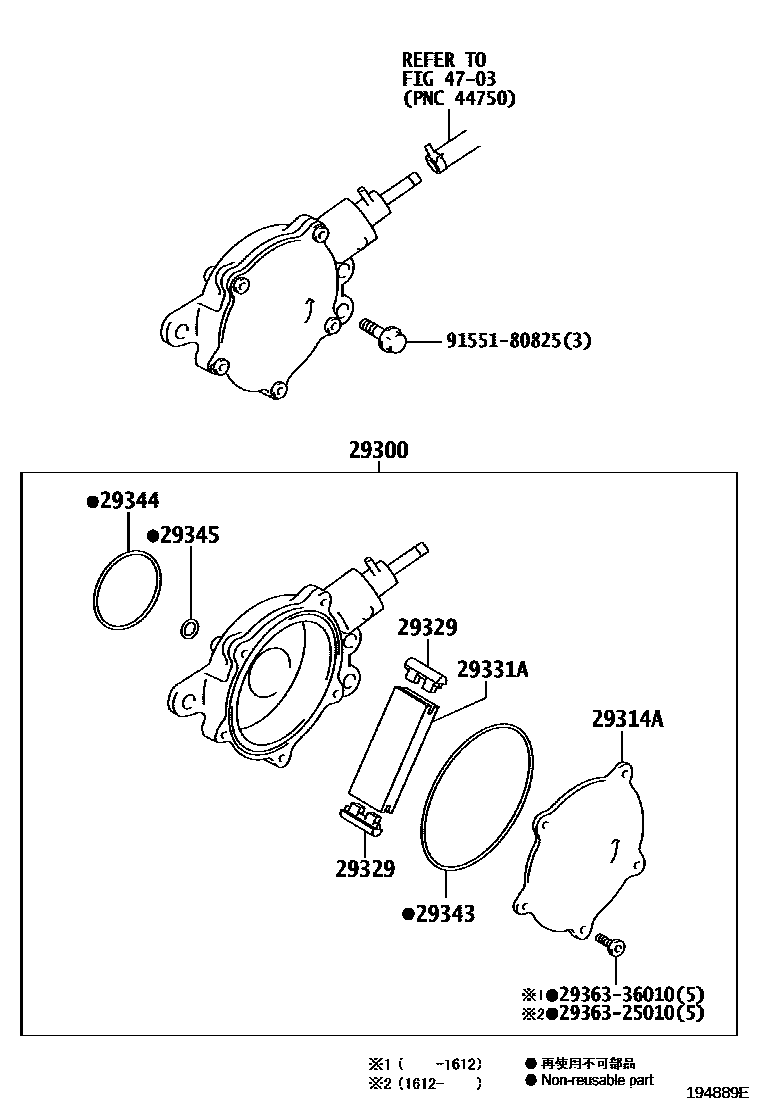

Toyota C-HR (TUP) — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-47040i8NRFTS..NGX10,50¥19,500201610-201802

main29300-47050i8NRFTS..NGX10,50¥16,200201802-201909

29314ACOVER, END

main29314-47040i8NRFTS..NGX10,50¥990201610-201909

29329CAP, VACUUM PUMP VANE

main29329-37010i8NRFTS..NGX10,50¥200201610-201909

29331AVANE, VACUUM PUMP

main29331-37010i8NRFTS..NGX10,50¥590201610-201909

29343RING, O VACUUM PUMP, NO.1

main29343-47040i8NRFTS..NGX10,50¥150201610-201909

29344RING, O VACUUM PUMP, NO.2

main29344-22011i8NRFTS..NGX10,50¥130201610-201909

29345RING, O VACUUM PUMP, NO.3

main29345-22011i8NRFTS..NGX10,50¥130201610-201909

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

2936336010SCREW, HOLLOW VACUUM PUMP

main29363-36010¥260

9155180825

main91551-80825¥80

11 parts on this diagram · 1 diagram in section
