Toyota C-HR (TUP) — V-BELT

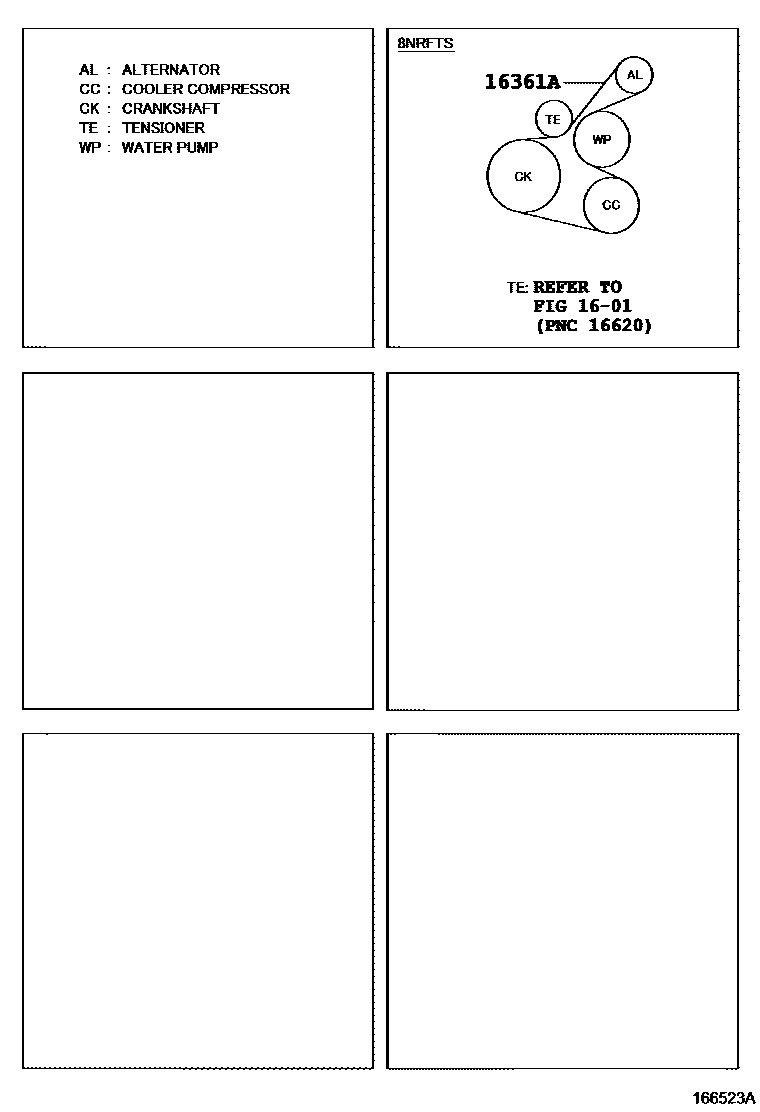

Parts diagram

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02730i¥4,360201610-201712

main90916-02758i¥4,360201801-201909

2 parts on this diagram · 1 diagram in section
