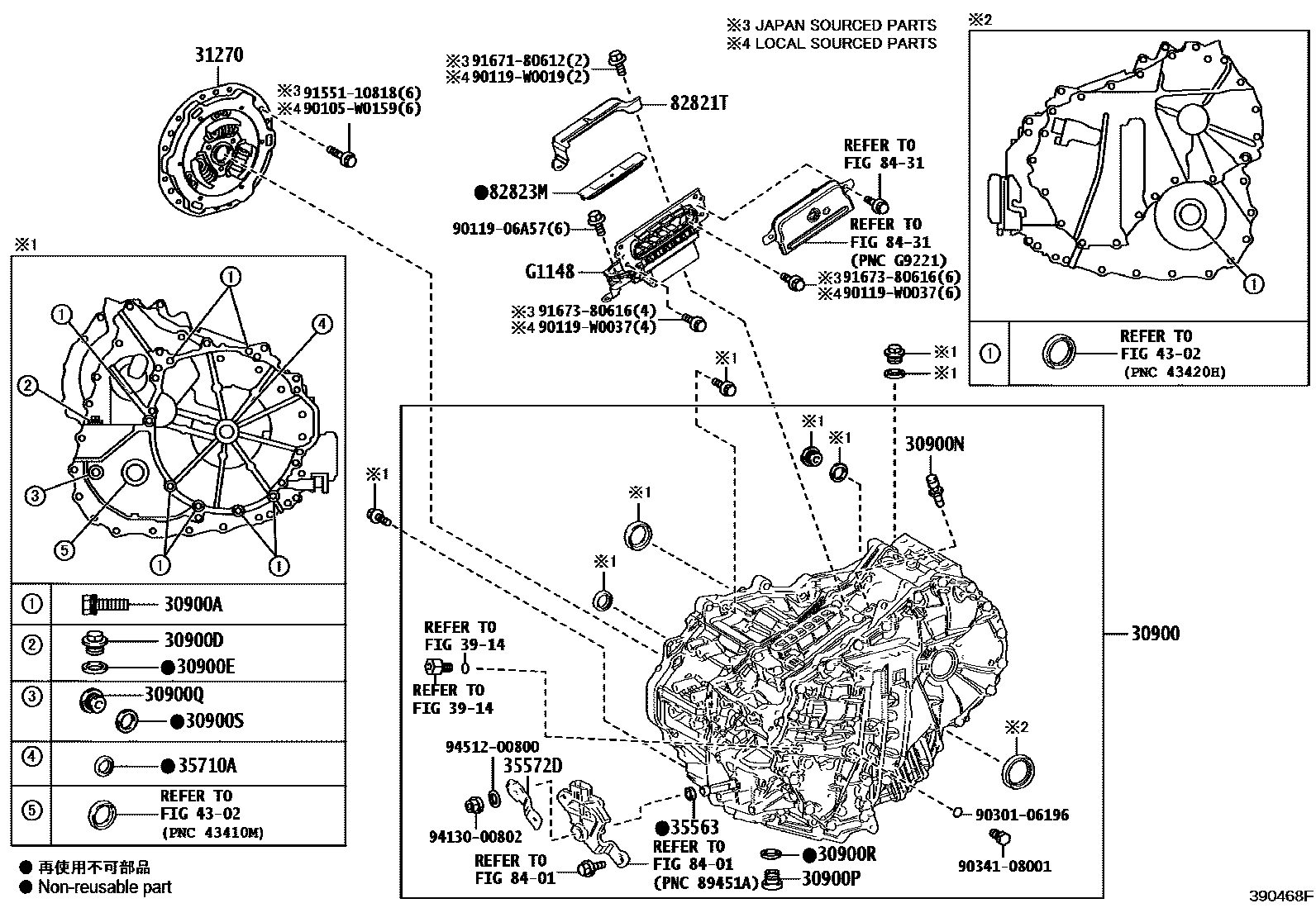

Toyota C-HR (TUP) — TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-47110iZYX10¥297,000201909

(J)

sub30900-47150¥270,000

main30900-F4010iZYX10201909-202211

(L)

sub30900-47110¥297,000

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main90119-W0155iZYX10201909

*10-1.25PX45-30

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iZYX10¥240201909

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZYX10¥110201909

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZYX10¥120201909

30900PPLUG, DRAIN(HEV)

main90341-18016iZYX10¥190201909

30900QPLUG, FILLER(HEV)

main90341-18016iZYX10¥190201909

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZYX10¥110201909

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZYX10¥110201909

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-47070iZYX10¥27,600201909

35563SEAL, SHIFT CONTROL ACTUATOR

main90311-12016iZYX10¥190201909

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-10040iZYX10¥610201909

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iZYX10¥270201909

3914

4302

82821TCOVER, CONNECTOR

main82821-47240iZYX10¥1,740201909

82823MCAP, TERMINAL

main82823-47040iZYX10¥700201909

8401

8431

G1148CABLE, MOTOR

mainG114847070iZYX10201909

90105W0159

main90105-W0159

9011906A57

main90119-06A57¥60

90119W0019

main90119-W0019¥100

90119W0037

main90119-W0037¥60

9030106196

main90301-06196¥170

9034108001

main90341-08001¥120

9155110818

main91551-10818¥80

9167180612

main91671-80612¥60

9167380616

main91673-80616¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

31 parts on this diagram · 1 diagram in section
