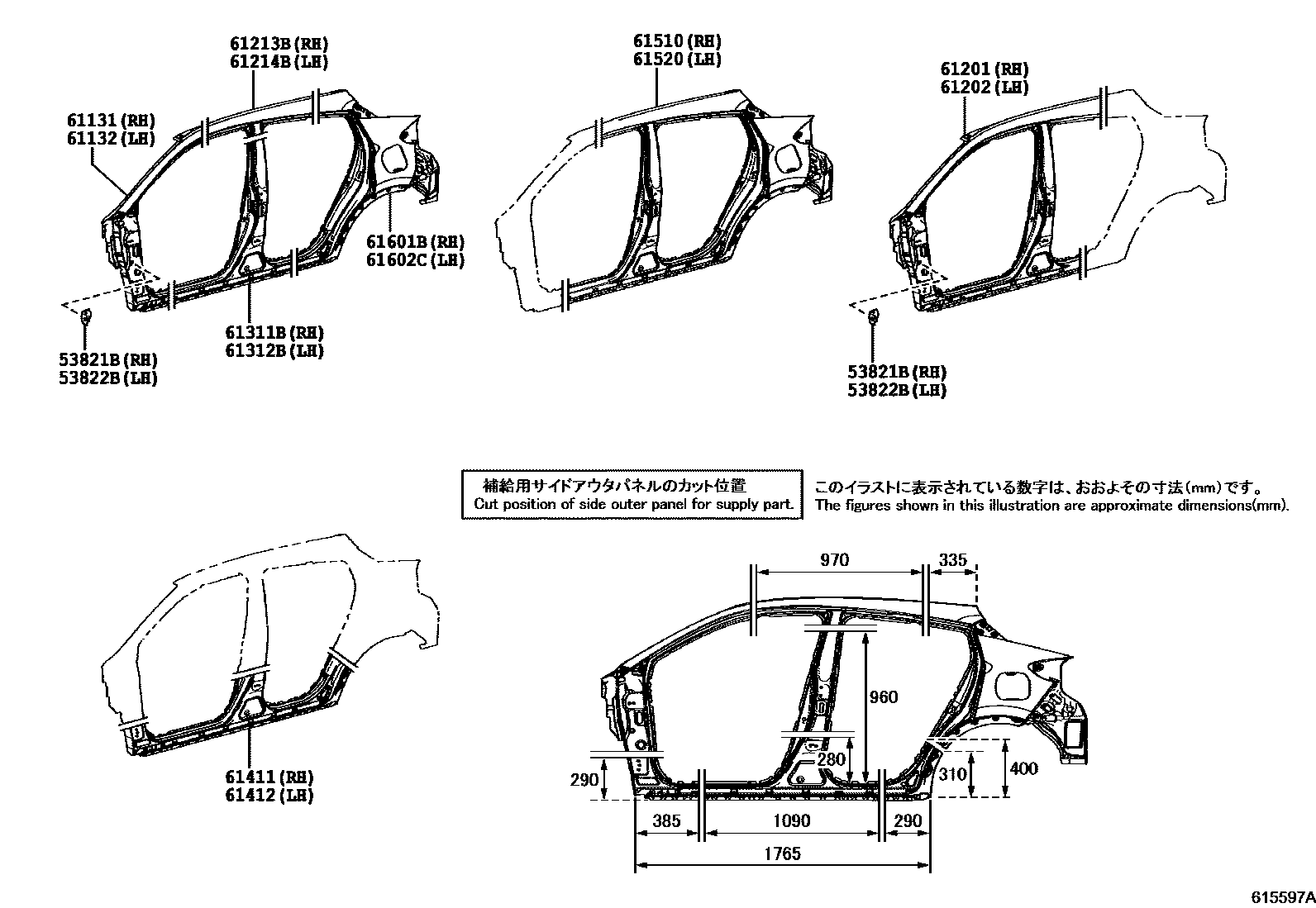

Toyota C-HR (TUP) — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-F4010iNGX10,50,ZYX10201909

main53821-F4010iNGX10,50201610-201909

53822BBRACKET, FRONT FENDER, REAR LH

main53821-F4010iNGX10,50201610-201909

main53821-F4010iNGX10,50,ZYX10201909

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-F4020iNGX10,50201610-201909

main61131-F4020iNGX10,50,ZYX10201909

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-F4020iNGX10,50201610-201909

main61132-F4020iNGX10,50,ZYX10201909

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61211-F4030iNGX10,50201610-201909

main61211-F4030iNGX10,50,ZYX10201909

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61212-F4030iNGX10,50201610-201909

main61212-F4030iNGX10,50,ZYX10201909

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-F4010iNGX10,50201610-201909

main61213-F4010iNGX10,50,ZYX10201909

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-F4010iNGX10,50201610-201909

main61214-F4010iNGX10,50,ZYX10201909

61311BPILLAR, CENTER BODY, OUTER RH

main61311-F4010iNGX10,50201610-201909

main61311-F4010iNGX10,50,ZYX10201909

61312BPILLAR, CENTER BODY, OUTER LH

main61312-F4010iNGX10,50201610-201909

main61312-F4010iNGX10,50,ZYX10201909

61411PANEL, ROCKER, OUTER RH

main61411-F4030iNGX10,50201610-201909

main61411-F4030iNGX10,50,ZYX10201909

61412PANEL, ROCKER, OUTER LH

main61412-F4030iNGX10,50201610-201909

main61412-F4030iNGX10,50,ZYX10201909

61510PANEL ASSY, REAR UPPER SIDE, RH

main61501-F4010iNGX10,50201610-201909

main61501-F4010iNGX10,50,ZYX10201909

61520PANEL ASSY, REAR UPPER SIDE,LH

main61502-F4010iNGX10,50201610-201909

main61502-F4010iNGX10,50,ZYX10201909

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-F4010iNGX10,50,ZYX10201909

main61601-F4010iNGX10,50201610-201909

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-F4010iNGX10,50201610-201909

main61602-F4010iNGX10,50,ZYX10201909

16 parts on this diagram · 3 diagrams in section
