Toyota C-HR (TUP) — SHORT BLOCK ASSEMBLY

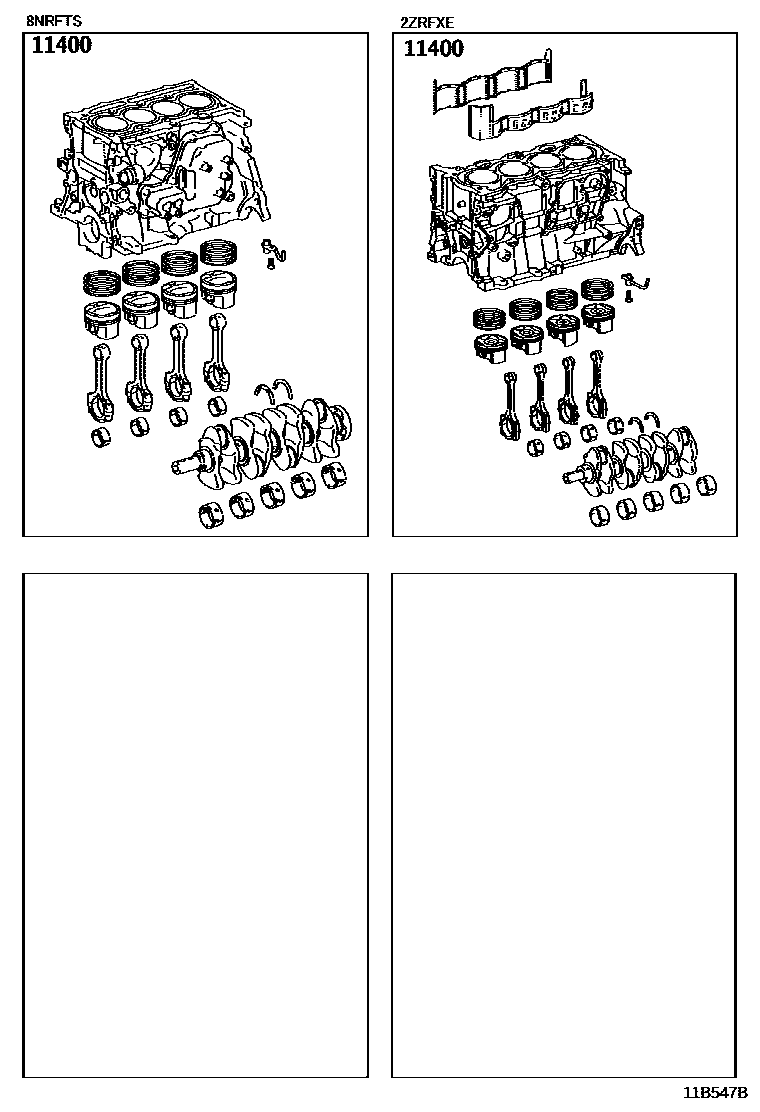

Parts diagram
11400BLOCK ASSY, SHORT
main11400-0T480i201909-202110
*149
sub11400-0T560
sub16281-37190¥880
sub25601-37060
main11400-0T560i202110
*149
main11400-37340i201909-202110
*670 OR *671 OR 672
sub11400-37360
sub16281-37190¥880
sub25601-37060
main11400-37360i202110
*670 OR *671 OR 672
main11400-47200i¥181,000201610-201909
