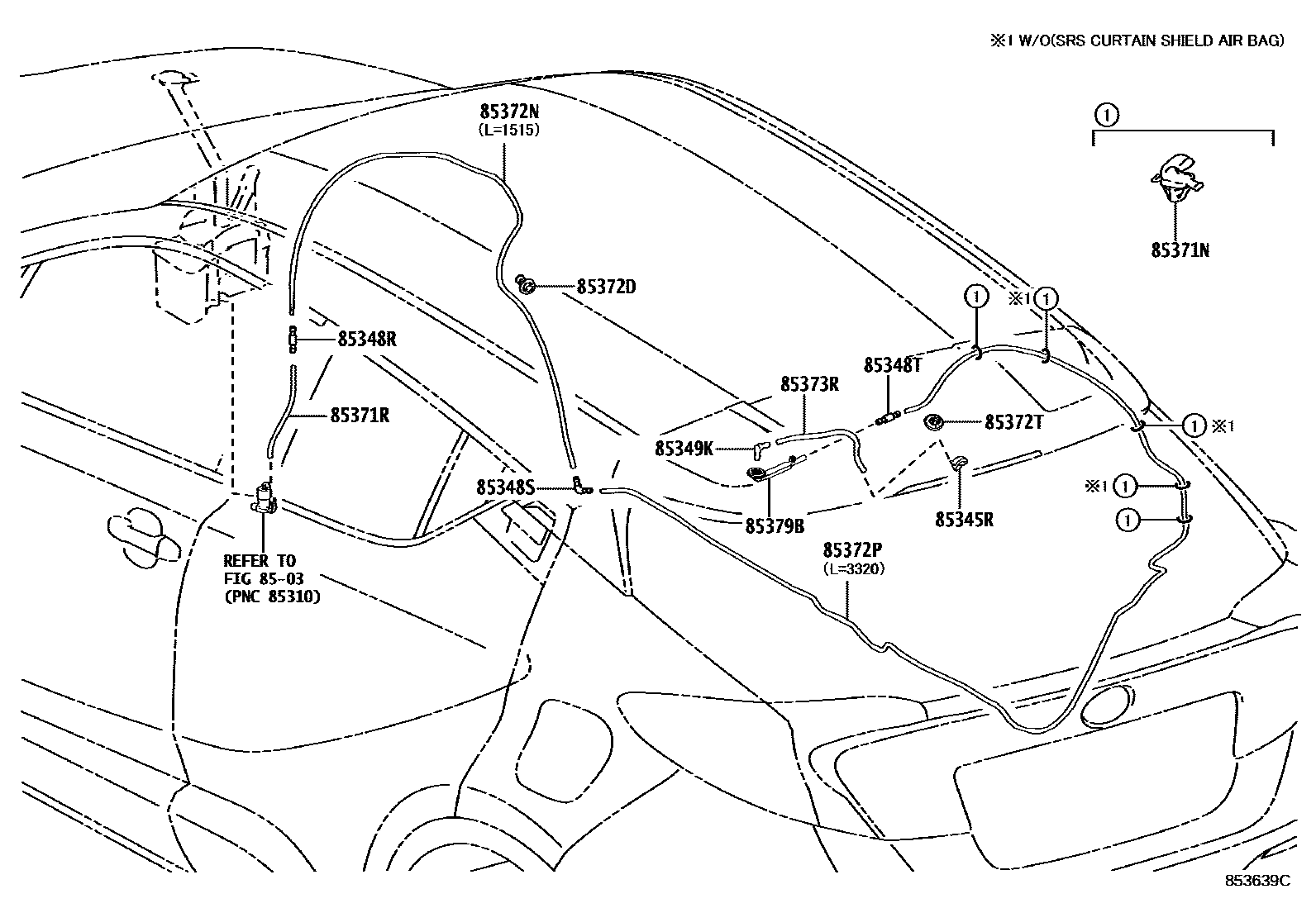

Toyota C-HR (TUP) — REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-10030iNGX10,50201610-201909

main85391-10030iNGX10,50,ZYX10201909

85348RJOINT, REAR WASHER HOSE, NO.1

main85357-0F020iNGX10,50201610-201909

main85357-0F020iNGX10,50,ZYX10201909

85348SJOINT, REAR WASHER ELBOW, NO.1

main85375-0F030iNGX10,50201610-201909

main85375-0F030iNGX10,50,ZYX10201909

85348TJOINT, REAR WASHER HOSE, NO.2

main85357-0F020iNGX10,50201610-201909

main85357-0F020iNGX10,50,ZYX10201909

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNGX10,50201610-201909

main85355-20200iNGX10,50,ZYX10201909

85371NCLAMP, REAR WASHER HOSE

main85371-12040iNGX10,50¥100201610-201909

SOUTH AFRICA SPEC

main85371-12040iNGX10,50¥100201610-201909

MOROCCO SPEC

main85371-12040iNGX10,50¥100201610-201909

ALGERIA SPEC

main85371-12040iNGX10,50¥100201610-201909

MIDDLE & NEAR EAST SPEC

main85371-12040iNGX10,50¥100201610-201909

EGYPT SPEC

main85371-12040iNGX10,50,ZYX10¥100201909

MOROCCO SPEC

main85371-12040iNGX10,50,ZYX10¥100201909

EGYPT SPEC

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-46076iNGX10,50201610-201909

L=173

main90069-46076iNGX10,50,ZYX10201909

L=173

85372DGROMMET, REAR WASHER HOSE

main85379-0F030iNGX10,50201610-201909

main85379-0F030iNGX10,50,ZYX10201909

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-16010iNGX10,50¥1,140201610-201909

*318:REFER ILLUST.

main90069-16010iNGX10,50¥1,140201610-201909

SOUTH AFRICA SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50¥1,140201610-201909

MOROCCO SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50¥1,140201610-201909

ALGERIA SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50¥1,140201610-201909

MIDDLE & NEAR EAST SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50¥1,140201610-201909

EGYPT SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50,ZYX10¥1,140201909

*318:REFER ILLUST.

main90069-16010iNGX10,50,ZYX10¥1,140201909

MOROCCO SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50,ZYX10¥1,140201909

EGYPT SPEC,*318:REFER ILLUST.

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90069-16010iNGX10,50¥1,140201610-201909

*318:REFER ILLUST.

main90069-16010iNGX10,50¥1,140201610-201909

SOUTH AFRICA SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50¥1,140201610-201909

MOROCCO SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50¥1,140201610-201909

ALGERIA SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50¥1,140201610-201909

MIDDLE & NEAR EAST SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50¥1,140201610-201909

EGYPT SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50,ZYX10¥1,140201909

*318:REFER ILLUST.

main90069-16010iNGX10,50,ZYX10¥1,140201909

MOROCCO SPEC,*318:REFER ILLUST.

main90069-16010iNGX10,50,ZYX10¥1,140201909

EGYPT SPEC,*318:REFER ILLUST.

85372TGROMMET, WASHER

main85373-0D010iNGX10,50201610-201909

main85373-0D010iNGX10,50,ZYX10201909

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNGX10,50201610-201909

L=1000(*H,L=210)

main90099-33299iNGX10,50201610-201909

L=1000(*H,L=210),SOUTH AFRICA SPEC

main90099-33299iNGX10,50201610-201909

L=1000(*H,L=210),MOROCCO SPEC

main90099-33299iNGX10,50201610-201909

L=1000(*H,L=210),ALGERIA SPEC

main90099-33299iNGX10,50201610-201909

L=1000(*H,L=210),MIDDLE & NEAR EAST SPEC

main90099-33299iNGX10,50201610-201909

L=1000(*H,L=210),EGYPT SPEC

main90099-33299iNGX10,50,ZYX10201909

L=1000(*H,L=210)

main90099-33299iNGX10,50,ZYX10201909

L=1000(*H,L=210),MOROCCO SPEC

main90099-33299iNGX10,50,ZYX10201909

L=1000(*H,L=210),EGYPT SPEC

85379BGROMMET, WASHER, A

main85373-0D022iNGX10,50201610-201909

main85373-0D022iNGX10,50,ZYX10201909

14 parts on this diagram · 1 diagram in section
