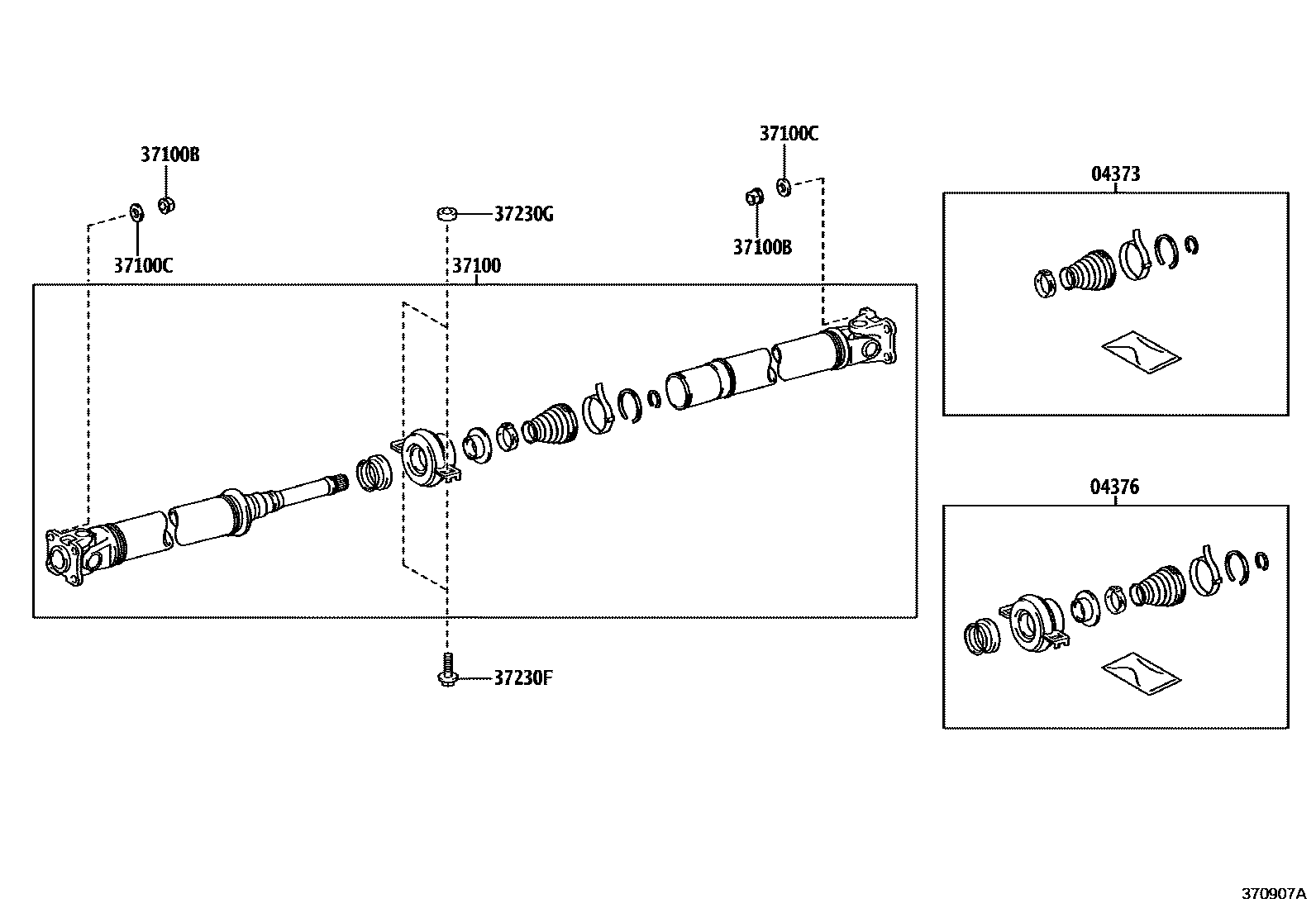

Toyota C-HR (TUP) — PROPELLER SHAFT & UNIVERSAL JOINT
04373BOOT KIT, UNIVERSAL
04376BEARING KIT, CENTER SUPPORT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
(J)
(L)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5
T=6.5
T=9.0
T=11.0
T=2.0
7 parts on this diagram · 1 diagram in section
