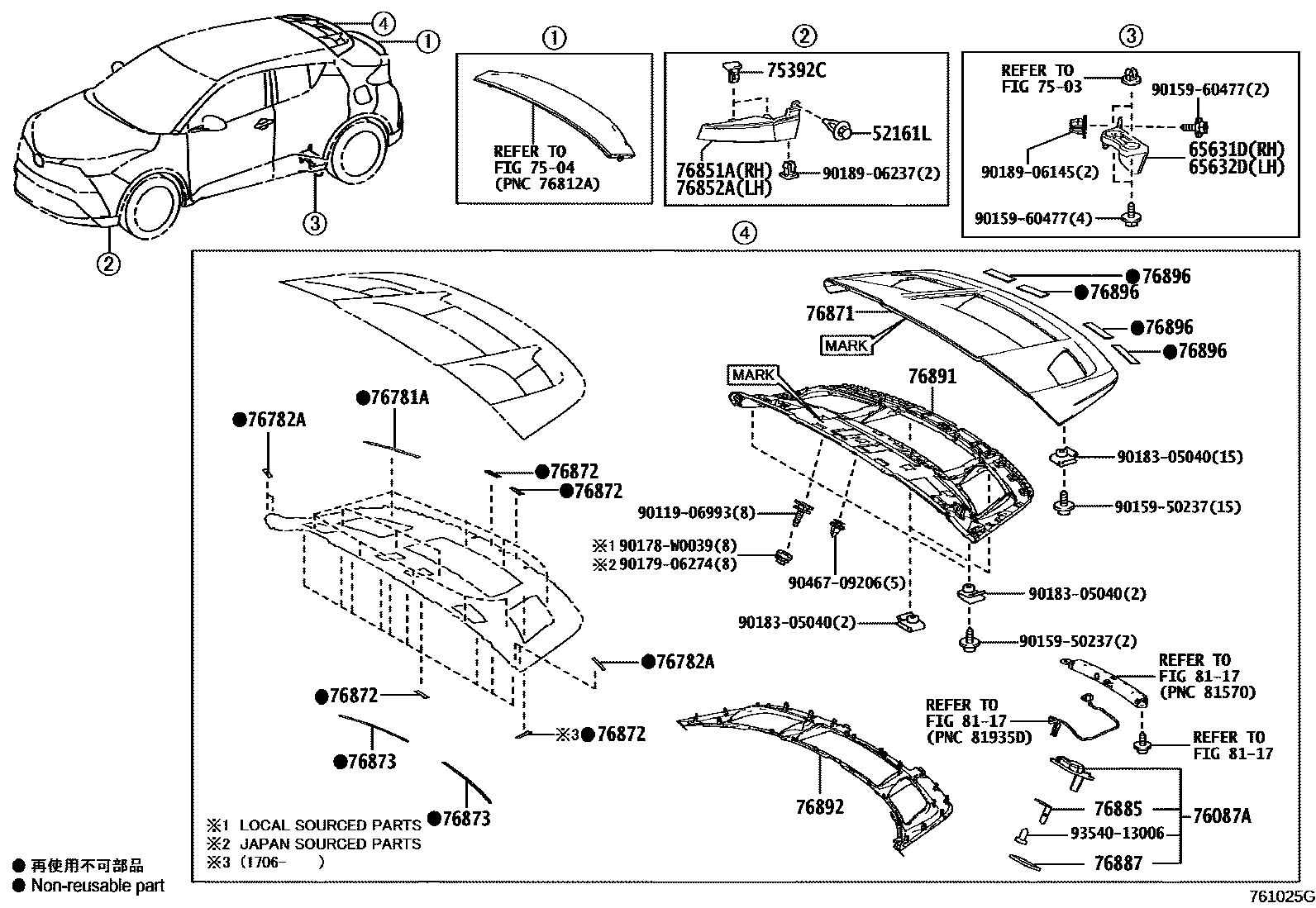

Toyota C-HR (TUP) — MUDGUARD & SPOILER

52161LPIECE, FRONT SPOILER

main52161-02030iNGX10,50,ZYX10¥140201909

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-F4010iNGX10,50201610-201909

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-F4010iNGX10,50,ZYX10201610-201909

7503

7504

75392CRETAINER, OUTSIDE MOULDING

main75392-35200iNGX10,50,ZYX10¥130201909

76087ASPOILER SUB-ASSY, REAR SIDE

main76895-F4010iNGX10,50201610-201909

76781ATAPE, REAR SPOILER, UPPER NO.1

main76781-F4010iNGX10,50201610-201909

L=170

76782ATAPE, REAR SPOILER, UPPER NO.2

main76782-F4010iNGX10,50201610-201909

RH & LH,L=40

76851ACOVER, FRONT SPOILER, RH

main76851-F4010iNGX10,50,ZYX10201909

76852ACOVER, FRONT SPOILER, LH

main76852-F4010iNGX10,50,ZYX10201909

76871SPOILER, REAR

main76871-10150iNGX10,50,ZYX10201711-201909

PAINT REQ.,MARK=76871-10140

main76871-F4900iNGX10,50,ZYX10201711-201909

PAINT REQ.,MARK=76871-F4010

main76871-F4900iNGX10,50201610-201711

PAINT REQ.

76872PROTECTOR, REAR SPOILER, NO.1

main76872-F4010iNGX10,50201610-201909

L=40

76873PROTECTOR, REAR SPOILER, NO.2

main76873-F4010iNGX10,50201610-201909

L=255.5

76885RETAINER, REAR SPOILER, NO.5

main76885-F4010iNGX10,50201610-201909

76887SEAL, REAR SPOILER

main76887-F4010iNGX10,50201610-201909

76891SPOILER, REAR NO.1

main76891-10020iNGX10,50,ZYX10201711-201909

MARK=76891-10020

main76891-F4010iNGX10,50201610-201711

main76891-F4010iNGX10,50201711-201909

MARK=76891-F4010

76892SPOILER, REAR NO.2

main76892-F4010iNGX10,50201610-201909

76896PROTECTOR, REAR SPOILER, NO.6

main76896-F4010iNGX10,50201610-201909

8117

9011906993

main90119-06993¥80

9015950237

main90159-50237¥90

9015960477

main90159-60477¥70

90178W0039

main90178-W0039¥60

9017906274

main90179-06274¥70

9018305040

main90183-05040¥80

9018906145

main90189-06145¥80

9018906237

main90189-06237¥100

9046709206

main90467-09206¥80

9354013006

main93540-13006¥200

30 parts on this diagram · 1 diagram in section
