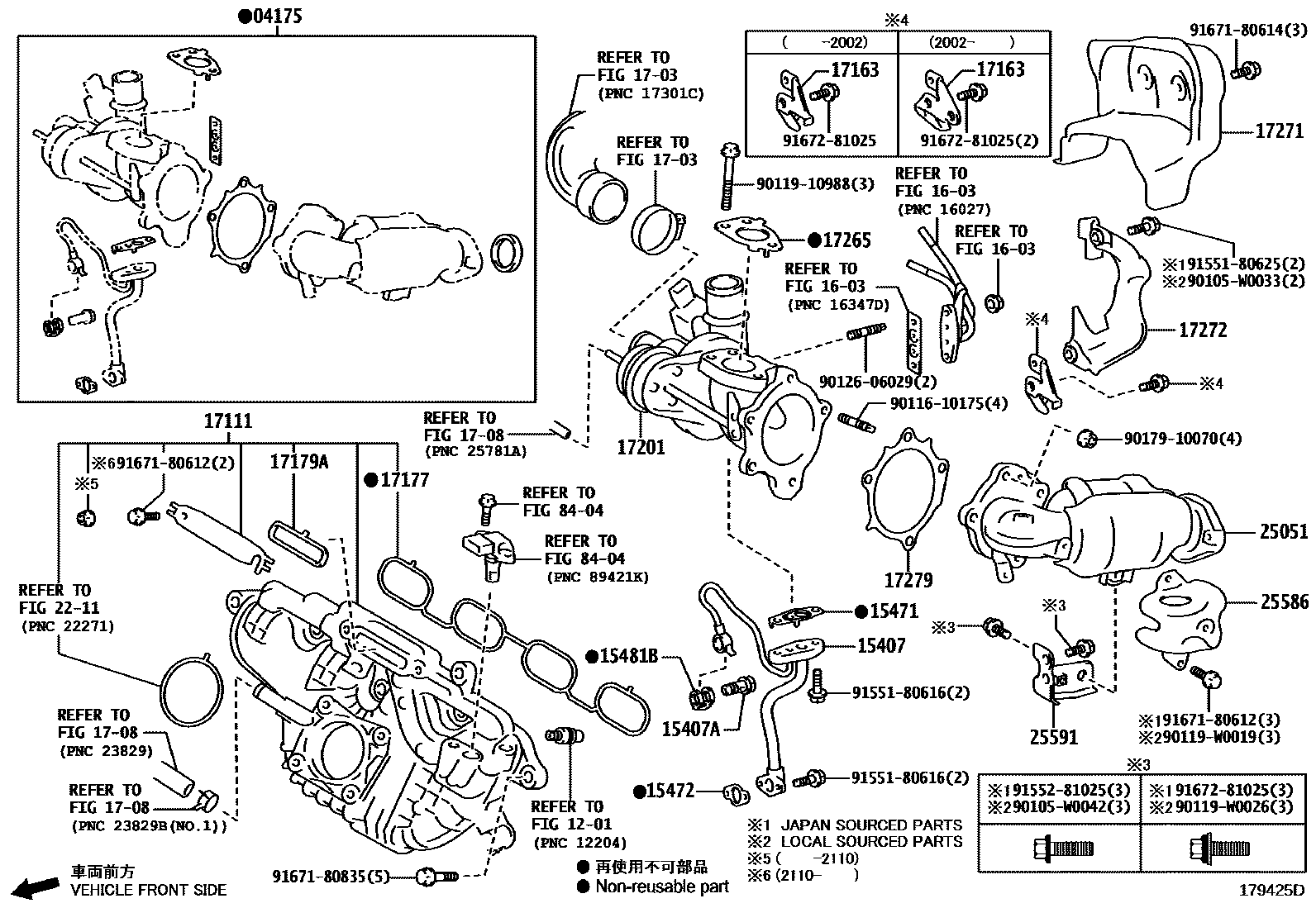

Toyota C-HR (TUP) — MANIFOLD
04175GASKET KIT, TURBOCHARGER
1201
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
15481BGASKET(FOR UNION BOLT NO.1)
1603
1703
1708
17111MANIFOLD, INTAKE
(L)
(L)
(J)
(J)
17163BRACKET, HEAT INSULATOR, NO.1
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
17179AGASKET, INTAKE MANIFOLD, NO.2
(L)
(J)
17201TURBOCHARGER SUB-ASSY
17265GASKET, TURBOCHARGER
17271INSULATOR, TURBO, NO.1
17272INSULATOR, TURBO, NO.2
17279GASKET, TURBINE OUTLET ELBOW
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=*413
*114=*413
*114=*464
*114=*464
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25591BRACKET, MANIFOLD SUPPORT
8404
90105W0033
90105W0042
main90105-W0042
9011610175
9011910988
90119W0019
90119W0026
main90119-W0026
9012606029
9017910070
9155180616
9155180625
9155281025
9167180612
9167180614
9167180835
9167281025
39 parts on this diagram · 4 diagrams in section
