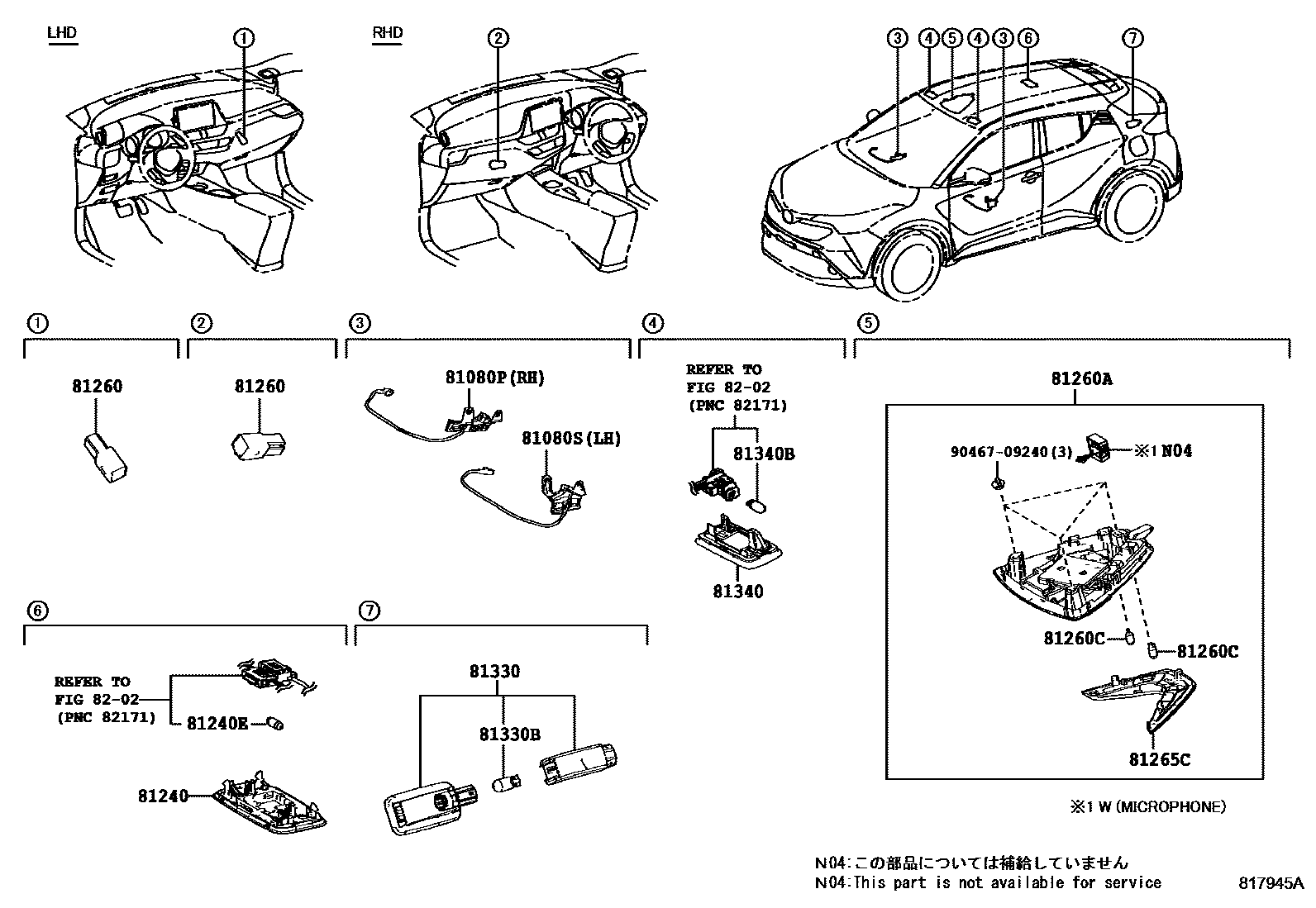

Toyota C-HR (TUP) — INTERIOR LAMP
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
EU BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#,8#
BLACK,TRIM2#
81240LAMP ASSY, ROOM, NO.1
81240EBULB, ROOM LAMP, NO.2
12V 8W
12V 8W
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
LT.GRAY,TRIM23
LT.GRAY,TRIM21
BLACK,TRIM20
BLACK,TRIM22
LT.GRAY,TRIM23,41
LT.GRAY,TRIM21
BLACK,TRIM22,40
BLACK,TRIM20
81260CBULB(FOR MAP LAMP)
12V 5W
12V 5W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
12V 5W
12V 5W
81340LAMP ASSY, VANITY
SUN VISOR-WITH(*DRP MIRROR & LAMP)
81340BBULB (FOR VANITY LAMP)
12V 8W
12V 8W,SUN VISOR-WITH(*DRP MIRROR & LAMP)
12V 8W
8202
9046709240
14 parts on this diagram · 1 diagram in section
