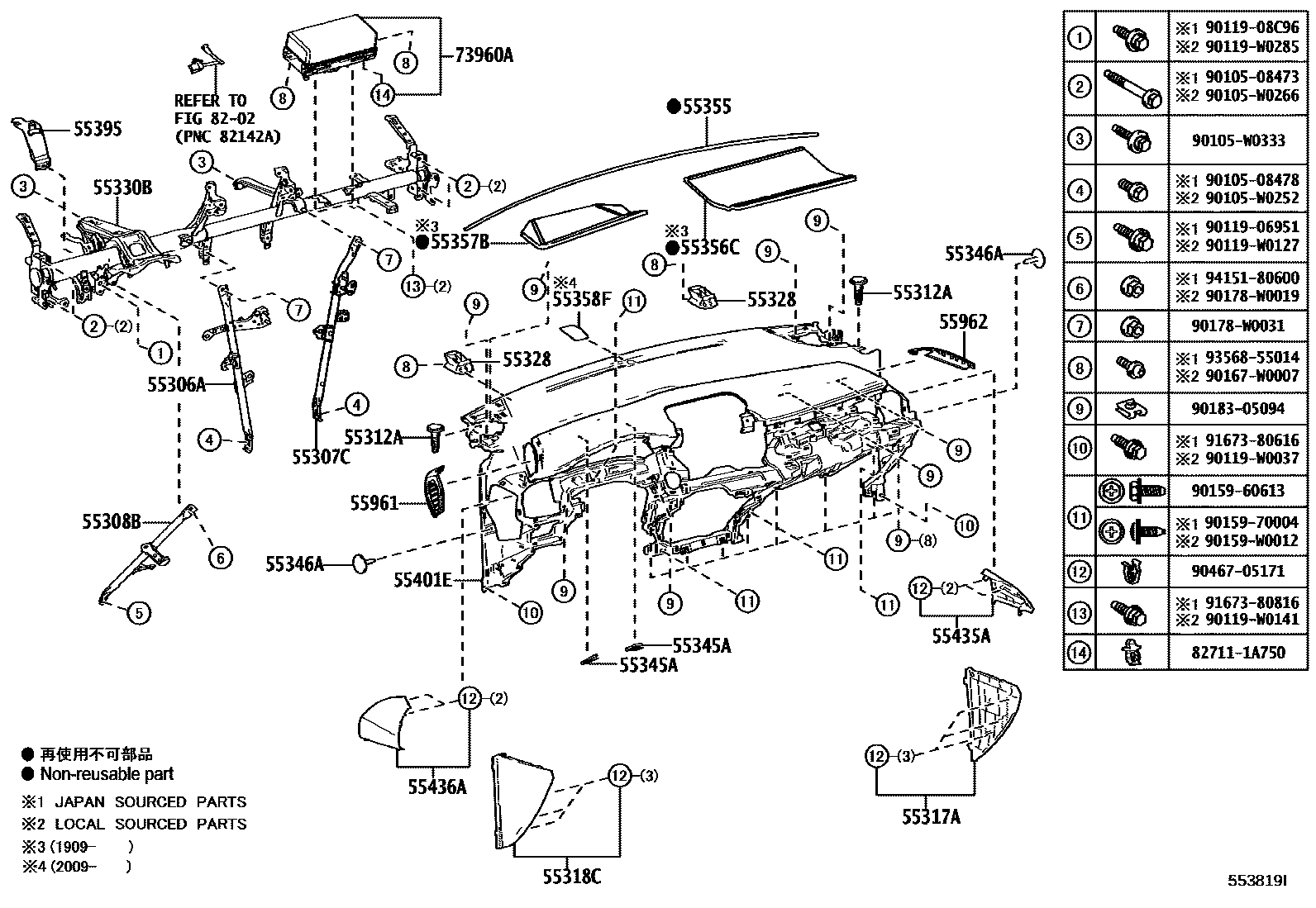

Toyota C-HR (TUP) — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-F4020iNGX10,50..LHD201610-201909

main55306-F4030iNGX10,50..RHD201610-201909

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-F4010iNGX10,50,ZYX10..LHD201610-201909

main55307-F4020iNGX10,50..RHD201610-201909

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-F4020iNGX10,50..LHD201610-201812

main55308-F4021iNGX10,50..LHD201812-201909

main55308-F4030iNGX10..RHD201610-201909

55312ACLIP, INSTRUMENT PANEL

main52161-02030iNGX10,50,ZYX10¥140201610-201909

55317APANEL, INSTRUMENT SIDE, RH

main55317-F4010-C0iNGX10,50..LHD201610-201805

MOROCCO SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50..RHD201610-201805

EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50..RHD201610-201805

ALGERIA SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50..RHD201610-201805

JORDAN SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50..RHD201610-201805

TAIWAN SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50..RHD201610-201805

MIDDLE & NEAR EAST SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C0iNGX10,50..RHD201610-201805

EGYPT SPEC,EU BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX50..LHD..E;NGX10..LHD..CVT201805-201909

EGYPT SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50..RHD201805-201909

BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50..RHD201805-201909

MOROCCO SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50..RHD201805-201909

ALGERIA SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50..RHD201805-201909

TAIWAN SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50..RHD201805-201909

MIDDLE & NEAR EAST SPEC,BLACK,TRIM2#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZYX10..D,N201909

BLACK,TRIM2#,4#

sub55317-F4010

main55317-F4010-C1iNGX10,50,ZYX10..D,N201909

BLACK,TRIM2#,4#,8#

sub55317-F4010

main55317-F4020-C0iNGX10,50..LHD201610-201805

EU BLACK,TRIM2#

main55317-F4020-C1iNGX10,50..LHD201805-201909

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-F4010-C0iNGX10,50..LHD201610-201805

EU BLACK,TRIM2#

main55318-F4010-C0iNGX10,50..LHD201610-201805

SOUTH AFRICA SPEC,EU BLACK,TRIM2#

main55318-F4010-C1iNGX10,50..RHD201805-201909

BLACK,TRIM2#

main55318-F4010-C1iNGX10,50..RHD201805-201909

SOUTH AFRICA SPEC,BLACK,TRIM2#

main55318-F4010-C1iNGX10,50..LHD..E201909

BLACK,TRIM2#,4#,8#

main55318-F4010-C1iNGX10,50..LHD..E201909

BLACK,TRIM2#,4#

main55318-F4020-C0iNGX10,50..RHD201610-201805

EU BLACK,TRIM2#

sub55318-F4020

main55318-F4020-C1iNGX10..RHD..E201805-201909

BLACK,TRIM2#

sub55318-F4020

main55318-F4020-C1iNGX10..RHD..(D,N)201909

BLACK,TRIM2#,4#,8#

sub55318-F4020

55328PIN, INSTRUMENT PANEL, NO.1

main55328-F4030iNGX10,50201610-201909

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-F4020iNGX10..LHD..6F201610-201909

main55330-F4030iNGX10..RHD201610-201909

main55330-F4050iNGX10,50,ZYX10..LHD..CVT201610-201909

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iNGX10,50¥90201610-201909

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-05161-C0iNGX10,50201610-201808

BLACK,(J)

sub90467-05161¥90

main90467-05161-C9iNGX10,50201808-201909

BLACK,(J)

sub90467-05161¥90

main90467-W0001-C0iNGX10,50,ZYX10201610-201909

BLACK,(L)

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-F4010iNGX10,50201610-201909

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-F4020iNGX10,50,ZYX10..E201909

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-F4010iNGX10,50,ZYX10..E201909

55358FPROTECTOR, EDGE

main55358-F4010iNGX10,50,ZYX10202009

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-F4010iNGX10,50,ZYX10..LHD201610-201909

main55395-F4020iNGX10,50..RHD¥930201610-201909

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-F4020-C0iNGX10,50..LHD..N201610-201804

DEEP BLUE,TRIM20

sub55401-F4021

main55401-F4020-C1iNGX10,50..LHD..N201610-201804

EU BLACK,TRIM2#

sub55401-F4021

main55401-F4020-C1iNGX10,50..LHD..N201610-201804

EU BLACK,TRIM20

sub55401-F4021

main55401-F4020-C2iNGX10,50..LHD..E201610-201804

LICORICE,TRIM2#

sub55401-F4021

main55401-F4021-C3iNGX10,50..LHD..E201805-201909

LICORICE,TRIM2#

sub55401-F4021

main55401-F4021-C4iNGX10,50..LHD..(D,N)201805-201903

BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..CVT..N201909

LEBANON SPEC,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..CVT..N201909

LEBANON SPEC,BLACK,TRIM20,21

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..CVT..N201909

AUDIO-RADIO LESS,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..CVT..N201909

AUDIO-CD & USB & *BT, FOR GENERAL,BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..CVT..N201909

AUDIO-CD & USB & *BT, FOR GENERAL,BLACK,TRIM20,21

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..N201909

BLACK,TRIM20,21

sub55401-F4021

main55401-F4021-C5iNGX10..LHD..N201903-201909

BLACK,TRIM2#

sub55401-F4021

main55401-F4021-C6iZYX10..E201909

BLACK/ORCHID BROWN,TRIM22,23,4#

sub55401-F4021

main55401-F4021-C6iZYX10..E201909

LEBANON SPEC,BLACK/ORCHID BROWN,TRIM22,23,4#

sub55401-F4021

main55401-F4021-C6iZYX10..E201909

AUDIO-CD & USB & *BT, FOR GENERAL,BLACK/ORCHID BROWN,TRIM22,23,4#

sub55401-F4021

main55401-F4021-C7iZYX10..E201909

BLACK/BLUE,TRIM24

sub55401-F4021

main55401-F4021-C7iZYX10..E201909

AUDIO-CD & USB & *BT, FOR GENERAL,BLACK/BLUE,TRIM24,8#

sub55401-F4021

main55401-F4021-C7iNGX50..E201909

LEBANON SPEC,BLACK/BLUE,TRIM24,8#

sub55401-F4021

main55401-F4040-C1iNGX10,50..RHD..(D,N)201610-201805

EU BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C2iNGX10,50..RHD..E201610-201805

LICORICE,TRIM2#

sub55401-F4040

main55401-F4040-C3iNGX10,50..RHD..E201805-201909

LICORICE,TRIM2#

sub55401-F4040

main55401-F4040-C4iNGX10,50..RHD..(D,N)201805-201903

BLACK,TRIM2#

sub55401-F4040

main55401-F4040-C5iNGX10,50..RHD..(D,N)201903-201909

BLACK,TRIM2#

sub55401-F4040

main55401-F4090-C4iZYX10..N201909

BLACK,TRIM20,21

sub55401-F4090

main55401-F4090-C4iZYX10..N201909

AUDIO-*DA, FOR GCC,BLACK,TRIM20,21

sub55401-F4090

main55401-F4090-C4iZYX10..N201909

AUDIO-*DA, FOR GCC,BLACK,TRIM2#

sub55401-F4090

main55401-F4090-C4iNGX10,50..LHD..N201909

BLACK,TRIM2#

sub55401-F4090

main55401-F4090-C5iNGX50..E201909

BLACK/ORCHID BROWN,TRIM2#,4#

sub55401-F4090

main55401-F4090-C5iNGX50..E201909

BLACK/ORCHID BROWN,TRIM22,23,4#

sub55401-F4090

main55401-F4090-C5iNGX50..E201909

AUDIO-*DA, FOR GCC,BLACK/ORCHID BROWN,TRIM22,23,4#

sub55401-F4090

main55401-F4090-C6iNGX10..LHD..E201909

BLACK/BLUE,TRIM8#

sub55401-F4090

main55401-F4090-C6iNGX10..LHD..E201909

AUDIO-*DA, FOR GCC,BLACK/BLUE,TRIM24

sub55401-F4090

main55401-F4100-C0iNGX10..RHD..(D,N)201909

BLACK/SOFT BLACK,TRIM2#

main55401-F4100-C0iNGX10..RHD..(D,N)201909

BLACK/SOFT BLACK,TRIM20,21

main55401-F4100-C1iNGX10..RHD..E201909

BLACK/ORCHID BROWN,TRIM22,23,4#

main55401-F4100-C2iNGX10..RHD..E201909

BLACK/BLUE,TRIM8#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-F4010-C0iNGX10,50201610-201805

EU BLACK,TRIM2#

sub55435-F4010

main55435-F4010-C1iNGX10,50..E201909

BLACK,TRIM2#,4#,8#

sub55435-F4010

main55435-F4010-C1iNGX10,50201805-201909

BLACK,TRIM2#

sub55435-F4010

main55435-F4010-C1iNGX10,50,ZYX10..D,N201909

BLACK,TRIM2#,4#

sub55435-F4010

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-F4010-C0iNGX10,50201610-201805

EU BLACK,TRIM2#

sub55436-F4010

main55436-F4010-C1iNGX10,50,ZYX10..D,N201805-201909

BLACK,TRIM2#

sub55436-F4010

main55436-F4010-C1iNGX10,50,ZYX10..D,N201909

BLACK,TRIM2#,4#

sub55436-F4010

main55436-F4010-C1iNGX10,50,ZYX10..D,N201909

BLACK,TRIM2#,4#,8#

sub55436-F4010

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-F4010-C0iNGX10,50..LHD201610-201805

EU BLACK,TRIM2#

main55961-F4010-C1iNGX10..LHD..E201909

BLACK,TRIM2#,4#,8#

main55961-F4010-C1iNGX10..LHD..E201805-201909

BLACK,TRIM2#

main55961-F4010-C1iNGX10..LHD..E201909

BLACK,TRIM2#,4#

main55961-F4020-C0iNGX10,50..RHD201610-201805

EU BLACK,TRIM2#

sub55961-F4020

main55961-F4020-C1iNGX10..RHD..E201909

BLACK,TRIM2#,4#,8#

sub55961-F4020

main55961-F4020-C1iNGX10,50..RHD201805-201909

BLACK,TRIM2#

sub55961-F4020

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-F4010-C0iNGX10,50..LHD201610-201805

EU BLACK,TRIM2#

main55962-F4010-C1iNGX50,ZYX10..E201909

BLACK,TRIM2#,4#,8#

main55962-F4010-C1iNGX10,50..LHD201805-201909

BLACK,TRIM2#

main55962-F4010-C1iNGX10..LHD..E201909

BLACK,TRIM2#,4#

main55962-F4020-C0iNGX10,50..RHD201610-201805

EU BLACK,TRIM2#

main55962-F4020-C1iNGX10,50..RHD201805-201909

BLACK,TRIM2#

main55962-F4020-C1iNGX10..RHD..(D,N)201909

BLACK,TRIM2#,4#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-F4010iNGX10,50201610-201911

sub73960-F4011

main73960-F4011iNGX10,50201809-201909

8202

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750¥60

9010508473

main90105-08473¥100

9010508478

main90105-08478¥80

90105W0252

main90105-W0252

90105W0266

main90105-W0266

90105W0333

main90105-W0333

9011906951

main90119-06951¥80

9011908C96

main90119-08C96¥80

90119W0037

main90119-W0037¥60

90119W0127

main90119-W0127¥80

90119W0141

main90119-W0141

90119W0285

main90119-W0285

9015960613

main90159-60613¥60

9015970004

main90159-70004¥60

90159W0012

main90159-W0012

90167W0007

main90167-W0007¥110

90178W0019

main90178-W0019¥110

90178W0031

main90178-W0031¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

46 parts on this diagram · 8 diagrams in section
