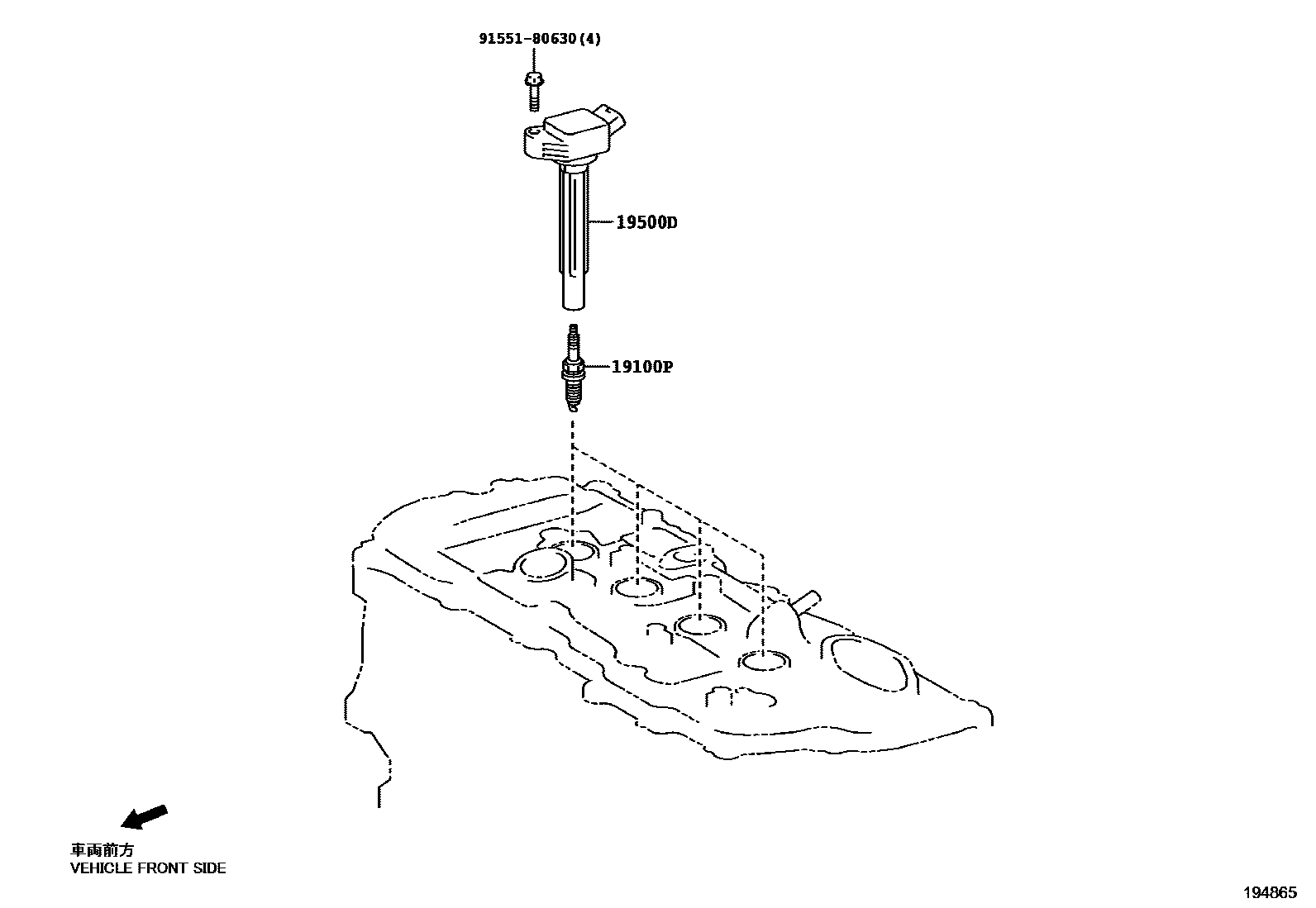

Toyota C-HR (TUP) — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01285i8NRFTS..NGX10,50¥2,100201610-201909

DILKAR8J9G

main90919-01285i8NRFTS..NGX10,50¥2,100201909

DILKAR8J9G

main90919-01298i2ZRFXE..ZYX10¥2,400201909

FC16HR-CY9,(J)

main90919-W1009i2ZRFXE..ZYX10201909

FC16HR-CY9,(L)

19500COIL ASSY, IGNITION

main90919-02272i2ZRFXE..ZYX10¥8,300201909

19500DCOIL, IGNITION, NO.1

main90919-02271i8NRFTS..NGX10,50¥7,500201610-201909

main90919-02271i8NRFTS..NGX10,50¥7,500201909

9155180630

main91551-80630¥60

4 parts on this diagram · 2 diagrams in section
