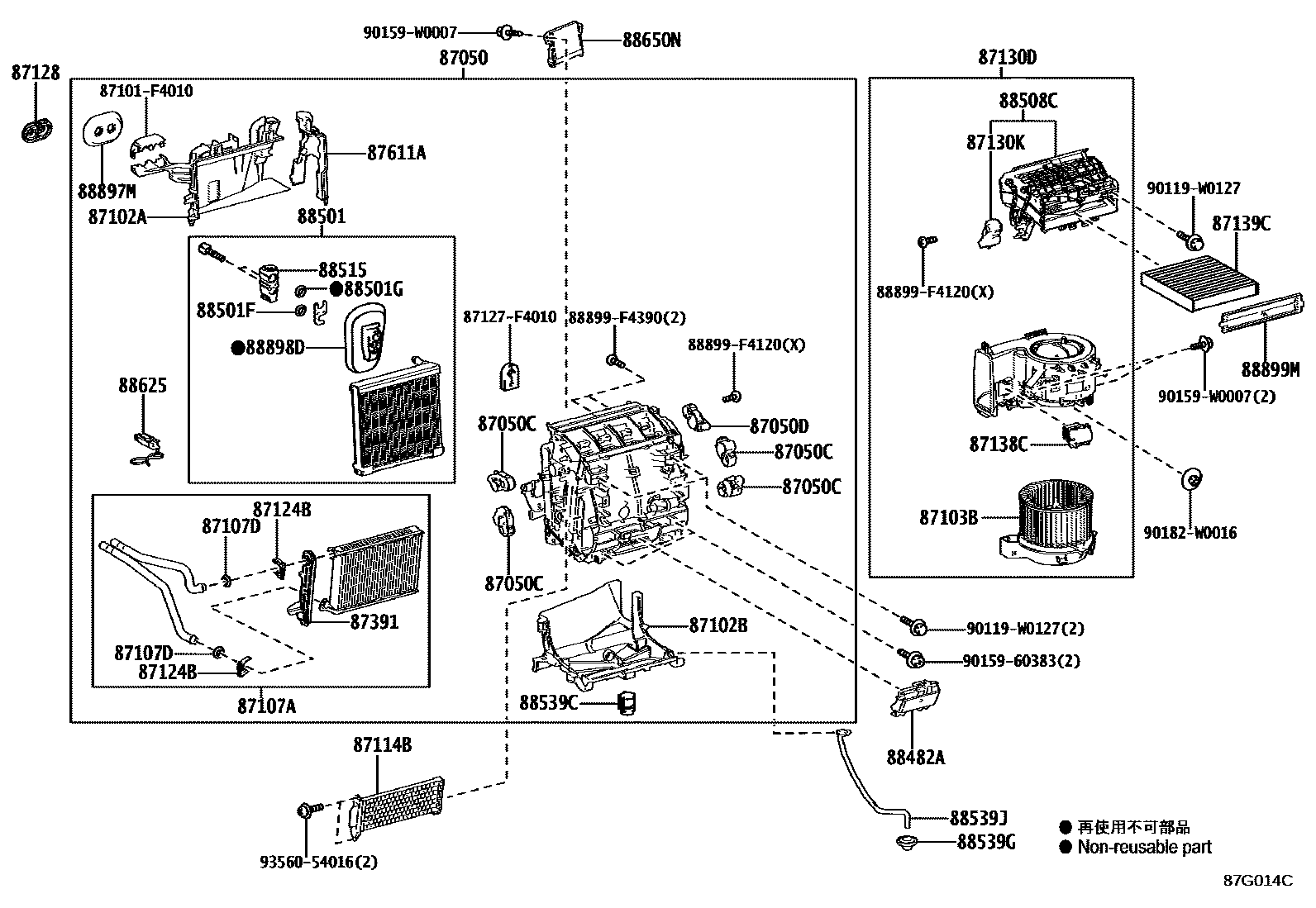

Toyota C-HR (TUP) — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1AUTO AIR CONDITIONER 0004 1MANUAL AIR CONDITIONER 0005 1AUTO AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0ZE30iZYX10201909

main87110-F4030iNGX10,50..LHD201610-201909

main87110-F4040iNGX10..LHD..D201610-201909

main87110-F4050iNGX10,50..RHD..(E,N)201610-201909

main87110-F4060iNGX10..RHD..D201610-201909

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-F4010iZYX10201909

main87106-F4040iNGX10..D201610-201909

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-F4050iNGX10,50201610-201909

87102ACASE SUB-ASSY, RADIATOR

main87102-F4030iNGX10,50..LHD201610-201909

main87102-F4040iNGX10..RHD201610-201909

87102BCASE SUB-ASSY, RADIATOR, NO.2

main87102-F4020iNGX10,50..RHD201610-201909

main87102-F4050iNGX10,50..LHD201610-201909

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-F4020iZYX10201909

main87103-F4030iNGX10,50..LHD201610-201909

main87103-F4040iNGX10..RHD201610-201909

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87050-F4030iNGX10,50..LHD201610-201909

main87050-F4040iNGX10..RHD201610-201909

main87107-F4020iZYX10201909

87107DRING, O (FOR HEATER RADIATOR UNIT)

main88899-F4090iNGX10,50201610-201909

ID=15.47,OD=22.27

87114BCOVER, HEATER

main87114-F4010iNGX10,50201610-201909

main87114-F4060iZYX10201909

87124BCLAMP, HEATER

main87124-F4010iZYX10201909

main87124-F4040iNGX10,50201610-201909

87128GROMMET, HEATER

main87128-28010iNGX10,50¥400201610-201909

87130DBLOWER ASSY

main87130-F4020iZYX10201909

main87130-F4040iNGX10,50..LHD201610-201909

main87130-F4050iNGX10..RHD201610-201909

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-F4030iZYX10201909

main87106-F4050iNGX10,50201610-201909

87138CRESISTOR, BLOWER

main87138-F4010iNGX10,50201610-201909

87139CFILTER, CLEAN AIR

main87139-58010iZYX10¥4,000201909

DEODORANT FILTER

main87139-F4010iNGX10,50¥5,800201610-201909

POLLEN FILTER,OE PART

main87139-F4020iZYX10201909

POLLEN FILTER,OE PART

87391COVER, BLOWER MOTOR

main87391-F4010iNGX10,50201610-201909

87611ACASE, HEAT EXCHANGER

main87611-F4010iNGX10,50..LHD201610-201909

main87611-F4020iNGX10..RHD201610-201909

88482ACOVER

main87114-F4031iNGX10,50201610-201909

main87114-F4070iZYX10201909

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-F4020iNGX10,50201610-201909

main88501-F4100iZYX10201909

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main88899-F4110iNGX10,50201610-201909

ID=10.82,OD=14.46

main90099-14120iZYX10¥0201909

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main88899-F4100iNGX10,50201610-201909

ID=14,OD=17.64

main90099-14121iZYX10201909

ID=13.4,OD=18.2

88508CFILTER SUB-ASSY, AIR

main88508-F4020iNGX10,50..LHD201610-201909

main88508-F4030iNGX10,50..RHD201610-201909

88515VALVE, COOLER EXPANSION

main88515-02560iZYX10201909

main88515-F4020iNGX10,50201610-201909

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88899-10110iNGX10,50201610-201909

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iNGX10,50¥220201610-201909

88539JHOSE, DRAIN COOLER

main88539-F4010iNGX10,50..LHD201610-201909

main88539-F4020iNGX10,50..RHD201610-201909

main88539-F4040iZYX10201909

88625THERMISTOR, COOLER, NO.1

main88620-02210iZYX10201909

main88898-F4010iNGX10,50201610-201909

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-F4012iNGX10..D201909

main88650-F4022iNGX10,50..N201909

main88650-F4040iNGX10..D201610-201707

sub88650-F4041

main88650-F4041iNGX10..D201708-201909

main88650-F4050iNGX10,50..N201610-201707

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

sub88650-F4051

main88650-F4051iNGX10,50..E201708-201909

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main88650-F4052iNGX10,50..E201909

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main88650-F4060iNGX10,50..N201610-201707

main88650-F4061iNGX10,50..N201708-201909

main88650-F4190iZYX10..E201909-202010

main88650-F4191iZYX10..E202010-202206

main88650-F4192iZYX10..E202207

main88650-F4210iZYX10..N201909-202010

main88650-F4211iZYX10..N202010-202206

main88650-F4212iZYX10..N202207

88897MGROMMET (FOR HEATER PIPE)

main87128-F4010iZYX10201909

main87128-F4020iNGX10,50201610-201909

88898DGROMMET

main87128-F4030iNGX10,50201610-201909

main88899-F4040iZYX10201909

88899MPLATE, COVER(FOR AIR FILTER)

main88548-F4011iNGX10,50201610-201909

main88899-F4011iZYX10201909

87101F4010BRACKET SUB-ASSY, VISCOUS HEATER NO.1

main87101-F4010

87127F4010PACKING, HEATER AIR DAMPER

main87127-F4010

88899F4120COVER, EVAPORATOR

main88899-F4120

88899F4390COVER, EVAPORATOR

main88899-F4390

90119W0127

main90119-W0127¥80

9015960383

main90159-60383¥70

90159W0007

main90159-W0007¥100

90182W0016

main90182-W0016¥110

9356054016

main93560-54016¥60

40 parts on this diagram · 5 diagrams in section
