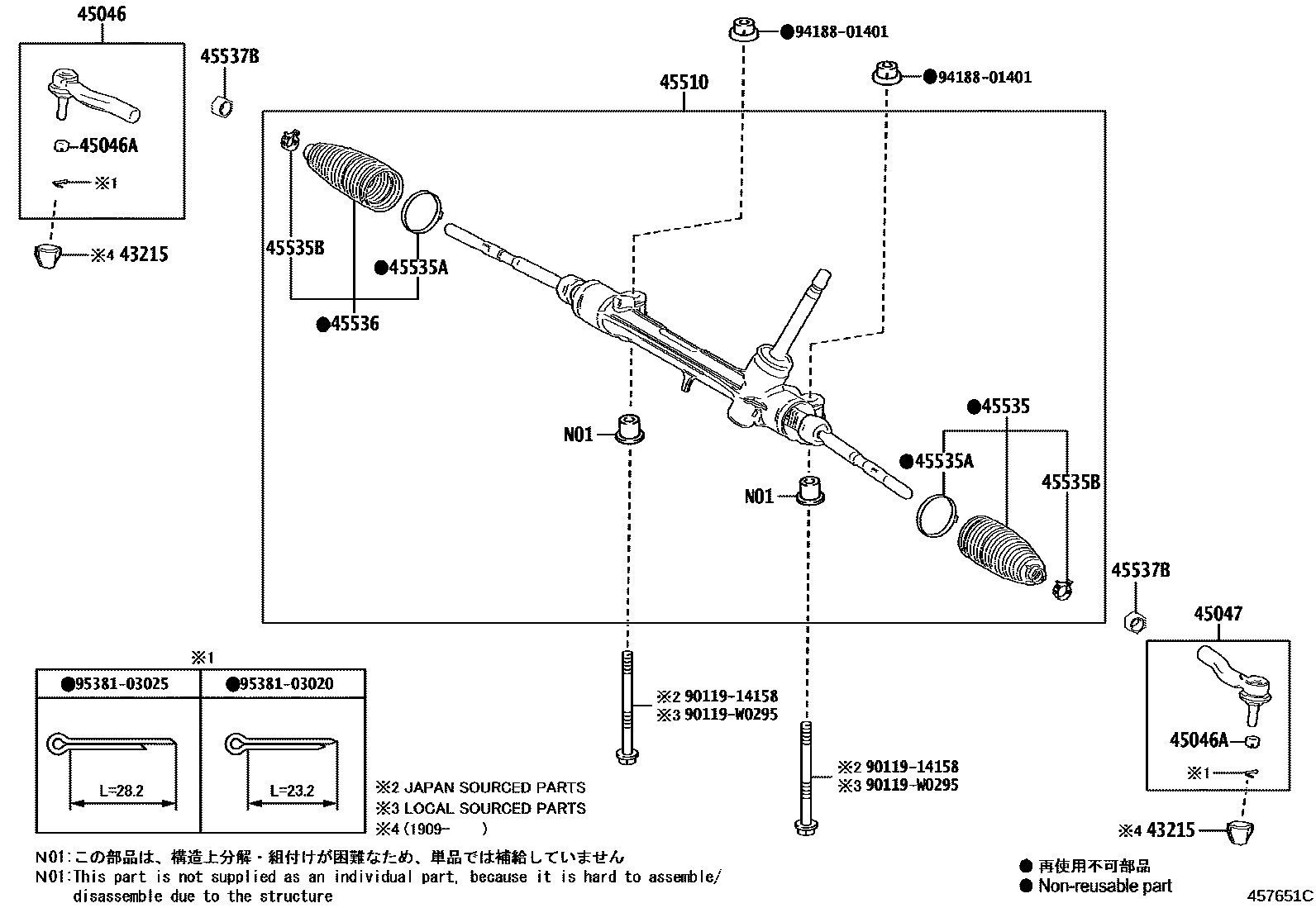

Toyota C-HR (TUP) — FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iNGX10,50,ZYX10¥210201909

45046END SUB-ASSY, TIE ROD, RH

main45046-F9010iNGX10,50201610-201909

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNGX10,50,ZYX10¥130201610-201909

45047END SUB-ASSY, TIE ROD, LH

main45047-F9010iNGX10,50201610-201909

45510GEAR ASSY, STEERING

main45510-F4010iNGX10,50..LHD201610-202309

sub45510-F4011

main45510-F4011iNGX10,50,ZYX10..LHD202310

main45510-F4020iNGX10..RHD201610-202309

sub45510-F4021

main45510-F4021iNGX10..RHD202310

45535BOOT, STEERING RACK, NO.1

main45535-F9010iNGX10,50201610-201909

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-F4010iNGX10,50201610-201909

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010iNGX10,50¥200201610-201909

45536BOOT, STEERING RACK, NO.2

main45535-F9010iNGX10,50201610-201909

45537BNUT, RACK END LOCK

main90178-16001iNGX10,50¥120201610-201909

9011914158

main90119-14158¥430

90119W0295

main90119-W0295

9418801401

main94188-01401¥190

9538103020

main95381-03020¥90

9538103025

main95381-03025¥130

15 parts on this diagram · 2 diagrams in section
