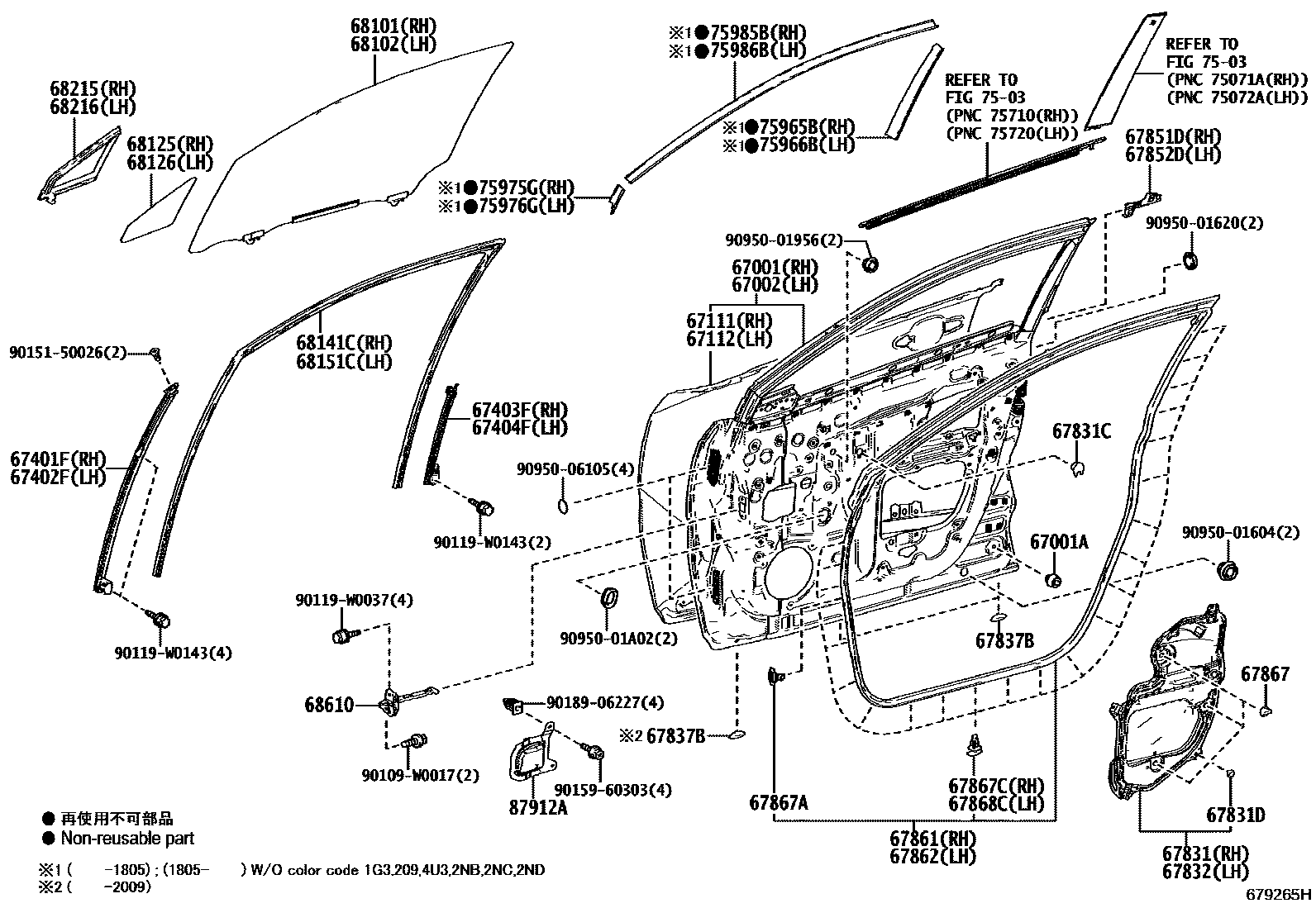

Toyota C-HR (TUP) — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831CCOVER, FRONT DOOR SERVICE HOLE
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
67851DSEAL, FRONT DOOR REAR OUTSIDE, RH
67852DSEAL, FRONT DOOR REAR OUTSIDE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CLIP, DOOR WEATHERSTRIP
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68610CHECK ASSY, FRONT DOOR
7503
75965BSTRIPE, FRONT DOOR NO.4 RH
0 OR 1PIECE,REF.ILL.
75966BSTRIPE, FRONT DOOR NO.4 LH
0 OR 1PIECE,REF.ILL.
75975GSTRIPE, FRONT DOOR, NO.2 RH
0 OR 1PIECE,REF.ILL.
75976GSTRIPE, FRONT DOOR, NO.2 LH
0 OR 1PIECE,REF.ILL.
75985BSTRIPE, FRONT DOOR, NO.3 RH
0 OR 1PIECE,REF.ILL.
75986BSTRIPE, FRONT DOOR, NO.3 LH
0 OR 1PIECE,REF.ILL.
87912APROTECTOR, OUTER MIRROR
RH
LH
90109W0017
90119W0037
90119W0143
main90119-W0143
9015150026
9015960303
9018906227
9095001604
9095001620
9095001956
9095001A02
9095006105
50 parts on this diagram · 2 diagrams in section
