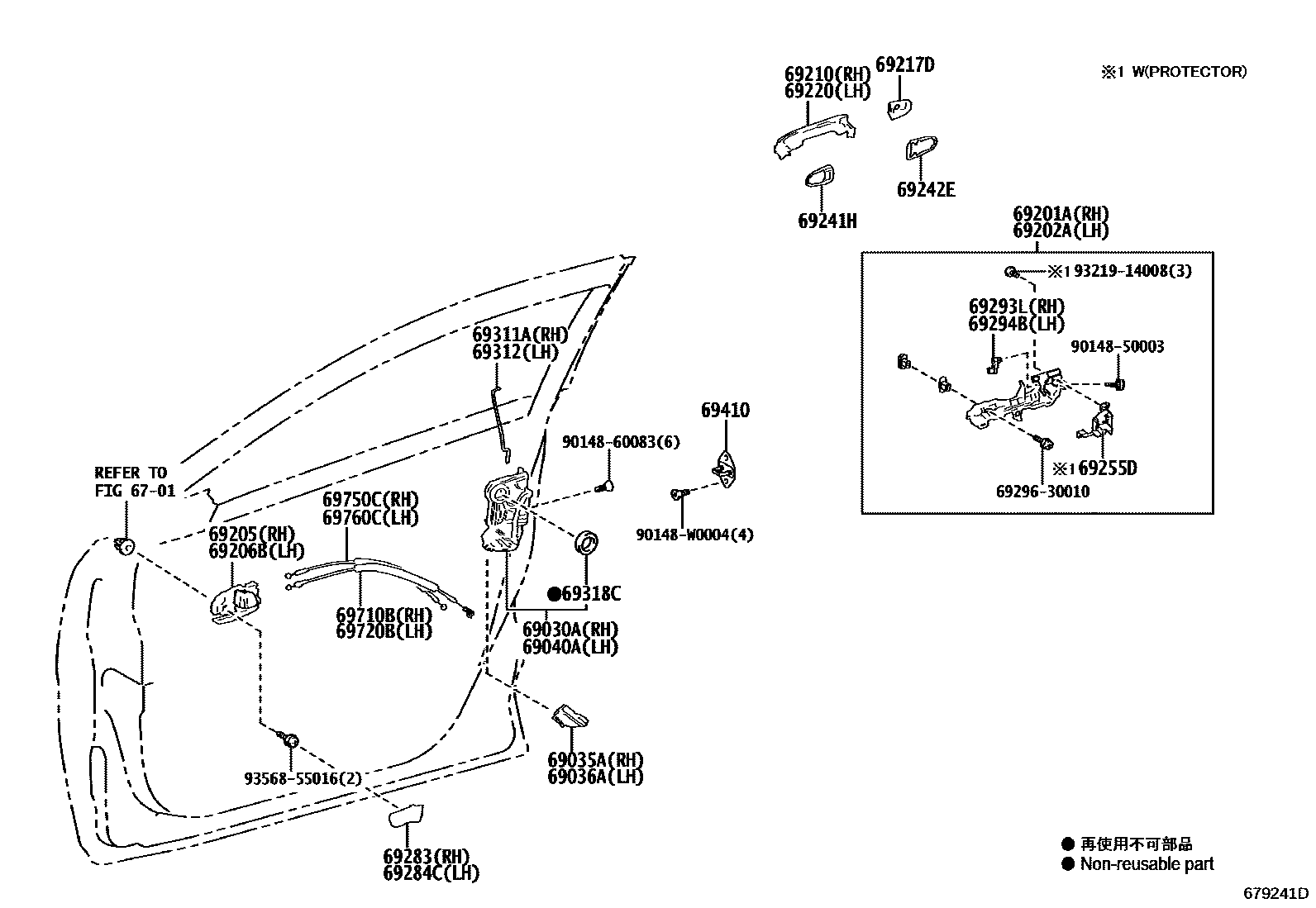

Toyota C-HR (TUP) — FRONT DOOR LOCK & HANDLE
6701
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
EU BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#,8#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2NA
PLATINUM WHITE PEARL MC.,089 ,2VP
SILVER ME.,1F7
GRAY ME.,1G3 ,2NB
METAL STREAM ME,1K0 ,2NK
CELESTITE GRAY ME.,1K3 ,2TH ,2TJ ,2XG
SILVER ME.,1L0 ,2VU
BLACK MC.,209 ,2ND
BLACK MC.,209 ,2TA ,2XH
RED MC.,2NE ,2NF ,3T3
EMOTIONAL RED 2,2TB ,3U5
DK. BROWN M.M.,2NC ,4U3
PHANTOM BROWN ME.,2TN ,4W9
ORANGE ME.,2TC ,4R8
YELLOW M.M.,2TM
RADIANT GREEN ME.,2NJ ,6W9
OXIDE BRONZE ME.,2TD ,2TK ,2XJ ,6X1
DK. TEAL M.M.,2YB ,785
NEBULA BLUE ME.,2NH ,8X2
NEBULA BLUE ME.,2NG ,2NH ,8X2
CYAN METALLIC,2RU ,2RV ,8W9
DEEP AMETHYST M.M.,2XE ,9AH
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
SUPER WHITE 2,040,DRIVER SIDE
WHITE PEARL CS.,070 ,2NA,DRIVER SIDE
PLATINUM WHITE PEARL MC.,089 ,2VP,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
GRAY ME.,1G3 ,2NB,DRIVER SIDE
METAL STREAM ME,1K0 ,2NK,DRIVER SIDE
CELESTITE GRAY ME.,1K3 ,2TH ,2TJ ,2XG,DRIVER SIDE
SILVER ME.,1L0 ,2VU,DRIVER SIDE
BLACK MC.,209 ,2TA ,2XH,DRIVER SIDE
BLACK MC.,209 ,2ND,DRIVER SIDE
RED MC.,2NE ,2NF ,3T3,DRIVER SIDE
EMOTIONAL RED 2,2TB ,3U5,DRIVER SIDE
DK. BROWN M.M.,2NC ,4U3,DRIVER SIDE
PHANTOM BROWN ME.,2TN ,4W9,DRIVER SIDE
ORANGE ME.,2TC ,4R8,DRIVER SIDE
YELLOW M.M.,2TM,DRIVER SIDE
RADIANT GREEN ME.,2NJ ,6W9,DRIVER SIDE
OXIDE BRONZE ME.,2TD ,2TK ,2XJ ,6X1,DRIVER SIDE
DK. TEAL M.M.,2YB ,785,DRIVER SIDE
NEBULA BLUE ME.,2NG ,2NH ,8X2,DRIVER SIDE
NEBULA BLUE ME.,2NH ,8X2,DRIVER SIDE
CYAN METALLIC,2RU ,2RV ,8W9,DRIVER SIDE
DEEP AMETHYST M.M.,2XE ,9AH,DRIVER SIDE
SUPER WHITE 2,040,PASSENGER SIDE
WHITE PEARL CS.,070 ,2NA,PASSENGER SIDE
PLATINUM WHITE PEARL MC.,089 ,2VP,PASSENGER SIDE
SILVER ME.,1F7,PASSENGER SIDE
GRAY ME.,1G3 ,2NB,PASSENGER SIDE
METAL STREAM ME,1K0 ,2NK,PASSENGER SIDE
CELESTITE GRAY ME.,1K3 ,2TH ,2TJ ,2XG,PASSENGER SIDE
SILVER ME.,1L0 ,2VU,PASSENGER SIDE
BLACK MC.,209 ,2TA ,2XH,PASSENGER SIDE
BLACK MC.,209 ,2ND,PASSENGER SIDE
RED MC.,2NE ,2NF ,3T3,PASSENGER SIDE
EMOTIONAL RED 2,2TB ,3U5,PASSENGER SIDE
DK. BROWN M.M.,2NC ,4U3,PASSENGER SIDE
PHANTOM BROWN ME.,2TN ,4W9,PASSENGER SIDE
ORANGE ME.,2TC ,4R8,PASSENGER SIDE
YELLOW M.M.,2TM,PASSENGER SIDE
RADIANT GREEN ME.,2NJ ,6W9,PASSENGER SIDE
OXIDE BRONZE ME.,2TD ,2TK ,2XJ ,6X1,PASSENGER SIDE
DK. TEAL M.M.,2YB ,785,PASSENGER SIDE
NEBULA BLUE ME.,2NH ,8X2,PASSENGER SIDE
NEBULA BLUE ME.,2NG ,2NH ,8X2,PASSENGER SIDE
CYAN METALLIC,2RU ,2RV ,8W9,PASSENGER SIDE
DEEP AMETHYST M.M.,2XE ,9AH,PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2NA
PLATINUM WHITE PEARL MC.,089 ,2VP
SILVER ME.,1F7
GRAY ME.,1G3 ,2NB
METAL STREAM ME,1K0 ,2NK
CELESTITE GRAY ME.,1K3 ,2TH ,2TJ ,2XG
SILVER ME.,1L0 ,2VU
BLACK MC.,209 ,2TA ,2XH
BLACK MC.,209 ,2ND
RED MC.,2NE ,2NF ,3T3
EMOTIONAL RED 2,2TB ,3U5
DK. BROWN M.M.,2NC ,4U3
PHANTOM BROWN ME.,2TN ,4W9
ORANGE ME.,2TC ,4R8
YELLOW M.M.,2TM
RADIANT GREEN ME.,2NJ ,6W9
OXIDE BRONZE ME.,2TD ,2TK ,2XJ ,6X1
DK. TEAL M.M.,2YB ,785
NEBULA BLUE ME.,2NG ,2NH ,8X2
NEBULA BLUE ME.,2NH ,8X2
CYAN METALLIC,2RU ,2RV ,8W9
DEEP AMETHYST M.M.,2XE ,9AH
PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69255DPROTECTOR, DOOR OUTSIDE HANDLE
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6929630010SCREW, DOOR INSIDE HANDLE
9014850003
9014860083
90148W0004
9321914008
9356855016
33 parts on this diagram · 1 diagram in section
