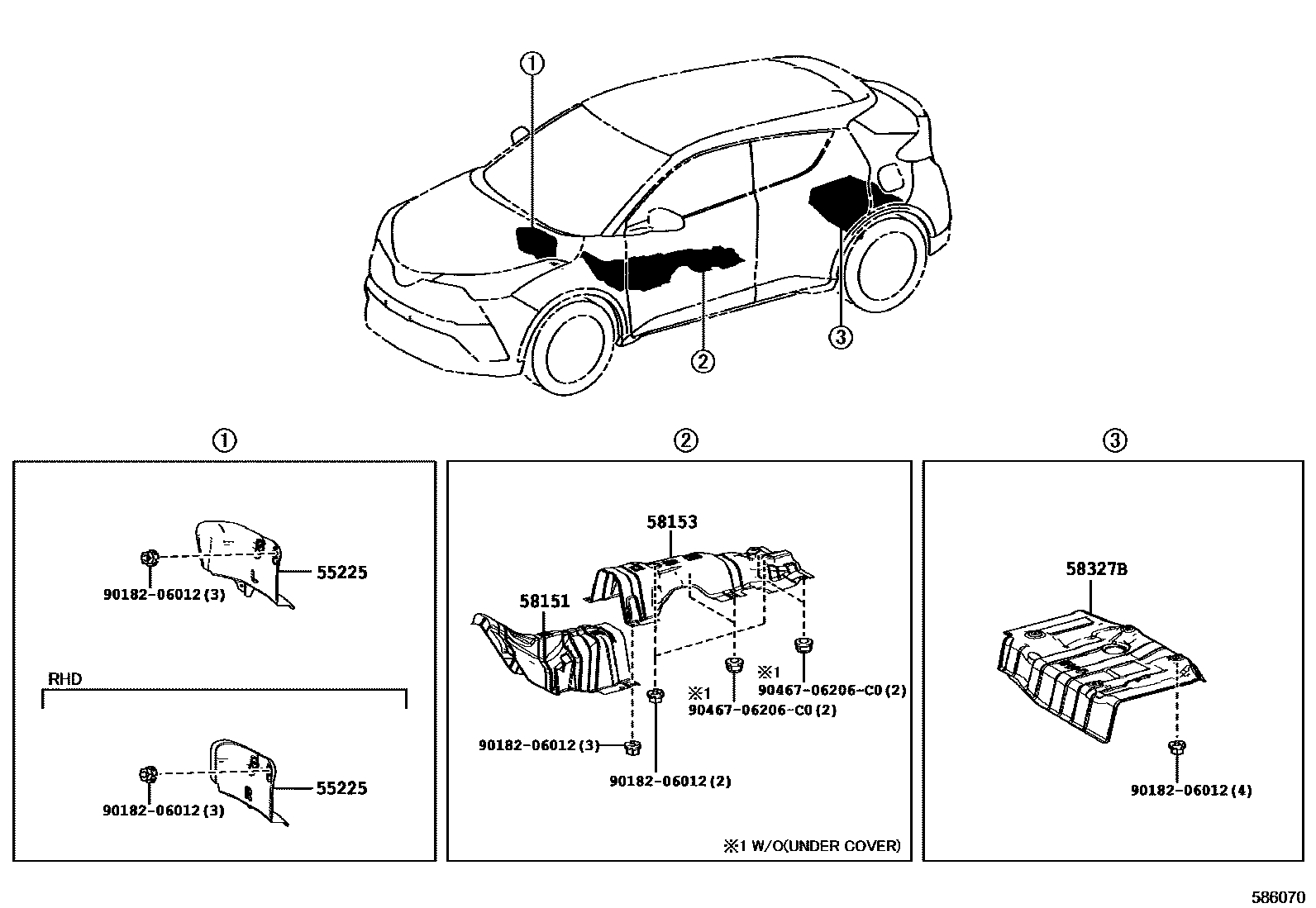

Toyota C-HR (TUP) — FLOOR INSULATOR

0001 1 0002 1

55225INSULATOR, DASH PANEL HEAT

main55225-F4010iNGX10,50..LHD201610-201909

main55225-F4010iNGX10,50..LHD201909

main55225-F4020iNGX10..RHD201909

main55225-F4020iNGX10,50..RHD201610-201909

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-02580iNGX10201805-201909

main58151-02580iNGX10201909

main58151-F4010iNGX10201610-201804

main58151-F4020iZYX10201909-202010

main58151-F4030iNGX50201909

main58151-F4030iNGX50201610-201909

main58151-F4090iZYX10202010

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-F4010iNGX10201610-201909

main58153-F4010iNGX10,ZYX10201909

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-F4010iNGX10,50201610-201903

sub58327-F4011

main58327-F4011iNGX10,50201904-201909

main58327-F4011iNGX10,50,ZYX10201909

9018206012

main90182-06012¥60

9046706206C0

main90467-06206C0

6 parts on this diagram · 2 diagrams in section
