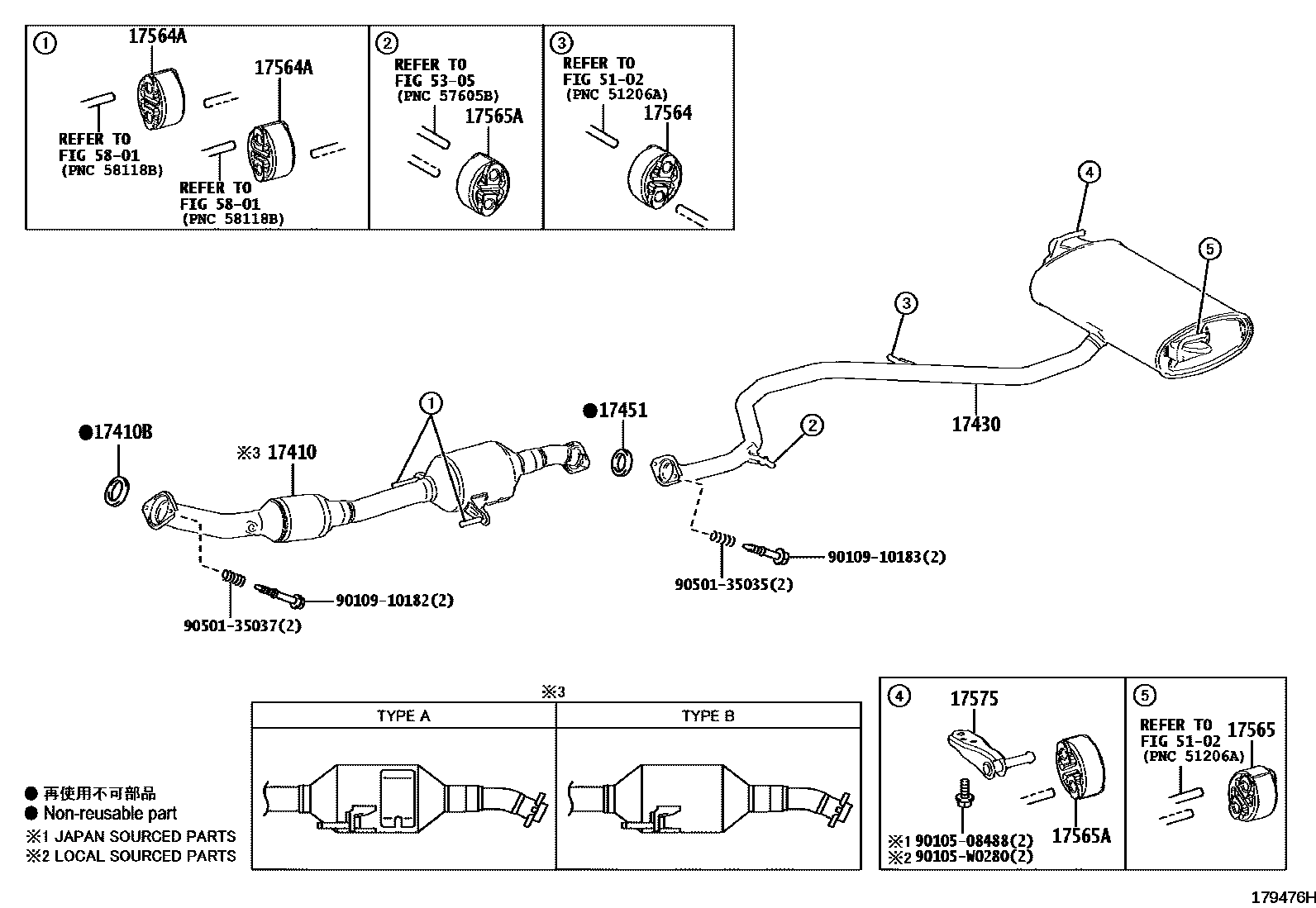

Toyota C-HR (TUP) — EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0TA90i2ZRFXE..ZYX10201909-202008

*114=TOYOTA/TL8/Y,TYPE A:REFER ILLUST.

main17410-0TA91i2ZRFXE..ZYX10202008-202303

*114=TOYOTA/TL8/Y,TYPE B:REFER ILLUST.

main17410-0TA92i2ZRFXE..ZYX10202303

*114=TOYOTA/TL8/Y

main17410-0Y380i8NRFTS..NGX10201610-201909

main17410-0Y390i8NRFTS..NGX50201610-201909

17410BGASKET, EXHAUST PIPE

main17451-0R010i8NRFTS..NGX10¥1,360201610-202010

main17451-0T090i2ZRFXE..ZYX10202010

main90917-06089i8NRFTS..NGX50¥500201610-201909

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T471i2ZRFXE..ZYX10201909

main17430-0Y160i8NRFTS..NGX10201610-201611

sub17430-0Y161

main17430-0Y161i8NRFTS..NGX10201611-201909

main17430-0Y170i8NRFTS..NGX50201610-201611

sub17430-0Y171

main17430-0Y171i8NRFTS..NGX50201611-201909

17451GASKET, EXHAUST PIPE

main17451-0J022i8NRFTS..NGX10¥720201610-202010

main17451-0T100i2ZRFXE..ZYX10202010

main90917-06089i8NRFTS..NGX50¥500201610-201909

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0T040i8NRFTS..NGX10201610-201909

17564ASUPPORT, CATALYTIC CONVERTER, RH

main17565-0J031i8NRFTS..NGX10¥680201610-201909

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0J031i8NRFTS,2ZRFXE..NGX10,50,ZYX10¥680201612-201909

main17566-0T020i8NRFTS..NGX10,50201610-201612

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0J031i8NRFTS..NGX50¥680201610-201909

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-0Y030i8NRFTS..NGX10,50201610-201909

5102

5305

5801

9010508488

main90105-08488¥80

90105W0280

main90105-W0280

9010910182

main90109-10182¥190

9010910183

main90109-10183¥190

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

18 parts on this diagram · 2 diagrams in section
