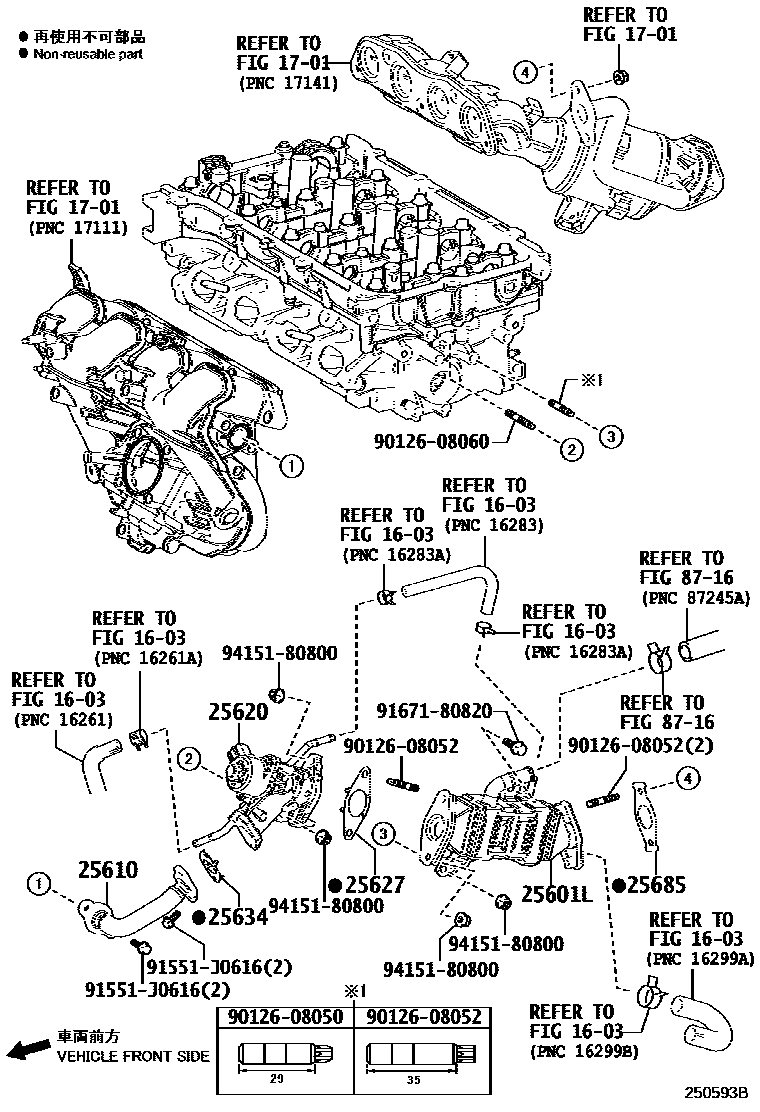

Toyota C-HR (TUP) — EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601LPIPE SUB-ASSY, EGR W/COOLER

main25601-37030i2ZRFXE..ZYX10201909-202107

sub25601-37060

sub16281-37190¥880

main25601-37060i2ZRFXE..ZYX10202107

25610PIPE ASSY, EGR

main25610-37030i2ZRFXE..ZYX10201909

25620VALVE ASSY, EGR

main25620-37150i2ZRFXE..ZYX10201909

25627GASKET, EGR VALVE

main25627-37020i2ZRFXE..ZYX10¥270201909

25634GASKET, EGR PIPE

main25634-37020i2ZRFXE..ZYX10¥270201909

25685GASKET, EGR COOLER, NO.1

main25685-37020i2ZRFXE..ZYX10¥210201909

8716

9012608050

main90126-08050¥80

9012608052

main90126-08052¥80

9012608060

main90126-08060¥210

91551J0616

main91551-J0616¥60

9167180820

main91671-80820¥80

9415180800

main94151-80800¥80

15 parts on this diagram · 1 diagram in section
