Toyota C-HR (TUP) — ENGINE OIL PUMP

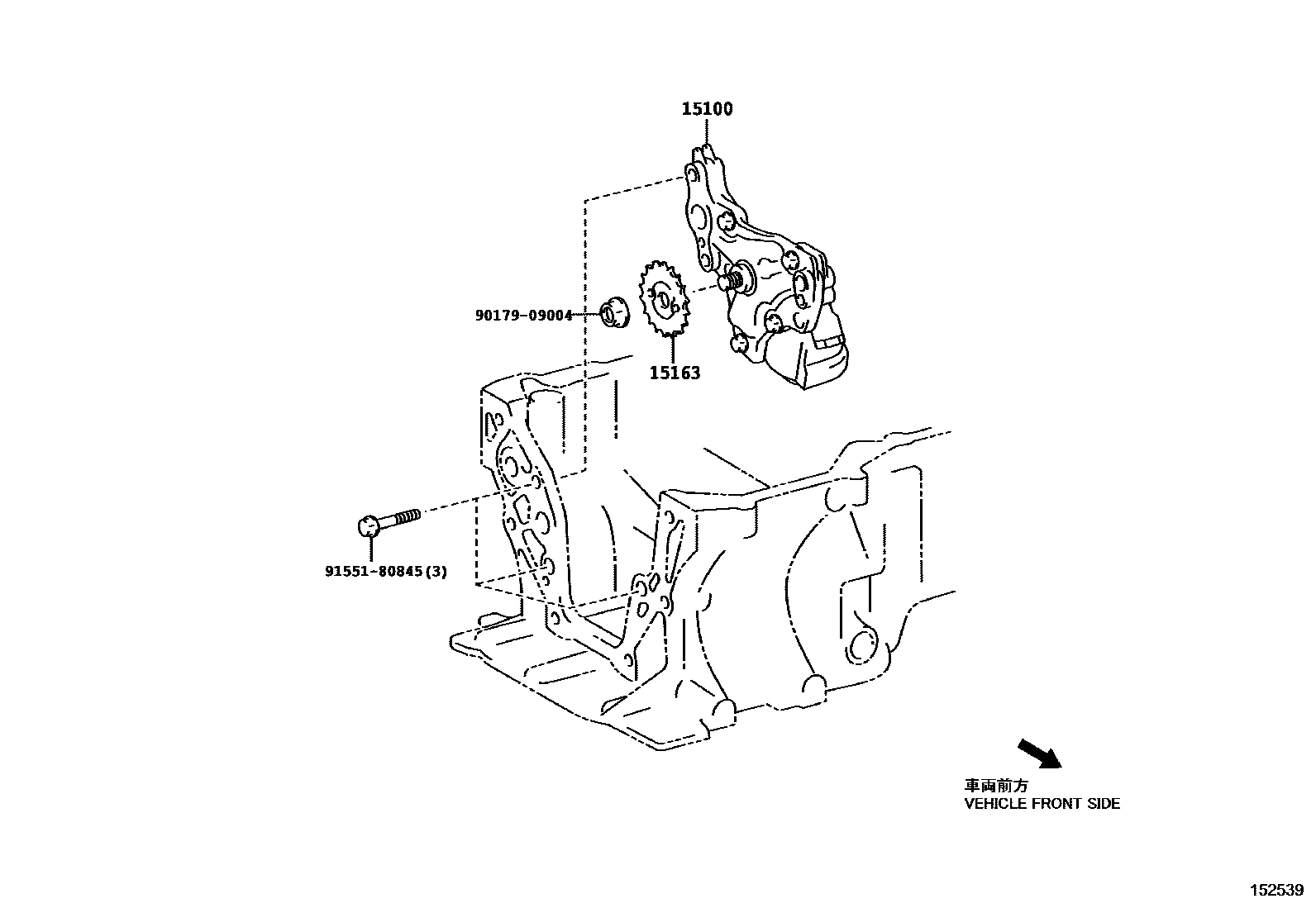

Parts diagram

15100PUMP ASSY, OIL

main15100-0T100i201909-202204

(L)

main15100-0T160i202205

(L)

main15100-37060i¥12,500201909-202107

(J)

sub15100-37070¥11,300

main15100-37070i¥11,300202108

(J)

main15100-47050i¥11,000201909

main15100-47050i¥11,000201610-201909

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i201909-202301

(L)

main15163-0T030i202301

(L)

main15163-28010i¥390201909

(J)

main15163-33010i¥540201610-201909

main15163-33010i¥540201909

9017909004

main90179-09004¥90

9155180845

main91551-80845¥110

4 parts on this diagram · 2 diagrams in section
